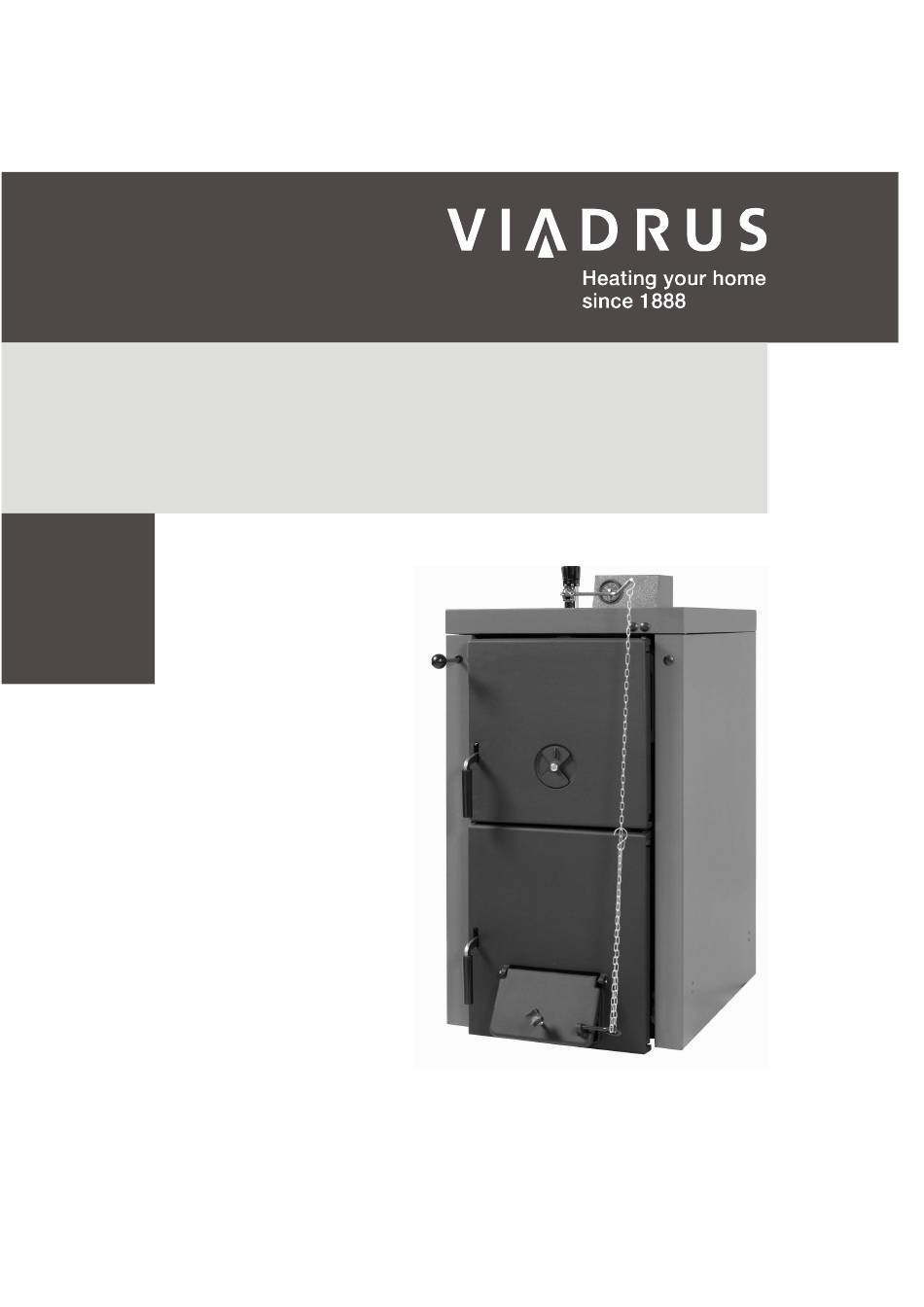

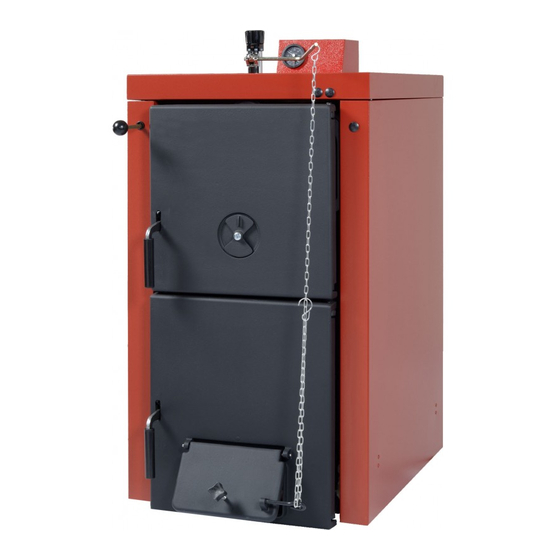

  • Page 1 VIADRUS U 22 C/D Manual for boiler operation and installation GB_2017_14 GB_2015_24...

  • Page 2: Table Of Contents

    Contents page Usage and advantages of the boiler ................................3 Technical data of the boiler ..................................3 Description........................................4 Construction of the boiler ................................... 4 Regulating and security elements ..............................7 Placing and installation ....................................7 Regulations and instructions ................................7 Placing possibilities ....................................

  • Page 3: Usage And Advantages Of The Boiler

    The boiler is produced as hot – water with natural and forced circulation of heat water and operational overpressure to 800 kPa (8 bar). The VIADRUS U 22 D boiler is different from the VIADRUS U 22 C boiler version by its enlargement of the stoke hole so that it is possible to burn even bigger clogs up to the average of 220 mm.

  • Page 4: Description

    At seven to ten – sectional size of the VIADRUS U 22 C boiler two tapes of medium sections are used: at the front part of the boiler the sections are without a molding and in the back part with a molding. The molding closes the burning space and carries back the flame and product of consumption from the back space to the front part of the boiler, i.e.
  • Page 5 Fig. №. 2 Design of the VIADRUS U 22 C boiler...
  • Page 6 Fig. №. 3 Design of the VIADRUS U 22 D boiler...

  • Page 7: Regulating And Security Elements

    The cleaning cover of the smoky chimney – pot located in its bottom part serves for cleaning the embedded waste product caused by burning. There are barriers of the smoky channel between the front and medium sections above the stoker hole of the boiler VIADRUS U 22 C. It serves for reducing the draw –...
  • Page 8 Section number A [mm] 1085 Fig. №. 4 Bedding dimensions Tab. №. 9 Grade of reaction to fire Examples of building materials and products included in the reaction to fire Grade of reaction to fire (Extract from EN 13501-1 + A1) A1 –...

  • Page 9: Order, Delivery And Assembly

    Order, delivery and assembly Order In the order the following is needed to be specified: Boiler design - VIADRUS U 22 C boiler - VIADRUS U 22 D boiler Boiler size. Demands on optional accessories. Delivery and accessories The boiler is delivered according to the order in a manner that a complete boiler drum is located on the palette and a covered boiler jacket is fixed on the side.

  • Page 10: Boiler Drum Installation

    5.3.1 Boiler drum installation Put the boiler drum on an embedding Put a sealing φ 90 x 60 x 3 on the upper flange part of the back section and fix the flange of the heat water. The flange to be welded to the distribution of the heat water in advance.

  • Page 11: Filling Of The Heat System With Water

    Take out the isolation from the upper part of the jacket. Thermomanometer to be built – in to the control box and the aggregate to be screwed to the upper part of the jacket. Before putting on of the upper part of the jacket to the boiler it is necessary to put on the isolation back, insert the thermometer sensor to the thermometer sump and the manometer sensor to be screwed to the manometer sump.

  • Page 12: Putting Into Operation - Instructions For A Contractual Service Organization

    Putting into operation – instructions for a contractual service organization Putting the boiler into operation can be performed only by a contractual service organization authorized for performing of this operation. Control operation before starting Before starting the boiler it is needed to check: filling the heat system with water (thermomanometer check) and system tightness.

  • Page 13: Heating Up

    Heating up Check the water volume in the heat system on the thermomanometer. Open the closing armatures between the boiler and the heat system. Clean out the grate, ashtray, smoky channels and boiler walls. Spread out the kindling through the ash door with the stoker – hole on a cleaned grate along its entire depth. Set the smoky flap in the chimney –...

  • Page 14: Operation

    (eventually coke) when setting the boiler to the maximum operating temperature. IMPORTANT NOTICE The boiler VIADRUS U 22 is not intended for the Czech market. The boiler only can be used for the purpose that it is destined for.

  • Page 15: Instructions For Product Liquidation After Its Operating Life

    Warranty and defect liability VIADRUS a.s. provides the basic guarantee period during 24 months from the sell-by date, but not longer than 30 months from the dispatch date of the product from the production plant. The condition for validity of the guarantee is observation of instructions for mounting, mainly as following: •...

  • Page 16: Product Fiche

    Product fiche VIADRUS HERCULES U 22 2 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 17 VIADRUS HERCULES U 22 3 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 18 VIADRUS HERCULES U 22 4 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 19 VIADRUS HERCULES U 22 5 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 20 VIADRUS HERCULES U 22 6 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 21 VIADRUS HERCULES U 22 7 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 22 VIADRUS HERCULES U 22 8 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 23 VIADRUS HERCULES U 22 9 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 24 VIADRUS HERCULES U 22 10 sect. Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel (only Fuel Other suitable fuel(s): one): Log wood, moisture content ≤ 25 % Chipped wood, moisture content 15-35 % Chipped wood, moisture content > 35 % Compressed wood in the form of pellets or briquettes Sawdust, moisture content ≤...
  • Page 25 Information for customer Packaging identification Assessment reference PE Plastic sacks, folie, corrugated board, iron and plastic fix line Identification of principal materials used. Paper, Polyethylene, iron, wood Part 1: Summary of assessment Standard/Report Assessment requirement Claim Note 1.1 Prevention by source reduction 1.2 Heavy metals and ensure below maximum permitted levels for components (CR 13695-1)
  • Page 27 Appendix to the Warranty card for customer - user Recording of performed warranty and after – warranty repairs and performance of regular product check Contractual service Recording Customer´s Performed operation organization date signature (signature, stamp)
  • Page 28 VIADRUS U 22 C/D VIADRUS a.s. Bezručova 300 | CZ - 735 81 | Bohumín E-mail : info@viadrus.cz | www.viadrus.cz...
