090.560-M (MAY 2016)
Page 8

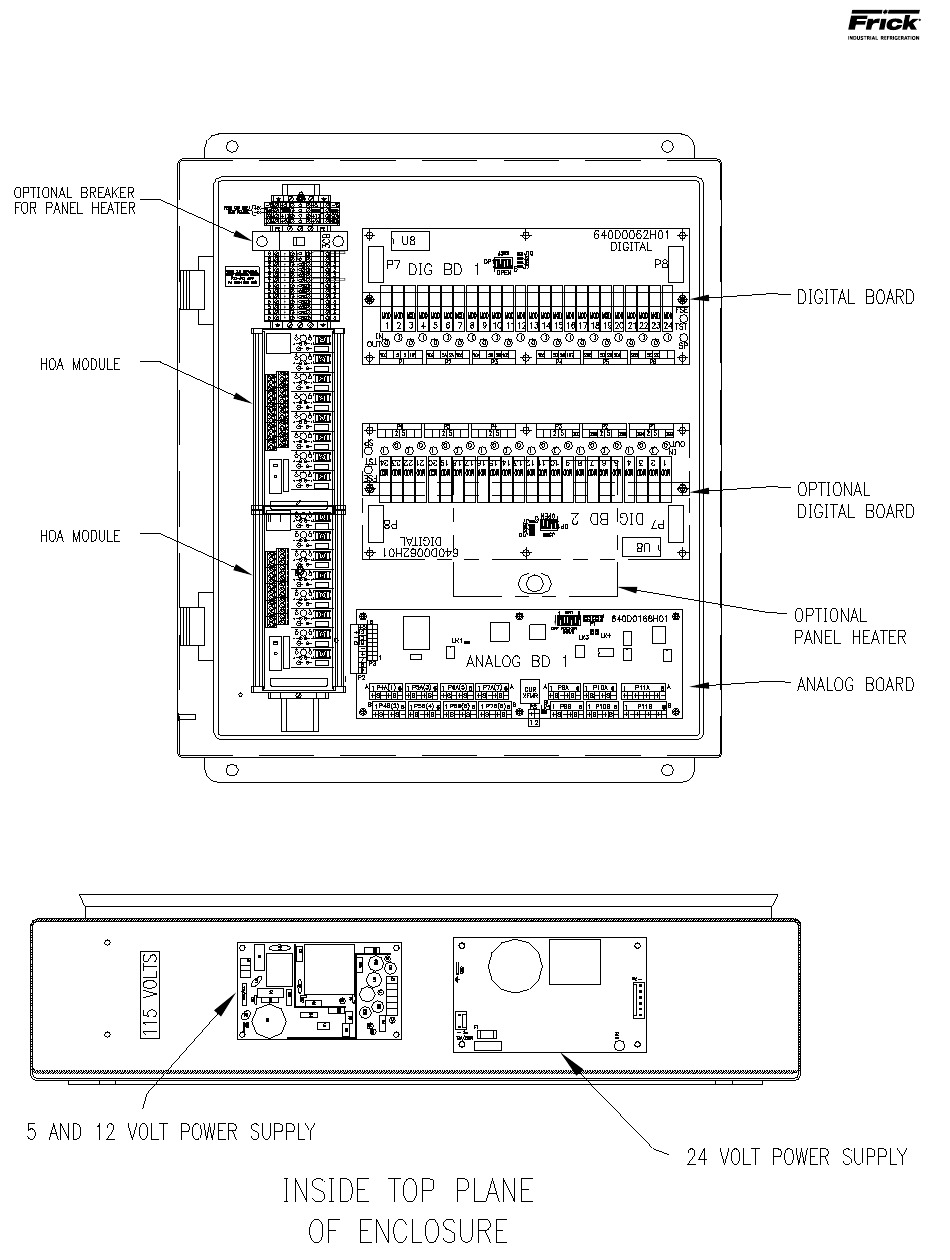

The following pictorial shows the inside, top of the enclosure.
The power supply which provides the necessary DC voltages to
QUANTUM
LX CONDENSER/VESSEL CONTROL PANEL
™
MAINTENANCE
CONDENSER AND VESSEL PANEL
power both the digital and analog boards, as well as providing
power to the analog channels is located here.
