Form S90-510 CS (MARCH 2007)
COMMUNICATIONS SETUP
File:
SERVICE MANUAL - SECTION 90
Replaces:
NOTHING
Dist:
3, 3a, 3b, 3c
COMMUNICATIONS SETUP
®
FRICK

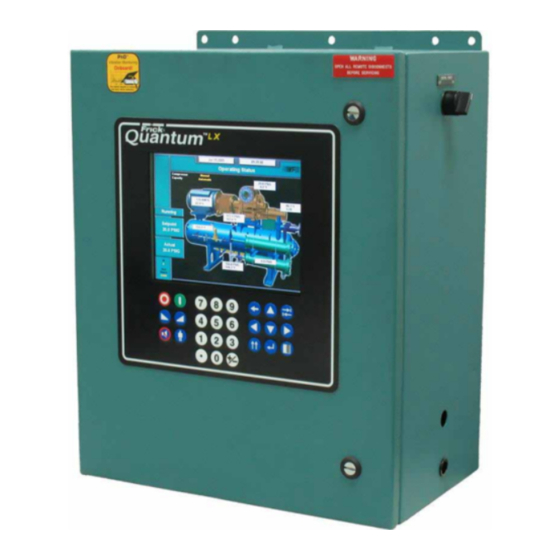

QUANTUM™ LX
®
AcuAir
CONTROL PANEL
Version 3.0x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUANTUM AcuAir LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frick QUANTUM AcuAir LX

Summary of Contents for Frick QUANTUM AcuAir LX

  • Page 1 Form S90-510 CS (MARCH 2007) COMMUNICATIONS SETUP File: SERVICE MANUAL - SECTION 90 Replaces: NOTHING Dist: 3, 3a, 3b, 3c COMMUNICATIONS SETUP ® FRICK QUANTUM™ LX ® AcuAir CONTROL PANEL Version 3.0x...

  • Page 2: Table Of Contents

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 2 COMMUNICATIONS SETUP Table of Contents INTRODUCTION TO THE QUANTUM™ LX _____________________________________________________ 4 Quantum™ Description _____________________________________________________________________________ 4 How To Use This Manual ___________________________________________________________________________ 4 SERIAL COMMUNICATIONS ________________________________________________________________ 5...

  • Page 3: Communications Setup

    Any modification to these control ® settings is the sole responsibility of the user/owner and Frick disclaims any liability for the consequences of these modifications. It is possible that the modification of these settings may cause improper operation and performance that results in property damage, personal injury or death.

  • Page 4: Introduction To The Quantum™ Lx

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 4 COMMUNICATIONS SETUP INTRODUCTION TO THE QUANTUM™ LX QUANTUM™ DESCRIPTION These connections are known as PROTOCOLS, and The Quantum™ LX control panel utilizes the are both hardware and software based. The hardware Quantum™...

  • Page 5: Serial Communications

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 5 SERIAL COMMUNICATIONS of the Quantum™ controller consists of a daughter GENERAL DESCRIPTION board, mounted to the main controller. In addition to external forms of serial communication (to be Serial communications to and from the Quantum™...

  • Page 6: Rs-232 Description

    (except for modems), and barely can be sent and received simultaneously. able to keep up with these speeds. Frick® Controls uses a 4-wire system for RS-422 (two transmit wires and two receive RS-232 uses single ended TX (transmit data) and RX wires).

  • Page 7: Communications Setup

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 7 COMMUNICATIONS SETUP After the communications wiring has been connected, and with. The following screen is where this information can be jumpers correctly set, the LX software needs to be setup...

  • Page 8: Using The Map File

    A pull down menu Upload MapFile.txt to Quantum™ LX – After the is provided to select from the following Frick user has modified the MapFile.txt file to suit their recognized protocols: needs, pressing this key will cause the file to be •...
  • Page 9 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 9 be performed from the Operator Interface Panel. A sample of the original file appears below. Instead, a desktop computer should be used to access the AcuAir™ controller via a web browser).

  • Page 10: Communication Setup Table

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 10 COMMUNICATIONS SETUP COMMUNICATION SETUP TABLE Use the following form to record all settings: TABLE 1 – COMMUNICATION SETUP Compressor ID _______ (0 - 99) Com 1...

  • Page 11: Ethernet And Networking

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 11 ETHERNET AND NETWORKING • DESCRIPTION Do keep all individual cable lengths under 300 feet. If greater distances are ® needed, use a switch/hub every 300...

  • Page 12: The Hub

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 12 COMMUNICATIONS SETUP When looking at this connector, pin 1 is at the left, Note: If you want to connect one computer to and pin 8 is at the right.
  • Page 13 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 13 TABLE 3 - ETHERNET COMPONENT RECOMMENDATIONS Component Description Part Number Manufacturer Shielded solid 4-pair* (1000 Ft) BOXCAT5E-DSSO Cablesforless.com E-PLG-SOLID-SH CR45-100S Shielded solid 4-pair* Cables Direct...

  • Page 14: The Internet

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX ACUair CONTROL PANEL Page 14 COMMUNICATIONS SETUP transparent to the end user. For those individuals familiar THE INTERNET with using the internet, they understand that every time they activate their web browser (the software that allows...
  • Page 15 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 15 Ethernet network must be assigned a unique identifying be standard compressors, and they could be named number, called an IP Address (this is similar in concept Comp1.

  • Page 16: Protocol

    Note: The data communication protocols are continuously ACTIVE or OFF. being expanded and improved. Therefore, you should • ® consult Frick Controls for the exact details on your ACTIVE is shown only when the Quantum™ particular unit(s) before developing system software to received...

  • Page 17: Frick Protocols

    ID code, “02”, Carriage return, and Linefeed command, and vice-versa. are returned. CHANGE MODE COMMAND: $IDAM ® The following is a complete list of available Frick Protocol # commands: Start of command sequence. AcuAir ID code. COMMAND CODE and DESCRIPTION...
  • Page 18 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 18 COMMUNICATIONS SETUP RETURN Warnings & Shutdowns - Page 1 data: RETURN Warnings & Shutdowns - Page 2 data: $01F1 $01F2 Start of command sequence. Start of command sequence.
  • Page 19 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 19 RETURN Warnings & Shutdowns - Page 3 data: RETURN Unit Status - Unit data: $01IE $01F3 Start of command sequence. AcuAir ID code. Start of command sequence.
  • Page 20 AcuAir ID code. Heat Profile Return the value of a Table address. +000 Outside Air Temperature 0000 Frick Address of first data value in Table +000 Discharge Air Temp. Number of subsequent values to return +000 Room/Return Air Temp (up to 25 values can be requested)

  • Page 21: Conversion Chart For Decimal / Hexadecimal / Ascii

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 21 CONVERSION CHART FOR DECIMAL / HEXADECIMAL / ASCII Decimal Hexadecimal ASCII Decimal Hexadecimal ASCII Decimal Hexadecimal ASCII (DEC) (HEX) (DEC) (HEX) (DEC) (HEX) ctrl @ NUL...

  • Page 22: Allen-Bradley Communication

    NOTE: This section contains programming examples for the Stop Bit set to 1, Parity set to none, Duplicate Detect disabled, and Error Detect set for BCC or reading data from and writing data to the Frick Quantum™ CRC. Compressor control panel from an Allen Bradley (AB) ®...

  • Page 23: Read Message Setup Example

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 23 Message Retries: 3 (Refer Allen-Bradley Programming Parity: None Overview Section for more information) Station Address (Source ID): 5 (Leader DF1 selected ID#) PLC-5/30 - Suggested Setup...

  • Page 24: Read Message Setup Example

    This section contains programming examples for reading Model Series Firmware must ® data from, and writing data to the Frick Quantum™ be at least: control panel from an Allen Bradley (AB) SLC500 or PLC5 5/30 processor. AB RSLogix500 programming software has been used for the following examples, however, these examples can also be used for the AB RSLogix5 software.

  • Page 25: System Configuration

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 25 System Configuration Message Sequence Logic message to the Quantum™ panel. This logic prevents hang up due to lost communications or message Use the following logic to sequence read and write...

  • Page 26: Message Read Logic

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 26 COMMUNICATIONS SETUP Message Read Logic Delay Between Messages Use the following logic to read data from the The delay timer on rung 3 must be used when Quantum™...

  • Page 27: Message Read Setup Screen

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 27 MESSAGE READ SETUP SCREEN N10:1 register and place them into the SLC500’s N10:1 through N10:28 register. The target address The following setup screen is programmed to obtain must be changed to for the Quantum LX.

  • Page 28: Message Write Logic

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 28 COMMUNICATIONS SETUP Message Write Logic screen parameters accordingly. The following write message instruction will be executed when counter 5:0 (logic shown above) is equal to 1 and when called Use the following logic to write data from the upon by the change compressor mode bit B3/2.
  • Page 29 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 29 - Continued from previous page -...

  • Page 30: Message Write Setup Screen

    EtherNet/IP integer values with one decimal field assumed unless shown otherwise or the command is sent Frick Controls supports the use of EtherNet/IP to select two decimal fields. For example, if the (as described on the ab.com website, under the data’s value is 25.5 then the value 255 is sent.

  • Page 31: Modbus

    It is information, refer to the Hyperterminal section in this traditionally implemented using RS-232, RS-422, or manual). When using Hyperterminal, use the Frick RS-485 communications hardware. addresses listed in the address tables, rather than the Modbus addresses.

  • Page 32: The Query

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 32 COMMUNICATIONS SETUP The Longitudinal Redundancy Check (LRC) field The Query is one byte, containing an eight-bit binary value. The LRC value is calculated by the transmitting...

  • Page 33: Query (Read) Example

    H.O. address (hex) Temperature Analog Input. In this case, it would L.O. address (hex)  be Frick Address 2000 (decimal). Since this is H.O. # of Data Registers the only address we are interested in obtaining L.O. # of Data Registers...

  • Page 34: Write Example

    NOTE: To perform write functions to the AcuAir ® reading the remainder of the message. If the byte does not Quantum™, the Control Source (Frick address 4002) equal its ID #, the message will be ignored. must be set to Remote. This can be done through ®...
  • Page 35 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 35 In this particular example, we are strictly looking to write a In order to ensure that the Quantum™ in question data value, so we will be performing a write function (06): receives the data request accurately, we must append an Error Check byte to the end of the message.

  • Page 36: Response Example

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 36 COMMUNICATIONS SETUP The next byte tells the Leader how many bytes Response Example: of information are being returned as a response. In this Using the Query (Read) Message example used earlier, if case, there are two (2) bytes of valid data.

  • Page 37: Rtu Query (Read) Example

    “1” (one). For instance, if you When using MODBUS protocol (other than the  wanted to look at Frick Address 135, you may Hyperterminal example shown earlier), it is ® need to actually look at address 136. The...

  • Page 38: Hyperterminal

    New Connection. Type in information, and viewing current operating conditions. ® whatever name you would like to use, Frick used in this example. This name will also create When first connecting Quantum™...
  • Page 39 Quantum™) ® the next is the Data Bits box. For MODBUS ASCII, you • Data bits: ® can use either 7 or 8 data bits, for Frick and Quantum™ protocols, use only 8 data bits. • Parity: None • ®...
  • Page 40 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 40 COMMUNICATIONS SETUP The following screen will appear. This is the screen that data, and a response will be shown below the sent whereby all communications (out of the computer, and into data.
  • Page 41 To do this, click on the [ASCII documentation as presented here, for everything to look Setup…] button. ® On the ASCII Setup screen, for best results, check the For Frick protocols ($): boxes according to the following chart: • Echo typed characters locally ®...
  • Page 42 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 42 COMMUNICATIONS SETUP The Properties screen will once again be shown. Click on the [OK] button to proceed. You will now be back to the main Hyperterminal computer (from the Quantum™), will appear on this...

  • Page 43: Testing Communications

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 43 Testing Communications used). Type following command: $01T1200001??CR, then press [ENTER]. (This command will request the value of the Outside Air Temperature of Set the keyboard for CAPS (so that all capital letters will Unit #1.)

  • Page 44: Quantum™ Data Tables

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 44 COMMUNICATIONS SETUP QUANTUM™ DATA TABLES DIGITAL BOARD VALUES : (Read Only) ® Frick Modbus Digital Channel Module Description of Data Address Address Address Board # Type...

  • Page 45: Analog Board Values

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 45 ANALOG BOARD VALUES: (Read Only) ® Frick Modbus Analog Channel Module Description of Data Address Address Address Board # Type 2000 N20:0 42001 Outside Air Temperature...

  • Page 46: Calculated Values

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 46 COMMUNICATIONS SETUP CALCULATED VALUES: (Read Only) ® Frick Modbus Value Code Description of Data Address Address Address 3000 N30:0 43001 Cooling Command Percent (%) 3001 N30:1...
  • Page 47 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 47 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Off 4000 N40:0 44001 Unit Status 1 = Running...

  • Page 48: Mode Values

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 48 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = US 4076 N40:76 44077 Date Format (Local Display Only)
  • Page 49 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 49 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 4122 N41:22 44123 Time Schedule Sunday 1 Mode 4123...
  • Page 50 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 50 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 4182 N41:82 44183 Digital Out 1 Control Action 4183...
  • Page 51 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 51 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4215 N42:15 44216 Pre-Coil Override Configuration...
  • Page 52 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 52 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4239 N42:39 44240 PI 1 Control...
  • Page 53 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 53 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4242 N42:42 44243 PI 2 Control...
  • Page 54 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 54 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4245 N42:45 44246 PI 3 Control...
  • Page 55 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 55 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4248 N42:48 44249 PI 4 Control...
  • Page 56 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 56 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4251 N42:51 44252 PI 5 Control...
  • Page 57 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 57 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4254 N42:54 44255 PI 6 Control...
  • Page 58 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 58 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4257 N42:57 44258 PI 7 Control...
  • Page 59 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 59 MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Disabled 4260 N42:60 44261 PI 8 Control...
  • Page 60 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 60 COMMUNICATIONS SETUP MODE VALUES: (Read Only) ® Frick Modbus Description of Data Value Codes Address Address Address 0 = Outside Air Temperature 1 = Discharge Air Temperature...
  • Page 61 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 61 WARNING/SHUTDOWN VALUES: (Read Only) Continued ® Frick Modbus Description of Data Text Message Index Address Address Address 5001 N50:01 45002 High Room Pressure Warning...
  • Page 62 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 62 COMMUNICATIONS SETUP WARNING/SHUTDOWN VALUES: (Read Only) Continued ® Frick Modbus Description of Data Text Message Index Address Address Address 5097 N50:97 45098 Low Auxiliary Analog 4 Shutdown...
  • Page 63 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 63 WARNING/SHUTDOWN VALUES: (Read Only) Continued ® Frick Modbus Description of Data Text Message Index Address Address Address 5165 N51:65 45166 Low Auxiliary Analog 14 Shutdown...

  • Page 64: Timer Values

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 64 COMMUNICATIONS SETUP TIMER VALUES: (Read Only) ® Frick Modbus Description of Data Address Address Address 6005 N60:05 46006 Purger Timer 6006 N60:06 46007 Cooling Stage #1 Min. On Timer...

  • Page 65: Setpoint Values

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 65 SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7061 N100:61 47062 PSIG Offset 7091 N70:91 47092 Power Failure Restart Delay 7093...
  • Page 66 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 66 COMMUNICATIONS SETUP SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7224 N102:24 47225 Process 2 Supply Burner Proportional Band 7225 N102:25 47226 Process 2 Supply Burner Integration Time...
  • Page 67 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 67 SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7403 N104:03 47404 Cleanup Coil Purge Time 7404 N104:04 47405 No Supply Air Flow Shutdown Delay - Starting...
  • Page 68 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 68 COMMUNICATIONS SETUP SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7545 N105:45 47546 Time Schedule Tuesday 3rd Mode Hour 1 7546 N105:46 47547...
  • Page 69 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 69 SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7608 N106:08 47609 Defrost Schedule Monday Minute 6 7609 N106:09 47610 Defrost Schedule Tuesday Hour 1...
  • Page 70 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 70 COMMUNICATIONS SETUP SETPOINT VALUES: ® Frick Modbus Description of Data Address Address Address 7668 N106:68 47669 Defrost Schedule Saturday Minute 6 7670 N106:70 47671 Pump Out Stage Time...
  • Page 71 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 71 SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 7753 N107:53 47754 Auxiliary Analog 3 High Warning Delay 7754 N107:54 47755...
  • Page 72 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 72 COMMUNICATIONS SETUP SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 7820 N108:20 47821 Auxiliary Analog 10 High Shutdown 7821 N108:21 47822 Auxiliary Analog 10 High Shutdown Delay...
  • Page 73 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 73 SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 7886 N108:86 47887 Auxiliary Analog 16 Low Warning 7887 N108:87 47888 Auxiliary Analog 16 Low Warning Delay...
  • Page 74 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 74 COMMUNICATIONS SETUP SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 8021 N110:21 48022 PI 3 High Limit 8022 N110:22 48023 PI 3 Low Limit...
  • Page 75 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 75 SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 8215 N112:15 48216 User Defined #6 Service Interval 8216 N112:16 48217 User Defined #7 Service Interval...
  • Page 76 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 76 COMMUNICATIONS SETUP SETPOINT VALUES: (Continued) ® Frick Modbus Description of Data Address Address Address 8305 N113:05 48306 Regen Burner Start Delay 8306 N113:06 48307 Regen Burner Ramp Time...

  • Page 77: Warning/Shutdown Message Codes

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 77 WARNING/SHUTDOWN MESSAGE CODES High Room Pressure Warning 69 Auxiliary Input 4 Shutdown High Room Pressure Shutdown 70 Auxiliary Input 4 Warning Low Discharge Temp. Warning 71 Auxiliary Input 5 Shutdown Low Discharge Temp.

  • Page 78: Quantum™ 4 Main Board History And Identification

    8 position DIP switch. There are also a number of ® jumpers (or links) present on this smaller board, as well as When calling Frick Company for service or help, we will three green connectors (RS-232, RS-422 and RS-485 request the Sales Order number, and the Operating ports).
  • Page 79 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 79 USB Connector (Depending on board version, USB could be located in either of these to places). Com-3 PL13 RS-232 Connector LK12 PL14 PL10 PL16...

  • Page 80: Serial Communications Port Wiring

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 80 COMMUNICATIONS SETUP SERIAL COMMUNICATIONS PORT WIRING PL6, Com-3 RS-232 WIRING AND JUMPERS The following pictorial shows the communications TB3, COM-2 board, as well as the jumpers, LED’s and signal...

  • Page 81: Rs-422 Wiring And Jumpers

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 81 TB2, COM-2 RS-422 WIRING AND JUMPERS The following pictorial shows the communications board, The following table describes the Quantum™ RS-422 as well as the jumpers, LED’s and signal pinouts to allow...

  • Page 82: Rs-485 Wiring And Jumpers

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 82 COMMUNICATIONS SETUP TB2, COM-2 RS-485 WIRING AND JUMPERS The following pictorial shows the communications board, The following table describes the Quantum™ RS-485 as well as the jumpers, LED’s and signal pinouts to allow...

  • Page 83: Converting An Rs-232 Signal To Rs-422/485

    Page 83 CONVERTING AN RS-232 SIGNAL TO RS-422/485 One converter that can be used is a DIN rail mountable ® device, the Frick Serial Communications Converter Module, manufactured by YORK International (P/N In order to communicate to the Quantum™ controller via RS-422 or RS-485 on Comm.

  • Page 84: Frick Serial Communications Converter Module

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 84 COMMUNICATIONS SETUP APPENDIX A ® FRICK SERIAL COMMUNICATIONS CONVERTER MODULE (Part Number 639B0086H01) Press the tabs using the thumb and finger, and with your Description other hand carefully slide the circuit board out of the housing.

  • Page 85: Wiring The Module

    Refer to the following figure for the pin connections of the DIN rail, as shown below. showing how to wire a standard 9-Pin RS-232 connector ® directly to the Frick Communications Converter Module. RS-232 9-Pin Connector...

  • Page 86: Rs-232 Connections

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 86 COMMUNICATIONS SETUP APPENDIX B QUANTUM™ LX PANEL SOFTWARE UPDATE PROCEDURE Access the Software Maintenance screen by setting the User Level to 2, then clicking on Menu, then Service, and finally Software Maintenance.

  • Page 87: Quantum™ Lx Ethernet Communications Wiring

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 87 APPENDIX C QUANTUM™ LX ETHERNET COMMUNICATIONS WIRING...

  • Page 88: Quantum™ Lx Local Ethernet Configurations

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 88 COMMUNICATIONS SETUP QUANTUM™ LX LOCAL ETHERNET CONFIGURATIONS Switch Computer Quantum™ LX Quantum™ LX Typical Small Local Quantum™ LX Ethernet Configuration Switch Switch Switch Computer Quantum™ LX Computer Quantum™...

  • Page 89: Quantum™ Lx Ethernet Network Configurations

    ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 89 QUANTUM™ LX ETHERNET NETWORK CONFIGURATIONS Internet Ethernet Network Switch Computer Quantum™ LX Quantum™ LX Typical Small Quantum™ LX Ethernet Network Configuration Internet Ethernet Network...

  • Page 90: Quantum™ Lx Serial Communications Wiring

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 90 COMMUNICATIONS SETUP APPENDIX D QUANTUM™ LX SERIAL COMMUNICATIONS WIRING...
  • Page 91 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 91 SERIAL CONNECTIONS PICTORIAL...

  • Page 92: Serial Communications Wiring Diagrams

    ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 92 COMMUNICATIONS SETUP SERIAL COMMUNICATIONS WIRING DIAGRAMS WIRING DIAGRAM – QUANTUM™ LX TO CUSTOMER REMOTE COMPUTER/DCS RS-485 COMMUNICATIONS COM2 COM2 COM2 (TB2) (TB2) (TB2) Belden #8761 Belden #8761...

  • Page 93: Index

    Flow Control ............51 Follower........33, 34, 42, 81, 82, 83 Active............12, 13, 21 Address ............. 56-85 Frick “#” protocol ............ 51 Allen-Bradley...... 21, 33, 34, 35, 41, 51, 84 Full Duplex ..........9, 16, 21, 33 Allen-Bradley DF-1..........21 Function Code ............43 ASCII ....16, 21, 22, 26, 32, 34, 42-49, 51, 53...
  • Page 94 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 94 COMMUNICATIONS SETUP Panel 11, 17, 20-22, 26, 33, 35-37, 39, 41, 43, 48-50 Sequencing............90, 91 Panel Setup............50, 55 Serial ..............84 Parity ............13, 21, 51 Setting up Hyperterminal........
  • Page 95 ® ® FRICK QUANTUM™ LX AcuAir CONTROL PANEL S90-510 CS (MAR 07) COMMUNICATIONS SETUP Page 95...
  • Page 96 ® ® S90-510 CS (MAR 07) FRICK QUANTUM™ LX AcuAir CONTROL PANEL Page 96 COMMUNICATIONS SETUP © 2007 Johnson Controls Inc. • • Subject to change without notice • Printed in USA - GUI 1M • Supersedes: NOTHING • Form S90-510 CS (307)
