Frick QUANTUM LX Maintenance Manual page 14

090.560-M (MAY 2016)
Page 14
DIMM1
POWER
LED's
NOTE 1: The triangle symbol (
NOTE 2: Do NOT remove the CN4 jumper. Removal of this jumper will cause the processor to not power up.
NOTE 3: Although the Q5 board is the main controller, most of customer connections will be to the Interface board, as shown later.
NOTE 4: Ensure that this jumper is installed between pins 1 and 2 if a display is used that requires an inverter board. Install the jumper
between pins 2 and 3 for an LED display that does not use an inverter board. See also the jumper table on the next page for JLVDS3.
QUANTUM LX CONDENSER/VESSEL CONTROL PANEL
™
MAINTENANCE

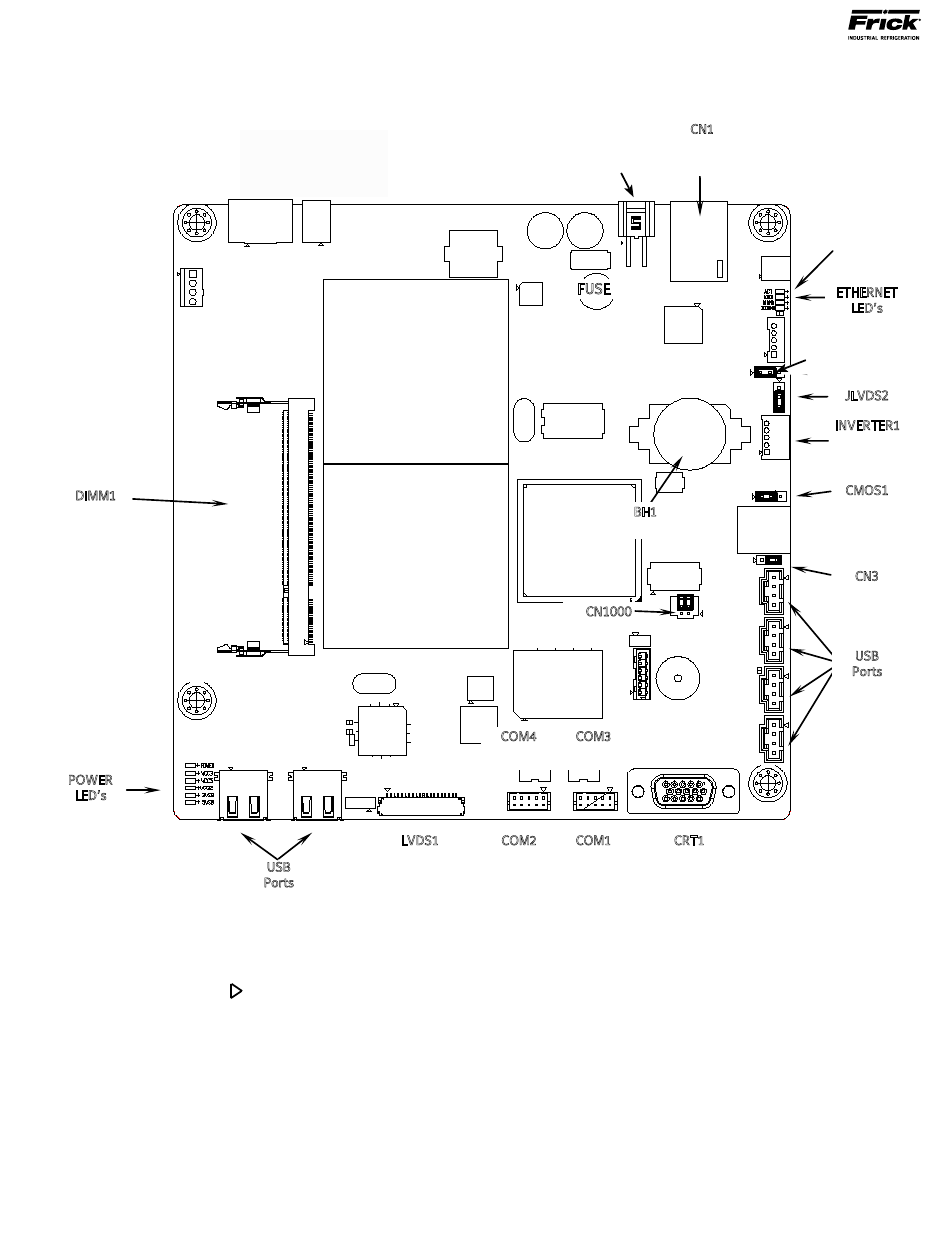

Q5 BOARD
CN_POWER1
Power Connector
LVDS1
Video Connector
USB
Ports
) denotes Pin 1 on connectors. Refer to the chart on the following page for jumper settings.
CN_PWR1
Power Connector
FUSE
BH1
Battery
CN1000
COM4 COM3
RS-485 RS-485
COM2 COM1 CRT1
RS-232 RS-232 Video Monitor
CN1
Ethernet
Flash Card located
under the board
here
ETHERNET
LED's
JLVDS3
(See Note 4 below)
JLVDS3
JLVDS2
INVERTER1
Inverter
Connector
CMOS1
CN3
USB
Ports
