FREE STANDING COMPACT RIG GOLIATH
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
21-0119-0B
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
1200mm x 2408mm x 820mm
-
2700mm x 3272mm x 2020mm
#MADEINBELFAST
85kg
125kg
2
300kg
Advertisement
Related Manuals for BLK BOX FREE STANDING COMPACT RIG GOLIATH
Summary of Contents for BLK BOX FREE STANDING COMPACT RIG GOLIATH

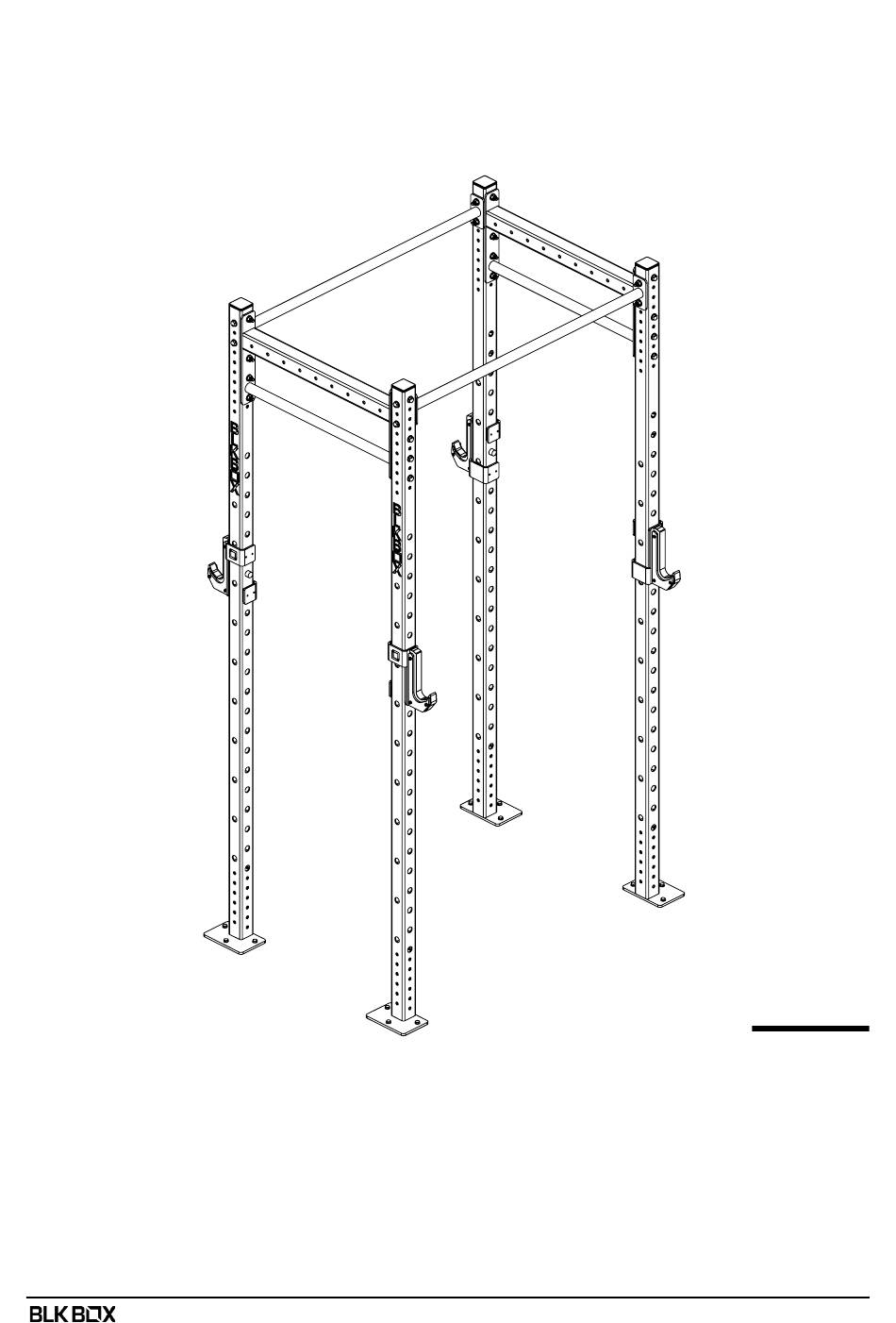

- Page 1 BLK BOX FREE STANDING COMPACT RIG GOLIATH 21-0119-0B PRODUCT SPECIFICATION PRODUCT WEIGHT 85kg 125kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 1200mm x 2408mm x 820mm NOTE : PLEASE READ ALL THE INSTRUCTIONS SAFE WORKING ZONE CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 2QTY 1.2 BAR (21-0015-0A) AND 2QTY 0.4 BOX & BAR (21-0009-0A) BETWEEN 4QTY UPRIGHTS (21-0036-0A) WITH BOLT ASSEMBLY AS SHOWN. ENSURE UPRIGHTS LOGOS ARE FACING OUTWARD AND BOLTS ARE FACING INWARD. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 4 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE AS SHOWN TO SPECIFIED TORQUE. ENSURE UPRIGHTS ARE PLUMB, DRILL AND SECURE ALL HOLES ON UPRIGHTS A SHOWN IN GUIDE. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE THROUGH FLOOR COVERING, 90MM DEEP USING PLATE AS A GUIDE. -VACUUM OUT THE DUST.
- Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 6 THIS IS A BLANK PAGE #MADEINBELFAST...
- Page 7 THIS IS A BLANK PAGE #MADEINBELFAST...
