OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
All manuals and user guides at all-guides.com
BLK BOX
BINARY RACK
21-0549-0A
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
628mm x 1450mm x 2212mm
-
2128mm x 2950mm x 3076mm
#MADEINBELFAST
65kg
125kg
1
200kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX BINARY RACK 21-0549-0A
Summary of Contents for BLK BOX BINARY RACK 21-0549-0A

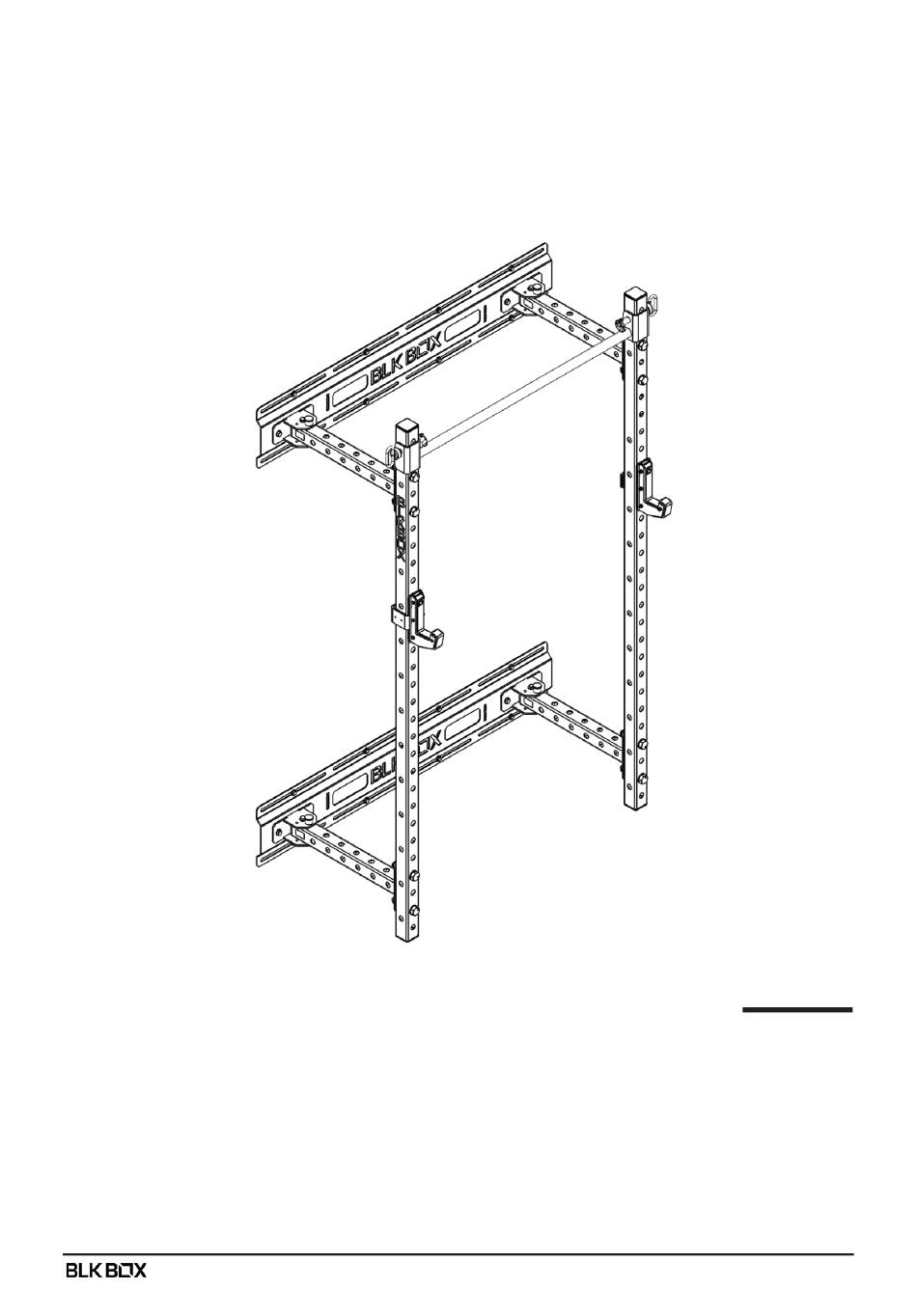

- Page 1 All manuals and user guides at all-guides.com BLK BOX BINARY RACK 21-0549-0A PRODUCT SPECIFICATION PRODUCT WEIGHT 65kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 200kg DIMENSIONS 628mm x 1450mm x 2212mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
