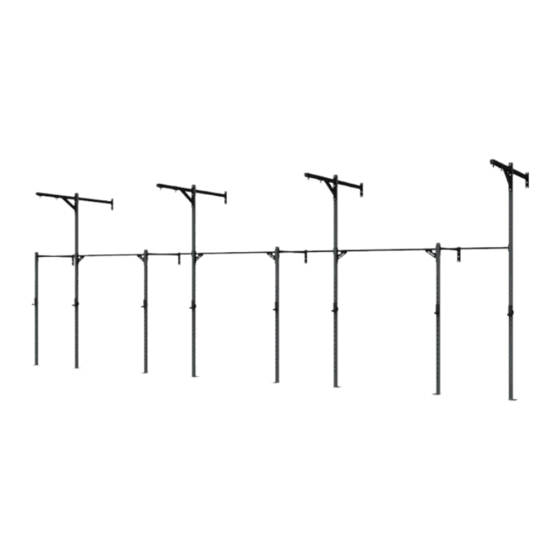

GOLIATH WALL MOUNTED FUNCTIONAL RIG
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
4 BAY
21-0816
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
PRODUCT SPECIFICATION
-
-
-
-
-
10130mm x 2220mm x 3600mm
#MADEINBELFAST
260kg
125kg
4
300kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX GOLIATH 21-0816
Summary of Contents for BLK BOX GOLIATH 21-0816
- Page 1 BLK BOX GOLIATH WALL MOUNTED FUNCTIONAL RIG 4 BAY 21-0816 PRODUCT SPECIFICATION PRODUCT WEIGHT 260kg 125kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 10130mm x 2220mm x 3600mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY 1.2 SINGLE BAR CM (21.0015) BETWEEN 1QTY 2.4 UPRIGHT (21-0036), AND 1QTY 3.6 UPRIGHT (21-0038) AND BOLT 1QTY 1.2 SINGLE BAR WM (21-0126) WITH BOLTS AS- SEMBLY AS SHOWN. ENSUE LOGO ON UPRIGHTS ARE FACING OUTWARD AND ALL BOLTS FACING INWARDS.
- Page 4 POSITION 1 BAY 1740MM FROM NEXT BAY. BOLT 1QTY 1.8 SINGLE BAR (21-0028) TO THE SIDE OF THE 3.6 UPRIGHT (21-0038) AND 2.4 UPRIGHT (21-0036 ) REUSING BOLT ASSEMBLY AS SHOWN. ENSURE THAT BOLTS ARE FACING INWARD. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 5 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE ELLIPSES TO THE 30Nm TORQUE . ENSURE UPRIGHTS ARE PLUMB. DRILL AND SECURE UPRIGHTS, 1.2 BOX WM (21-0434) AND 1.2 `SINGLE BAR WM (21- 0126) AS SHOWN IN GUIDE. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE, 90MM DEEP USING PLATE AS A GUIDE.
- Page 6 REPEAT FIRST THREE STEPS FOR ADDITIONAL BAYS. 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com...
