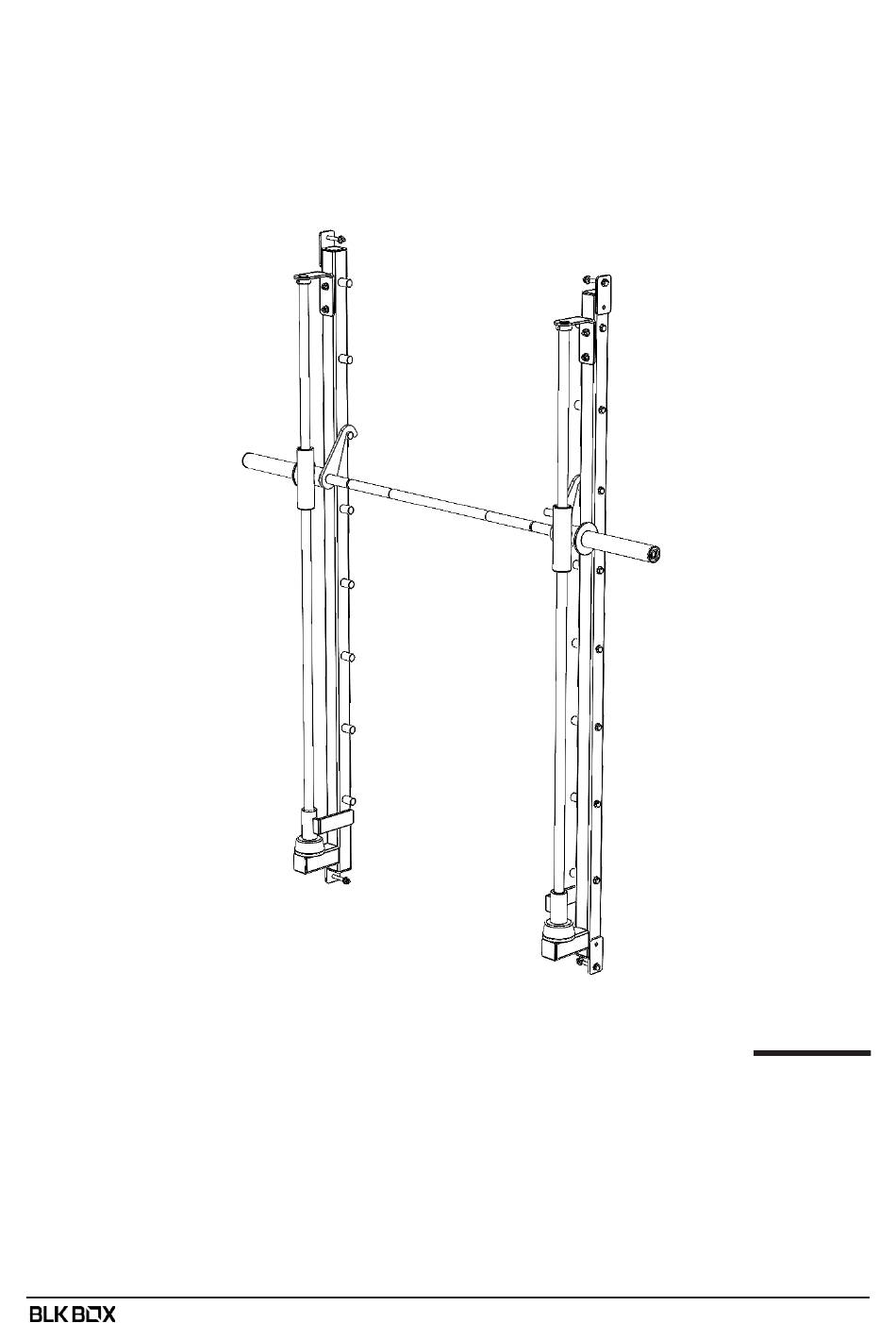

GOLIATH SMITH MACHINE ATTACHMENT
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
21-0726
PRODUCT WEIGHT
MAX USER WEIGHT
MAX TRAINING WEIGHT
DIMENSIONS
PRODUCT SPECIFICATION
-
-
-
-
1805mm x 224mm x 2215mm
#MADEINBELFAST
77kg
150kg
200kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX GOLIATH 21-0726
Summary of Contents for BLK BOX GOLIATH 21-0726
- Page 1 BLK BOX GOLIATH SMITH MACHINE ATTACHMENT 21-0726 PRODUCT SPECIFICATION PRODUCT WEIGHT 77kg MAX USER WEIGHT 150kg OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 200kg 1805mm x 224mm x 2215mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY REMOVE TOP CROSSMEMBER ON BOTH SIDES. #MADEINBELFAST...
- Page 4 BOLT 1QTY LHS UPRIGHT (21-0795) AND 1 QTY RHS UPRIGHT (21-0796) TO THE MIDDLE OF THE BOTTOM CROSSMEMBER. ATTACH USING BOLT ASSEMBLIES AS SHOWN BELOW. ENSURE TO KEEP BOLTS LOOSE TO ALLOW PLACEMENT LATER. NOTE: ENSURE PEGS ARE FACING INWARDS. 10.0008 10.0019 x2 10.0024...
- Page 5 INSERT 2QTY CHROME SHAFT INTO HOLES. #MADEINBELFAST...
- Page 6 SLIDE ON 2QTY RUBBER STOPPER (16-0282), 2QTY SAFETY STOP (21-0800) AND SLIDE 1 QTY SMITH MACHINE BAR (21-0937) ONTO 2 QTY CHROME SHAFT (32-0048). #MADEINBELFAST...
- Page 7 BOLT 1QTY SHAFT BRACKET (21-0812) TO UPRIGHTS (21-0795 & 21-0796) WITH BOLT ASSEMBLY AS SHOWN TIGHTEN TO 30Nm. TIGHTEN GRUB SCREW ON COLLAR HOLDING CHROME SHAFT USING AN ALLEN KEY. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 8 REPLACE 2QTY CROSSMEMBERS AND TIGHTEN TO 30Nm. #MADEINBELFAST...
- Page 9 STRAIGHTEN BOTH UPRIGHTS AND BOLT TO TOP CROSSMEMBER USING BOLT ASSEMBLY SHOWN BELOW. TIGHTEN ALL BOLTS TO 30Nm. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
