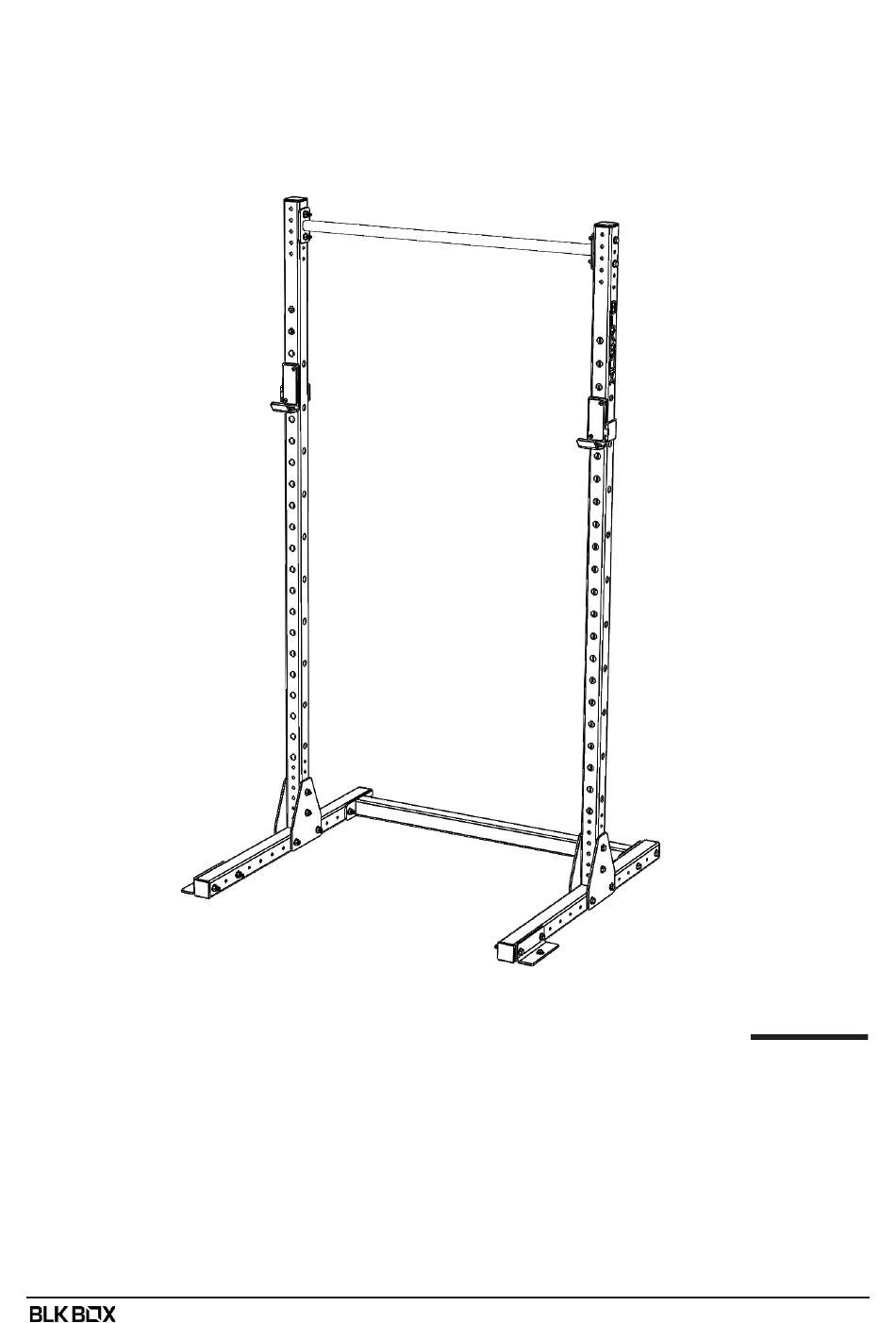

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
GOLIATH QUARTER RACK
21-0113-0D
PRODUCT SPECIFICATION
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
-
-
-
-
-
1112mm x 1320mm x 2266mm
-
2312mm x 2820mm x 3076mm
#MADEINBELFAST
55kg
125kg
1
350kg
Advertisement
Related Manuals for BLK BOX GOLIATH QUARTER RACK
Summary of Contents for BLK BOX GOLIATH QUARTER RACK
- Page 1 BLK BOX GOLIATH QUARTER RACK 21-0113-0D PRODUCT SPECIFICATION PRODUCT WEIGHT 55kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 350kg DIMENSIONS 1112mm x 1320mm x 2266mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 PARTS & ATTACHMENTS #MADEINBELFAST...
- Page 4 ASSEMBLY ARRANGE 2QTY OF QUARTER RACK BASE FRAME (21-0572-0A) ON THE GROUND. ENSURE THEY ARE ORIENTATED SO THAT 2 SLOTS ARE VISIBLE ON TOP, AS SHOWN BELOW. NOT 4 SLOTS. #MADEINBELFAST...
- Page 5 ASSEMBLE THE 2QTY BASE FRAMES (21-0572-0A) WITH THE BACK CM (21-0602-0A). FASTEN TOGETHER USING 2QTY M10X90 HEX HEAD BOLT (10-0008), 4QTY M10 WASHER (10-0019) AND 2QTY M10 NYLOC NUT (10-0024) PER SIDE. 10-0019 x 2 10-0024 x 2 10-0008 x 2 10-0019 x 2 #MADEINBELFAST...
- Page 6 #MADEINBELFAST...
- Page 7 ASSEMBLE 2QTY QUARTER RACK UPRIGHT (21-0573-0A). ENSURE THE TABS ON THE UP- RIGHTS ALIGN WITH THE SLOTS ON THE BASE FRAMES (21-0572-0A). ALSO ENSURE THAT THE BLK BOX LOGO IS FACING OUTWARD FROM THE RACK. FASTEN TOGETHER USING 4QTY GOLIATH BRACE PLATE (20-0472-0A), 8QTY M10X90 HEX HEAD BOLT (10-0008), 16QTY M10 WASHER (10-0019), AND 8QTY M10 NYLOC NUT (10-0024).
- Page 8 10-0019 x 4 10-0024 x 4 10-0008 x 4 10-0019 x 4 #MADEINBELFAST...
- Page 9 #MADEINBELFAST...
- Page 10 FASTEN 1QTY TO 1.2 SINGLE BAR (21-0015-0A) TO THE 2QTY UPRIGHTS USING 4QTY M10X90 HEX HEAD BOLT, 8QTY M10 WASHER, AND 4QTY M10 NYLOC NUT. 10-0008 x 2 10-0019 x 2 10-0019 x 2 10-0024 x 2 #MADEINBELFAST...
- Page 11 #MADEINBELFAST...
- Page 12 FINALLY, ASSEMBLE THE 2QTY FOOT PLATE (20-0142-0A) ONTOT THE BASE FRAME. FASTEN THE PLATES ONTO THE FRAME USING 4QTY M10X90HEX HEAD BOLT, 8QTY M10 WASHER, AND 4QTY M10 NYLOC NUT. #MADEINBELFAST...
- Page 13 THE QUARTER RACK CAN ALSO BE BOLTED TO THE FLOOR. TO DO SO DRILL 10MM HOLES 90MM DEEP INTO THE FLOORING AND FASTEN EACH PLATE 1QTY USING M10 SLEEVE ANCHOR BOLT (10-0031) AND 1QTY M10 WASHER. 10-0019 x 2 10-0024 x 2 10-0031 x 1 10-0019 x 1 10-0008 x 2...
- Page 14 THE QUARTER RACK IS NOW FULLY ASSEMBLED #MADEINBELFAST...
- Page 15 1:1 SCALE FASTENERS M10 x 90 HEX HEAD BOLT 10-0008 M10 WASHER M10 NYLOC NUT 10-0019 10-0024 M10 SLEEVE ANCHOR BOLT 10-0031 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 16 THIS IS A BLANK PAGE #MADEINBELFAST...
