Table of Contents

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

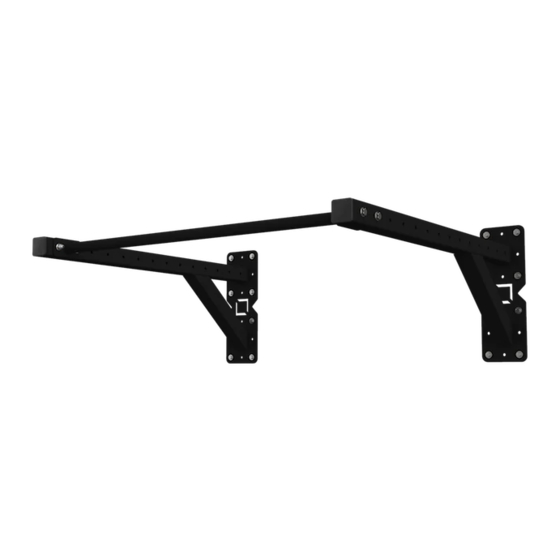

BLK BOX
WALL MOUNTED PULL UP BAR
21-0225-0C-SK

PRODUCT SPECIFICATION

-
PRODUCT WEIGHT
-
MAX WEIGHT
-
DIMENSIONS
-
SAFE WORKING ZONE
24.5kg
300kg
1080mm x 1300mm x 470mm
2080mm x 1300mm x 2970mm
#MADEINBELFAST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WALL MOUNTED PULL UP BAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLK BOX WALL MOUNTED PULL UP BAR

Summary of Contents for BLK BOX WALL MOUNTED PULL UP BAR

  • Page 1 BLK BOX WALL MOUNTED PULL UP BAR 21-0225-0C-SK PRODUCT SPECIFICATION PRODUCT WEIGHT 24.5kg OWNERS MANUAL & QUICK START GUIDE MAX WEIGHT 300kg 1080mm x 1300mm x 470mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
  • Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
  • Page 3 INSTALLATION BOLT 1QTY 1.2 BAR (21-0015-0A) BETWEEN 2QTY WALL MOUNTED PULL UP ARMS (21-0226-0A) ENSURE ALL BOLTS ARE FACING INWARDS. #MADEINBELFAST...
  • Page 4 BOLT ASSEMBLY TO WALL USING 16 QTY SLEEVE ANHOR BOLTS (10.0031) AND 16QTY M10 WASHERS (10-0024) DRILL HOLES AND MOUNT USEING GUIDE AS SHOWN BELOW, TIGHTEN ALL BOLTS TO SPESIFIED TORQUE. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE IN WALL, 90MM DEEP USING PLATE AS A GUIDE.
  • Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
