OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

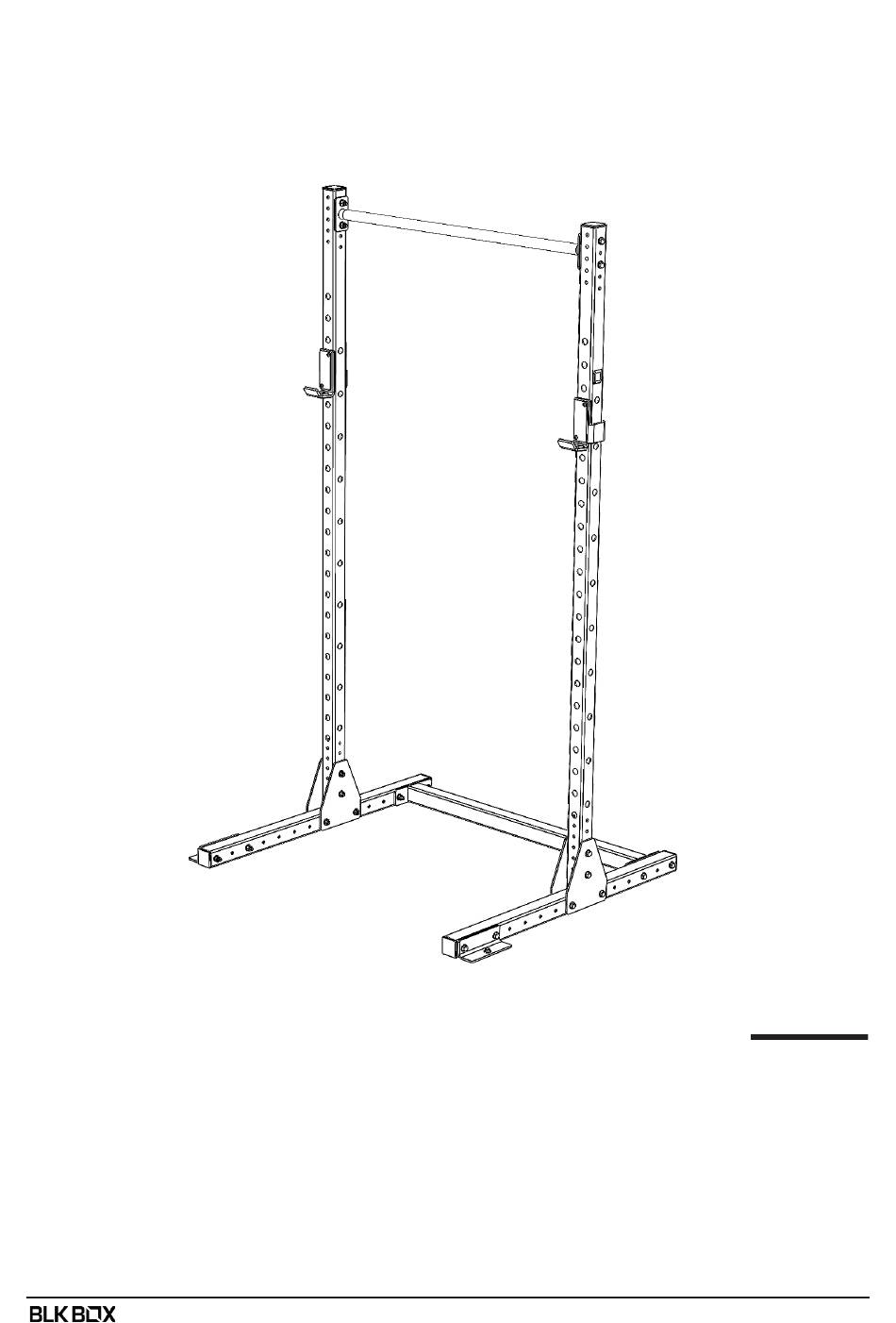

BLACKOUT SQUAT STAND - 2.2M
BLK BOX
21-0113-0E
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
1112mm x 1320mm x 2266mm
-
2312mm x 2820mm x 3076mm
#MADEINBELFAST
55kg
125kg
1
350kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX BLACKOUT
Summary of Contents for BLK BOX BLACKOUT
- Page 1 BLK BOX BLACKOUT SQUAT STAND - 2.2M 21-0113-0E PRODUCT SPECIFICATION PRODUCT WEIGHT 55kg MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 350kg DIMENSIONS 1112mm x 1320mm x 2266mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY BACK CM (21-0602) AND 2QTY BASE FRAME (21-0572) WITH BOLTS ASSEMBLY AS SHOWN. 10.0008 10.0019 x2 10.0024 INSERT 1QTY UPRIGHT (21-0573) INTO SLOT ON BASE FRAME (21-0572) AND ATTACH US- ING 2QTY BRACE PLATE (20-0472) AND BOLT ASSEMBLIES AS SHOWN. ATTACH 1 QTY FOOT PLATE (20-0412) USING BOLT ASSEMBLIES AS SHOWN.
- Page 4 PLACE 1QTY 1.2 SINGLE BAR (21-0015) AT PREFERRED HEIGHT ATTACH WITH BOLT ASSEM- BLIES AS SHOWN. FOLLOW GUIDE BELOW FOR FLOOR MOUNTING. TIGHTEN ALL BOLT ASSEMBLIES TO 30NM. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE, 90MM DEEP USING PLATE AS A GUIDE. -VACUUM OUT THE DUST.
