OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX

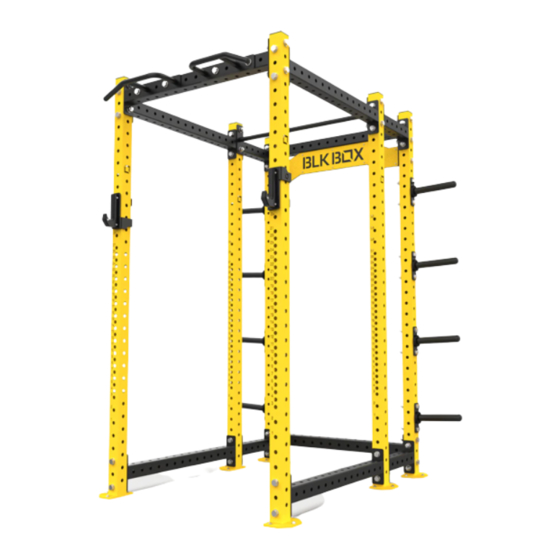

SAMSON FULL RACK
21-0154
PRODUCT SPECIFICATION
-
PRODUCT WEIGHT
-
MAX USER WEIGHT
-
MAX TRAINING WEIGHT
-
DIMENSIONS
-
SAFE WORKING ZONE
300kg
200kg
450kg
1960mm x 1360mm x 2550mm
2960mm x 2360mm x 3000mm
#MADEINBELFAST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX SAMSON 21-0154
Summary of Contents for BLK BOX SAMSON 21-0154
- Page 1 BLK BOX SAMSON FULL RACK 21-0154 PRODUCT SPECIFICATION PRODUCT WEIGHT 300kg MAX USER WEIGHT 200kg OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 450kg DIMENSIONS 1960mm x 1360mm x 2550mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY BRANDING BOX ( 21-0047 ) AND 1QTY 1.2 BOX ( 21-0045 ) BETWEEN 2QTY UP- RIGHTS ( 21-0058 ) WITH BOLTS ASSEMBLY AS SHOWN. ENSURE LOGO ON BRANDING BOX ( 21-0047 ) IS FACING FORWARD, LOGOS ON UPRIGHTS ARE FACING OUT AND ALL BOLTS FACING INWARDS.
- Page 4 BOLT 1QTY 1.2 SINGLE BAR ( 21-0052 ) BETWEEN 2QTY WESTSIDE UPRIGHTS ( 21-0059 & 21-0060 ) AND CONNECT TO EXISTING ASSEMBLY USING 4QTY 0.4 BOX ( 21-0043 ) WITH BOLT ASSEMBLY AS SHOWN. ENSURE LOGO ON UPRIGHTS ARE FACING OUT AND BOLTS ARE FACING INWARD. 10.0010 10.0023 x2 10.0028...
- Page 5 BOLT 1QTY 1.2 BOX ( 21-0045 )TO 1QTY MULTIGRIPS ( 21-0165 ) AND BOLT BETWEEN 2QTY UPRIGHTS ( 21-0059 & 21-0060 ) AND CONNECT TO EXISTING ASSEMBLY USING 4QTY BOX 1.2 BOX ( 21-0045 ) WITH BOLT ASSEMBLY AS SHOWN, ENSURE LOGO ON UPRIGHTS ARE FACING OUT AND BOLTS ARE FACING INWARD.
- Page 6 TIGHTEN ALL BOLT ASSEMBLIES TO SPECIFIED TORQUE. ENSURE ALL UPRIGHTS ARE PLUMB. DRILL AND SECURE THE MIDDLE HOLE ON EACH UPRIGHT AS SHOWN IN GUIDE. REMOVE ALL BOTTOM CROSSMEMBERS, DRILL AND SECURE REMAINING HOLES ON UPRIGHTS AS SHOWN IN GUIDE. REATTACH THE BOTTOM CROSSMEMBERS . SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE THROUGH FLOOR COVERING, 90MM DEEP USING PLATE AS A GUIDE.
- Page 7 BOLT 8QTY UTILITY PEGS ( 21-0234 ) TO 2QTY UPRIGHTS ( 21-0058 ) WITH BOLT ASSEMBLY AS SHOWN. ENSURE THEY ARE TIGHTENED TO 80NM. #MADEINBELFAST...
- Page 8 1:1 SCALE FASTENERS M20 FLAT WASHER M10x80 SLEEVE ANCHOR M20 NYLOCK 10-0031 M10 FLAT WASHER M20x120 BOLT FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 DISCOVER MORE AT: EMAIL: info@blkboxfitness.com www.blkboxfitness.com #MADEINBELFAST...
