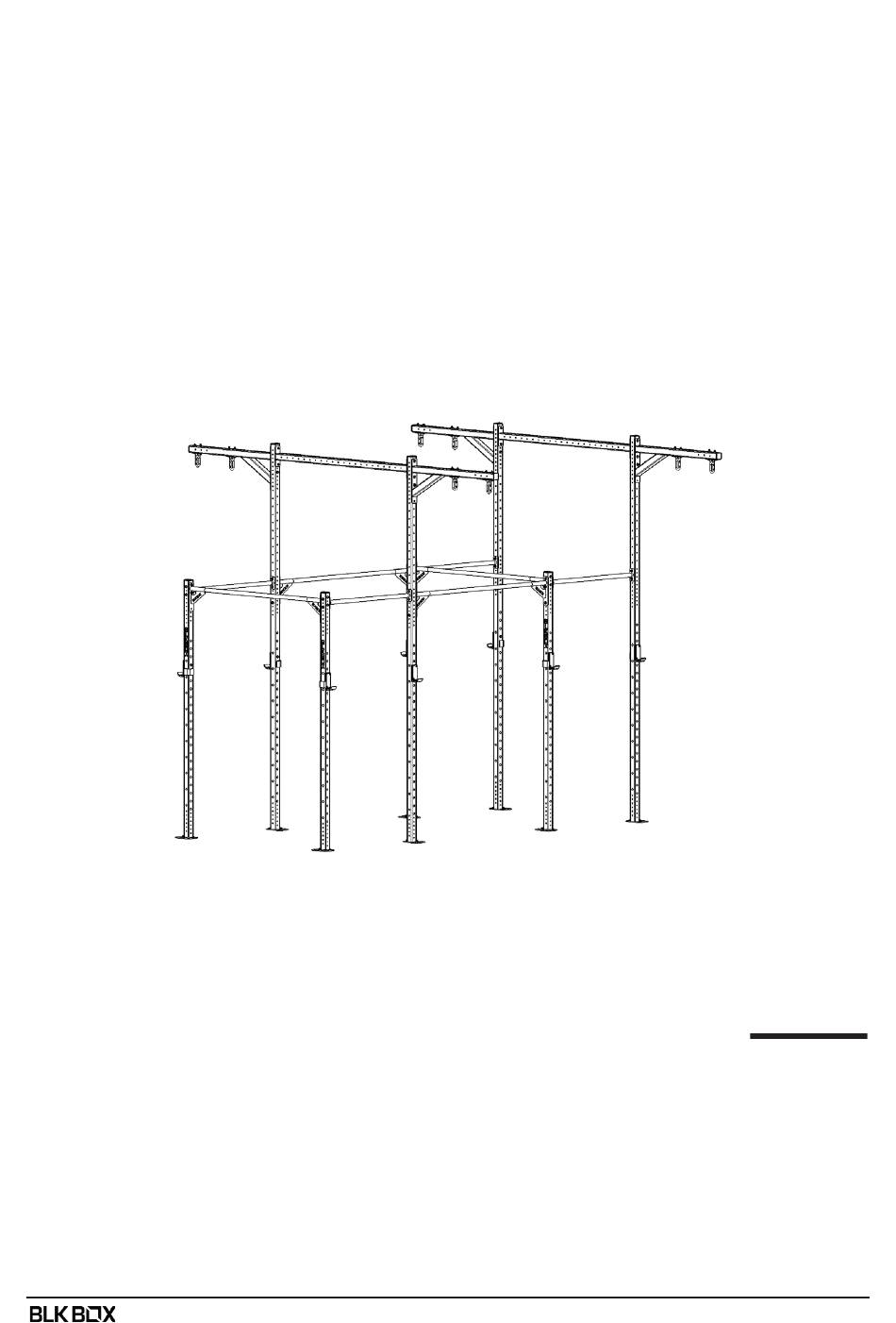

GOLIATH FREE STANDING FUNCTIONAL RIG
OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
4 BAY
21-0815
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
PRODUCT SPECIFICATION
-
-
-
-
-
4260mm x 4020mm x 3614mm
#MADEINBELFAST
225kg
125kg
4
300kg
Advertisement
Table of Contents
Related Manuals for BLK BOX GOLIATH 21-0815
Summary of Contents for BLK BOX GOLIATH 21-0815
- Page 1 BLK BOX GOLIATH FREE STANDING FUNCTIONAL RIG 4 BAY 21-0815 PRODUCT SPECIFICATION PRODUCT WEIGHT 225kg 125kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 4260mm x 4020mm x 3614mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BOLT 1QTY 1.8 SINGLE BAR CM (21-0028) BETWEEN 2QTY 2.4 UPRIGHTS (21-0036), AND BOLT 2QTY 1.2 SINGLE BAR CM (21-0126) WITH BOLTS ASSEMBLY AS SHOWN. ENSUE LOGO ON UPRIGHTS ARE FACING OUTWARD AND ALL BOLTS FACING INWARDS. BOLT 1QTY 1.8 BOX CM (21-0025) AND 2QTY GOLIATH ARM (21-0235) TO 2QTY 3.6 UPRIGHT (21-0038).
- Page 4 BOLT 2QTY 1.8 SINGLE BAR (21-0028) TO THE SIDE OF THE 3.6 UPRIGHT (21-0038) REUSING BOLT ASSEMBLY AS SHOWN. ENSURE THAT BOLTS ARE FACING INWARD. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 5 REPEAT STEP 1 FOR ADDITIONAL BAY, BOLT TO 2QTY 1.8 SINGLE BAR (21-0038) TIGHTEN ALL BOLT ASSEMBLIES TO 30Nm TORQUE. ENSURE UPRIGHTS ARE PLUMB. DRILL AND SECURE UPRIGHTS, AS SHOWN IN GUIDE. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE, 90MM DEEP USING PLATE AS A GUIDE.
- Page 6 REPEAT FIRST THREE STEPS FOR ADDITIONAL BAYS. 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com...
