OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX

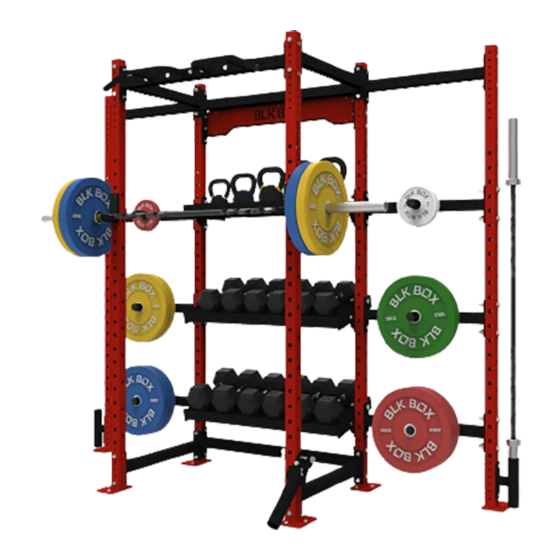

DOUBLE HALF RACK GOLIATH
21-0110-0G
PRODUCT SPECIFICATION
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
-
-
-
-
-
1200mm x 2408mm x 980mm
-
2700mm x 3272mm x 3580mm
#MADEINBELFAST
170kg
125kg
2
300kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Goliath and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLK BOX Goliath

Summary of Contents for BLK BOX Goliath

  • Page 1: Product Specification

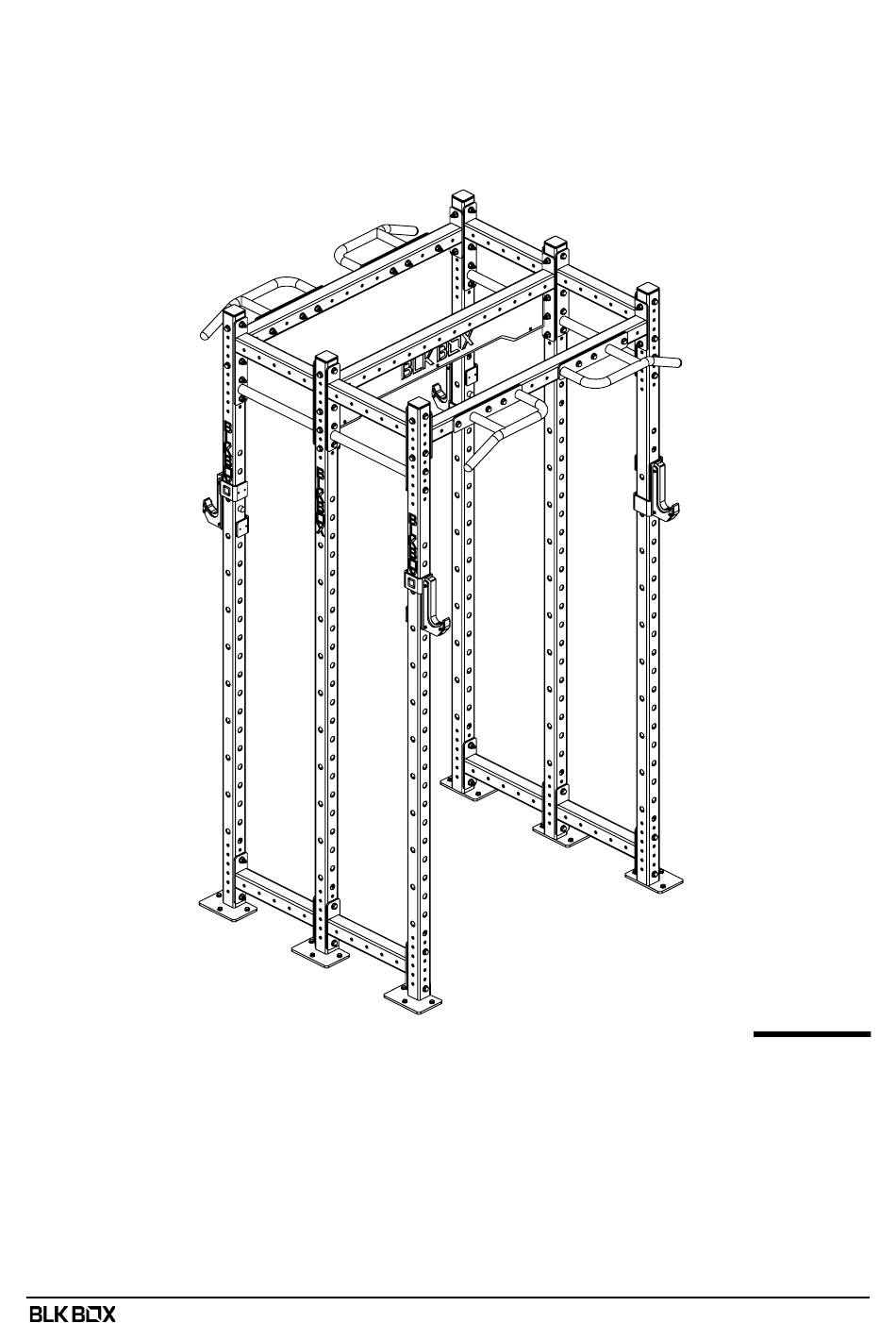

    BLK BOX DOUBLE HALF RACK GOLIATH 21-0110-0G PRODUCT SPECIFICATION 170kg PRODUCT WEIGHT 125kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 1200mm x 2408mm x 980mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
  • Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
  • Page 3 ASSEMBLY BOLT 1QTY 1.2 DOUBLE BRANDING BOX (21-0018-0D] AND 1QTY 1.2 BOX (21-0013-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) WITH BOLTS ASSEMBLY AS SHOWN. ENSURE LOGOS ON UPRIGHTS ARE FACING OUTWARDS AND ALL BOLTS FACING INWARDS. 10.0008 10.0019 x2 10.0024 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
  • Page 4 BOLT 1QTY 1.2 BOX (21-0013-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) AND CONNECT TO EXISTING ASSEMBLY USING 2QTY 0.4 BOX & BAR (21-0009-0A) AND 2QTY 0.4 BOX (21-0036-0A) WITH BOLT ASSEMBLY AS SHOWN. BOLT 1QTY MULTIGRIPS (21-0151-0A) TO 1QTY 1.2 BOX (21-0013-0A) WITH BOLT ASSEMBLY AS SHOWN ENSURE LOGO ON UPRIGHTS ARE FACING OUTWARDS AND BOLTS ARE FACING INWARD.
  • Page 5 BOLT 1QTY 1.2 BOX (21-0013-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) AND CONNECT TO EXISTING ASSEMBLY USING 2QTY 0.4 BOX & BAR (21-0009-0A) AND 2QTY 0.4 BOX (21-0036-0A) WITH REUSED BOLT ASSEMBLYS AS SHOWN. BOLT 1QTY MULTIGRIPS (21-0151-0A) TO 1QTY 1.2 BOX (21-0013-0A) WITH BOLT ASSEMBLY AS SHOWN ENSURE LOGO ON UPRIGHTS ARE FACING OUT AND BOLTS ARE FACING INWARD.
  • Page 6 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO SPECIFIED TORQUE. ENSURE ALL UPRIGHTS ARE PLUMB. DRILL AND SECURE THE MIDDLE HOLE ON EACH UPRIGHT AS SHOWN IN GUIDE. REMOVE ALL BOTTOM CROSSMEMBERS, DRILL AND SECURE REMAINING HOLES ON UPRIGHTS AS SHOWN IN GUIDE. REATTACH THE BOTTOM CROSSMEMBERS . SLEEVE ANCHOR BOLT FITTING -DRILL...
  • Page 7 TIGHTEN ALL BOLT ASSEMBLIES WITHIN THE CIRCLE TO SPECIFIED TORQUE. #MADEINBELFAST...
  • Page 8 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
