OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
BASE CAMP
PRODUCT WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
1860mm x 1768mm x 700mm
-
2360mm x 2268mm x 1700mm
#MADEINBELFAST
120kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX BASE CAMP
Summary of Contents for BLK BOX BASE CAMP
- Page 1 BLK BOX BASE CAMP PRODUCT SPECIFICATION OWNERS MANUAL & QUICK START GUIDE PRODUCT WEIGHT 120kg 1860mm x 1768mm x 700mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. 2360mm x 2268mm x 1700mm SAFE WORKING ZONE...
-
Page 2: Tools Required

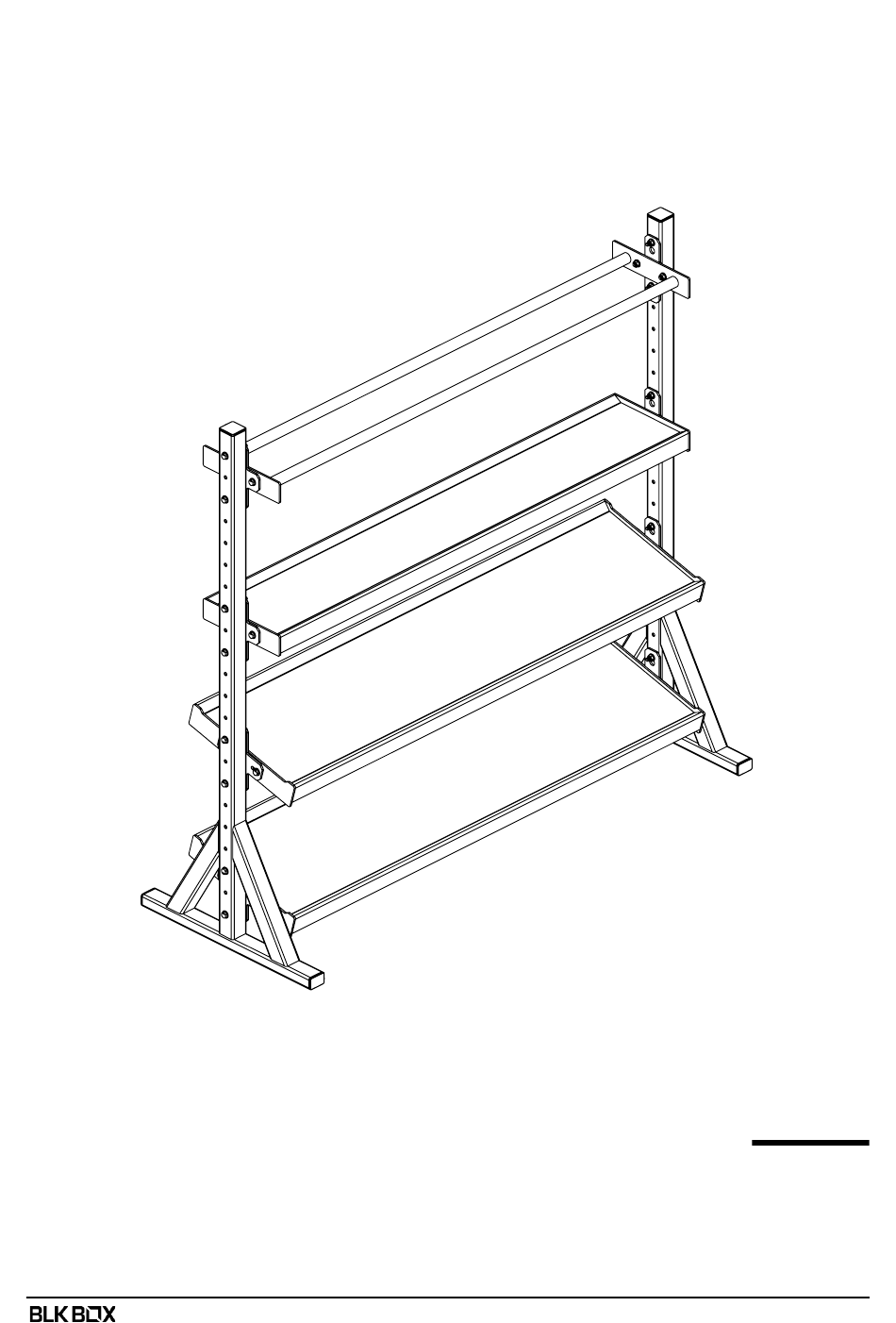

WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 4QTY FLAT SIDE PLATE (20-0049-0A) AND 4QTY ANGLED SIDE PLATE (20-0048-0B) TO 2QTY BASECAMP UPRIGHT FRAMES (21-0088-0A) WITH BOLTS ASSEMBLY AS SHOWN. ALL BOLTS FACING INWARDS. 10.0008 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 4 BOLT 1QTY 1.8 BALL SHELF (21-0064-0A) 1QTY 1.8 FLAT SHELF (21-0065-0B) AND 2QTY 1.8 DUMBELL SHELF (21-0066-0B) BETWEEN 2QTY BASECAMP UPRIGHT FRAME (21-0088-0A) WITH BOLTS ASSEMBLY AS SHOWN. ALL BOLTS FACING INWARDS. TIGHTEN ALL BOLTS TO SPECIFIED TORQUE. NOTE, DB AND KB SHELVE BOLTS ARE ON THE UNDERSIDE.
- Page 5 1:1 SCALE FASTENERS M10x90 BOLT 10-0008 M10x30 BOLT 10-0001 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 6 THIS IS A BLANK PAGE #MADEINBELFAST...
- Page 7 THIS IS A BLANK PAGE #MADEINBELFAST...
