Summary of Contents for TOORX WBX60

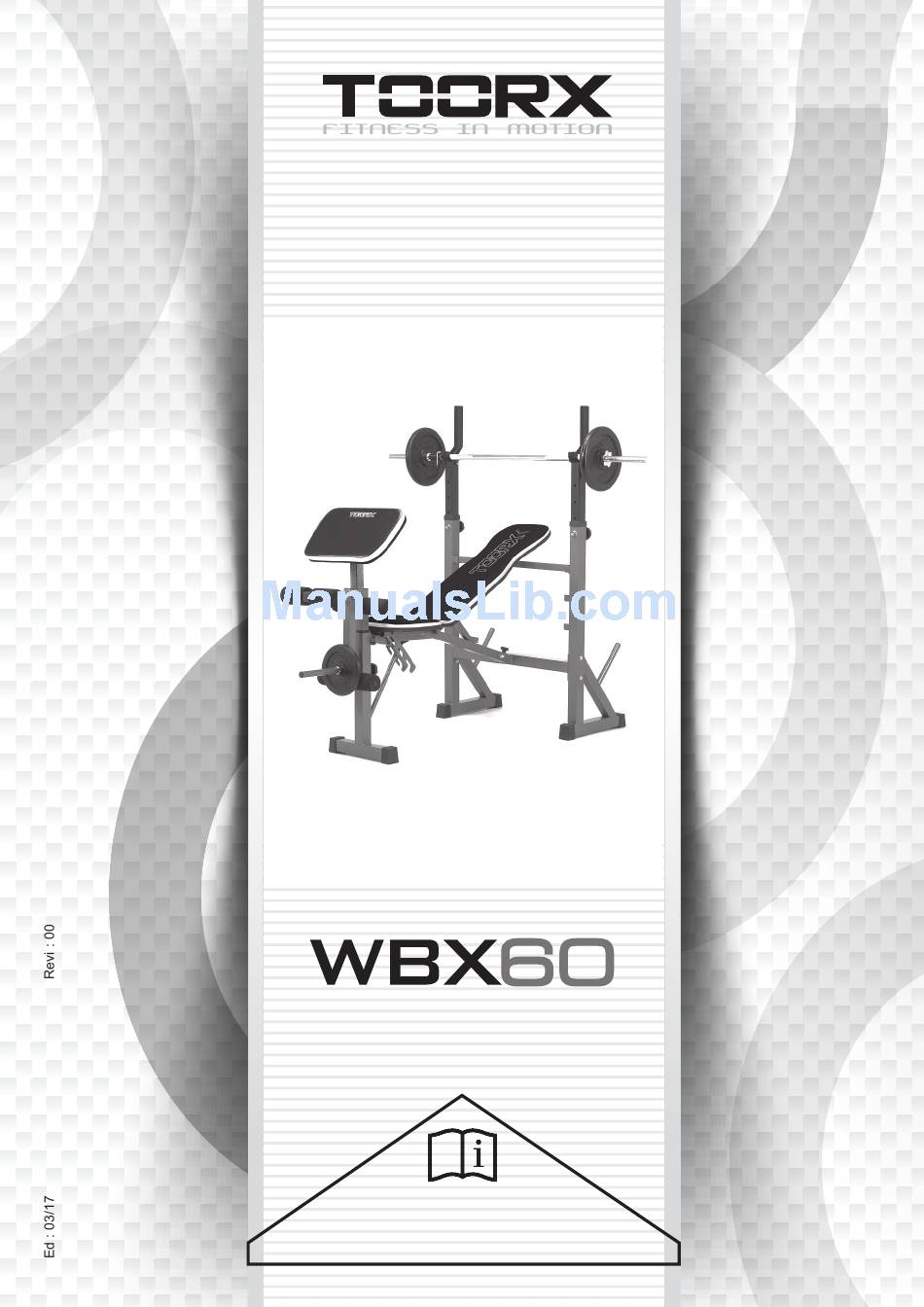

- Page 1 INSTRUCTION...
- Page 2 PARTS LISTING DESCRIPTION DESCRIPTION 31 Square End Cap (□25) Left upright 32 Sleeve (□50V□45) Right upright 33 Sleeve (□50V□38) Cross Bar Adjustment Upright 34 Bumper (Φ25) Main Frame 35 Bumper Front Upright 36 Handle Grip Leg Extension Support 37 Pulley Leg Extension 38 Pulley Cover Adjustment Tube...
- Page 4 STEP1 Attach both Left/Right Uprights (01 &02) to the Cross Bar (03) using four Hex Bolts (49),eight Flat Washers (58) and four Nylon Lock Nuts (56). Insert Adjustment Upright (04) to each Uprights (01 & 02) with Knob Bolt (41).Attach the Safety Hook (44 &...
- Page 5 STEP 3 Attach the Seat Adjustment Bar (14) beams to the Seat Tube (12), at the same time attach the Seat Tube (12) to the Maine Frame (05) as illustrated.Attch the Seat to Seat Tube (12) using four Hex Bolts (53) and four Flat Washers (59).
- Page 6 STEP 6 Attach Arm Curl (25) to the Arm Curl Tube (15) using two Flat Washers (59) and two Hex Bolts (54) . Insert Arm Curl Tube (18) into the Front Upright (06) and tighten the Knob Bolt (41) for you needed...
- Page 7 STEP 7 With Lat Tower Cable (39) in groove of Pulley(37).thread the Lat Tower Cable (39) through Lat Tower Tube Upper(19) bracket. Attach the Pulley (37) and Pulley Covers (38) to Lat Tower Tube Upper (19) bracket using one Hex Bolt (51), two Flat Washers (58) and one Nylon Nut (56).
- Page 8 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
