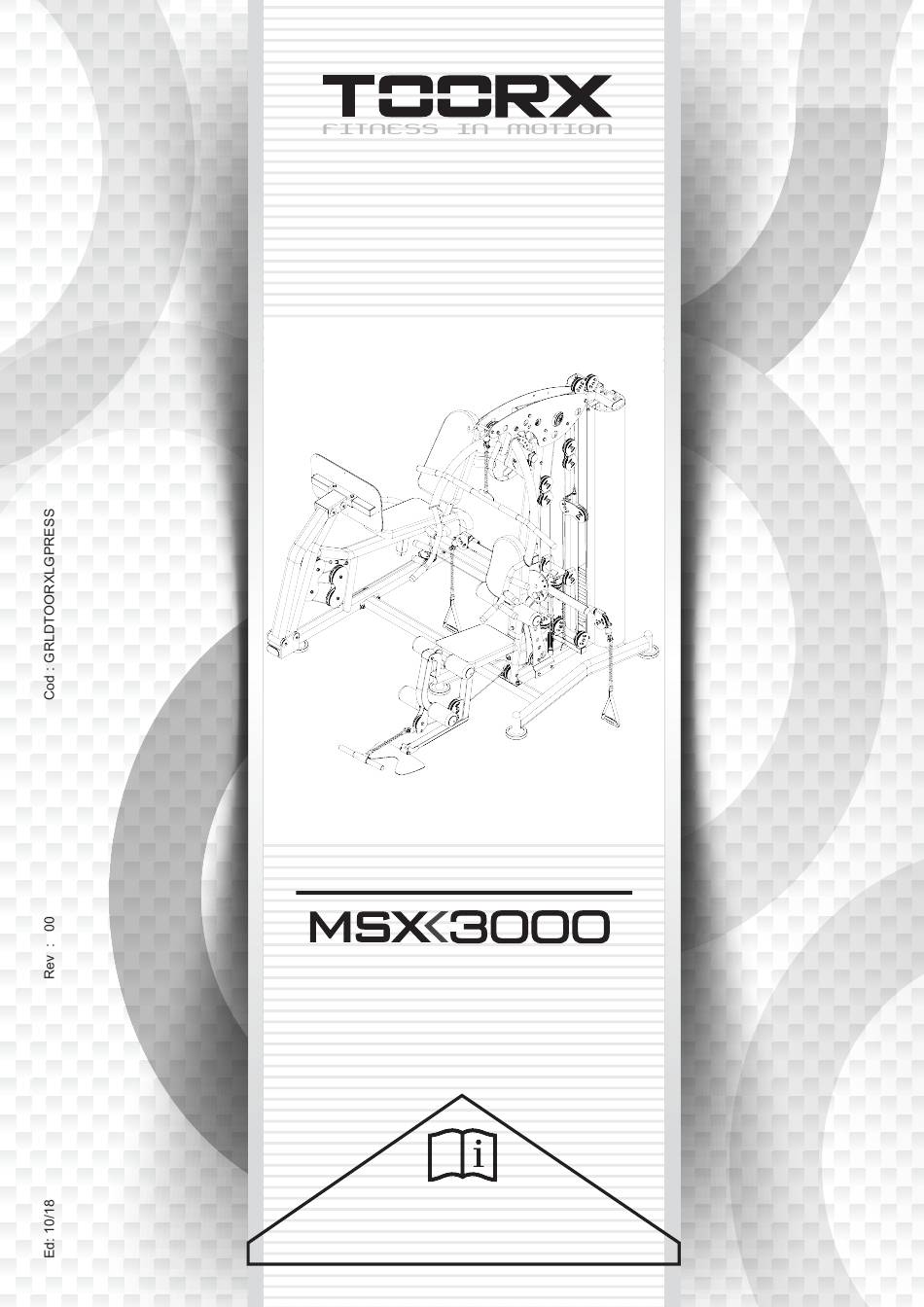

- Page 1 INSTRUCTION LEG PRESS...
-
Page 2: Table Of Contents
Table of Contents Spare parts list ..............................3 Spare parts list ..............................4 Spare parts drawing ............................5 Fasteners drawing ............................6 Assembly step（1） ............................7-8 Assembly step（2） ............................. 9-10 Assembly step（3） ........................... 11-12 Assembly step（4） ........................... 13-15 Assembly step（5） ........................... 16-17 Assembly step（6）... -
Page 3: Spare Parts List
Spare parts list Description Note Qty. washer Φ10 lock nut washer Φ8 locking spring knob Φ10 washer Φ12 lock nut lock nut hexagon bolt M10*25 big washer Φ25*10*2.0 hexagon bolt M10*45 pulley Φ95*26 hexagon bolt M10*75 spring washer Φ8 foot margin cover Φ120 oval tube plug 50-100... -
Page 4: Spare Parts List
Spare parts list Description Note Qty. support tube footplate tube hexagon bolt M10*50 big pulley Φ127*28 leg press cable L:3255mm hexagon bolt M8*20 hexagon bolt M8*70 leg press seat cushion adjust frame leg press seat cushion leg press handle hexagon bolt M8*25 leg press back cushion adjust frame leg press back cushion... -
Page 5: Spare Parts Drawing
Spare parts drawing... -
Page 6: Fasteners Drawing
Cable drawing Fasteners drawing Bolt length measurement ruler... -
Page 7: Assembly Step（1
Assembly step（1）explosion drawing No. Description Note Qty. washer Φ12 lock nut 125 leg press main frame leg press front connection tube leg press back connection tube 128 connection plate arc-shaped connection plate 130 spring washer Φ12 131 hexagon bolt M12*30 132 hexagon bolt M12*80 133 hexagon bolt... - Page 8 Assembly step（1）drawing Assembly step（1）assembly instruction 1. Fix leg press front connection tube(126) fastening on ground frame using: M12*30 hexagon bolt(131),Ф12 spring washer(130),Ф12 washer(20) 2. Fix leg press back connection tube(127) fastening on ground frame using: M12*80 hexagon bolt(132), Ф12 washer(20),M12 lock nut(21),connection plate(128) 3.
-
Page 9: Assembly Step（2
Assembly step（2）explosion drawing No. Description Note Qty. 134 leg press support tube-1 135 leg press support tube-2 136 shaft Φ25*125 137 plug hexagon socket button M10*25 head bolt... - Page 10 Assembly step（2）drawing Assembly step（2）assembly instruction 1. Fix leg press support tube-1(134) on leg press main frame using: Ф25*125shaft(136),plug(137),M10*25 hexagon socket button head bolt (138) 2. Fix leg press support tube-2(135) on leg press main frame using: Ф25*125shaft(136),plug(137),M10*25 hexagon socket button head bolt (138) CAUTION: All bolts should be tightening.
-
Page 11: Assembly Step（3
Assembly step（3）explosion drawing No. Description Note Qty. lock nut big washer Φ25*10*2.0 hexagon bolt M10*75 137 plug hexagon socket button M10*25 head bolt 139 shaft Φ25*125 140 support tube 141 footplate tube... - Page 12 Assembly step（3）drawing Assembly step（3）assembly instruction 1. Fix leg press support tube-1 on support tube(140) using: Ф25*115shaft(139),plug(137),M10*25 hexagon socket button head bolt (138) 2. Fix leg press support tube-2 on support tube(140) using: Ф25*115shaft(139),plug(137),M10*25 hexagon socket button head bolt (138) 3. Fix footplate tube fastening on support tube(140) using: M10*75 hexagon bolt(65),Ф10 big washer(35),M10 lock nut(23) CAUTION: All bolts should be tightening.
-
Page 13: Assembly Step（4
Assembly step（4）explosion drawing... - Page 14 Assembly step（4）cable drawing No. Description Note Qty. washer Φ10 Drawing 01 washer Φ12 lock nut hexagon bolt M10*25 hexagon bolt M10*45 pulley Φ95*26 142 hexagon bolt M10*50 143 big pulley Φ127*28 144 leg press cable L:3255mm 162 hexagon bolt M10*40 163 cable adjust sleeve Drawing 02 Drawing 03...
- Page 15 Assembly step（4）drawing low pull cable Assembly step（4）assembly instruction 1. Fix leg press cable flat end fastening on low pull cable using: M10*25 hexagon bolt(30),Ф10 washer(5),M10 lock nut(23) as show in drawing 01 2. Leg press cable(144) thread end start through from point A in order B,C,D,E,F 3.
-
Page 16: Assembly Step（5
Assembly step（5）explosion drawing No. Description Note Qty. lock nut washer Φ8 locking spring knob Φ10 spring washer Φ8 145 hexagon bolt M8*20 146 hexagon bolt M8*70 leg press seat cushion adjust frame 148 leg press seat cushion 149 leg press handle... - Page 17 Assembly step（5）drawing Assembly step（5）assembly instruction 1. Fix leg press handle(149 fastening on leg press seat cushion adjust frame(147) using: M8*70 hexagon bolt(146),Ф8 washer(15),M8 lock nut(11) 2. Fix leg press seat cushion(148) on leg press seat cushion adjust frame(147) using: M8*20 hexagon bolt(145),Ф8 spring washer(72),Ф8 washer(15) 3.
-
Page 18: Assembly Step（6
Assembly step（6）explosion drawing No. Description Note Qty. washer Φ8 locking spring knob Φ10 spring washer Φ8 145 hexagon bolt M8*20 150 hexagon bolt M8*25 leg press back cushion adjust frame 152 leg press back cushion... - Page 19 Assembly step（6）drawing Assembly step（6）assembly instruction 1. Fix leg press back cushion(152) on leg press back cushion adjust frame(151) using: M8*20 hexagon bolt(145),Ф8 spring washer(72),Ф8 washer(15) 2. Slide leg press back cushion adjust frame(151) to leg press main frame using locking spring knob(18) 3.
-
Page 20: Explosion Drawing
Explosion drawing CAUTION: Please check machine all bolt, lock nut, pull pin whether tighten, tighten can use. -
Page 21: Factory Assembly Explosion Drawing
Factory assembly drawing No. Description Note Qty. foot margin cover Φ120 oval tube plug 50-100 □50-40L reduction sleeve hexagon socket M8*16 button head bolt 153 oval reduction sleeve 50-100 154 cone rubber cushion Φ42*Φ32*26 No. Description Note Qty. 155 square plug □50*50*2.0 “+"slotted M6*10... - Page 22 Factory assembly drawing No. Description Note Qty. 158 bearing 6005 No. Description Note Qty. 158 bearing 6005...
- Page 23 Factory assembly drawing No. Description Note Qty. □25*50 100 inner plug No. Description Note Qty. 159 handle grip Φ25 160 handle Φ40*Φ25*29 “-"slotted headless M4*5 bolt...
- Page 24 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy contact@toorxprofessional.it www.toorxprofessional.it...
