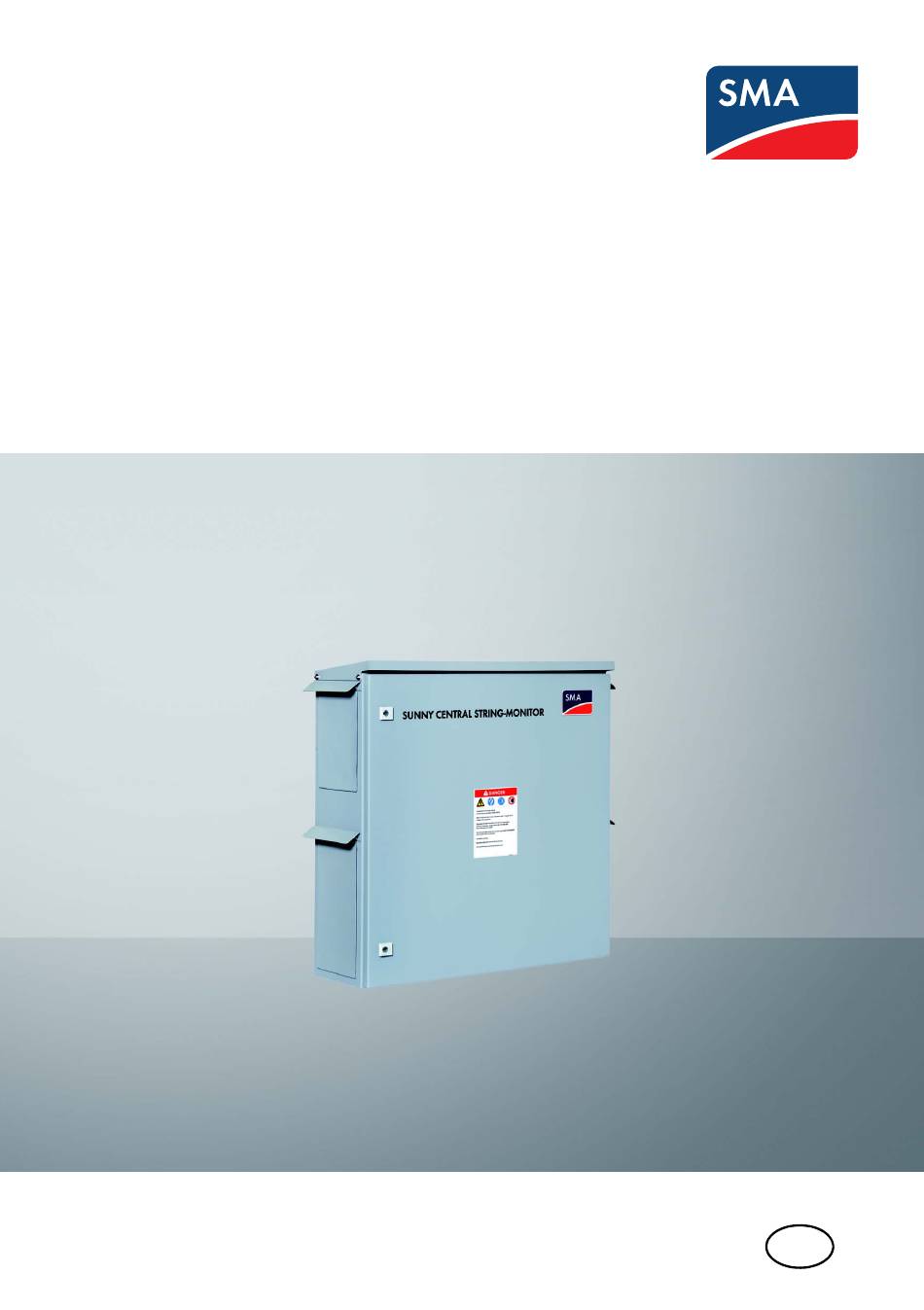

- Page 1 Sunny Central Accessories SUNNY CENTRAL STRING-MONITOR US Technical Description SSMUS-TUS094511 | 98-4001411 | Version 1.1...
- Page 3 (with no limitation) any implied warranties of utility, merchantability, or fitness for any particular purpose. All such warranties are expressly disclaimed. Neither SMA America nor its distributors or dealers shall be liable for any indirect, incidental, or consequential damages under any circumstances.
- Page 4 A Warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury.
- Page 5 SMA Solar Technology AG Other Symbols In addition to the safety and hazard symbols described on the previous pages, the following symbol is also used in this Installation Guide: Information This symbol accompanies notes that call attention to supplementary information that you should know and use to ensure optimal operation of the system.
- Page 6 Code Part II. The Sunny Central String-Monitor contains no user-serviceable parts. For all repair and maintenance always contact an authorized SMA Service Center. Before installing or using the Sunny Central String-Monitor, read all of the instructions, cautions, and warnings on the Sunny Central String-Monitor, the PV array, in this Installation Guide and in User Manual.
-
Page 7: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents About this Manual ....... 11 Target Group . - Page 8 Table of Contents SMA Solar Technology AG 6.2.1 Connecting the Data Cable in the Sunny Central String-Monitor ..33 6.2.2 Grounding the Shield of the Data Cable ......34 6.2.3...
- Page 9 SMA Solar Technology AG 10.1 Opening Sunny Central String-Monitor ....58 10.2 Closing the Sunny Central String-Monitor....59 Operation of the Sunny Central String-Monitor .
- Page 10 SMA Solar Technology AG SSMUS-TUS094511 Technical Description...
-
Page 11: About This Manual
About this Manual 1 About this Manual The manual describes how to install and commission the Sunny Central String-Monitor US. For the purposes of this manual, the Sunny Central String-Monitor US is referred to as Sunny Central String- Monitor. 1.1 Target Group This manual is for qualified personnel. -
Page 12: Security
Security SMA Solar Technology AG 2 Security 2.1 Appropriate Usage The Sunny Central String-Monitor is a Smart-Combiner. Depending on the versions, the box provides the possibility to directly connect 24, 32 or 64 strings and to link them with the Sunny Central inverter. -
Page 13: Safety Precautions
• to connect voltage sources to the Sunny Central String-Monitor other than those consisting of PV modules, • to modify the Sunny Central String-Monitor or to install components that are not explicitly recommended by SMA or sold by SMA for this purpose! 2.2 Safety Precautions DANGER Improper performance of the tasks described in this manual. - Page 14 Security SMA Solar Technology AG NOTICE Electrostatic discharges possible when components are touched. Damage to components. • Follow ESD protective provisions. • Remove existing electrostatic charges by touching a grounded metal surface (e.g. housing). Storage of the Documentation The documentation must be kept in the immediate vicinity of the Sunny Central String- Monitor.
-
Page 15: Unpacking
If it becomes necessary to return the Sunny Central String-Monitor USA, use the original packing material. If you need assistance with a damaged Sunny Central String-Monitor, contact your SMA dealer or SMA America. Contact information for SMA America is provided in chapter 14 "Contact"... -
Page 16: Identifying The Sunny Central String-Monitor
Unpacking SMA Solar Technology AG 3.3 Identifying the Sunny Central String-Monitor The Sunny Central String-Monitor can be identified with SMA Solar Technology AG the type label (see image on the right). The type label is www.SMA.de located on the inside of the Sunny Central String-Monitor... -
Page 17: Mounting
SMA Solar Technology AG Mounting 4 Mounting This section provides guidelines to help you select the best mounting location, suggestions to insure optimum performance, cautions and warnings that you should follow to avoid injury and/or equipment damage, and step-by-step instructions for mounting a Sunny Central String-Monitor. -
Page 18: Dimensions And Weight
Mounting SMA Solar Technology AG 4.1.2 Dimensions and Weight The Sunny Central String-Monitor version 24 weighs 143 lbs. (65 kg) version 32 weighs 146 lbs. (66 kg), version 64 weighs 194 lbs. (88 kg). The mounting location must be suitable for the weight of the Sunny Central String-Monitor. -
Page 19: Permissible Slanting
SMA Solar Technology AG Mounting 4.1.4 Permissible Slanting The Sunny Central String-Monitor must be mounted vertically. • Never install the device with a backward tilt. • Never install the device with a forward tilt. • Do not install horizontally. 4.1.5 Mounting to PV Module Racks The Sunny Central String-Monitor can be mounted to the back of module racks. -
Page 20: Mounting To A Pole
Mounting SMA Solar Technology AG 4.2 Mounting to a Pole 4.2.1 Mounting the Sunny Central String-Monitor to a pole (square) The Sunny Central String-Monitor can be mounted to a square or round pole. An installation kit for pole mounting is included in the Sunny Central String-Monitor accessories kit. This section describes mounting to a square pole. - Page 21 SMA Solar Technology AG Mounting 1. Securely screw the 4 threaded bolts into the internal threads of the mounting rail in a clockwise direction. 2. Lift the Sunny Central String-Monitor to the mounting position on the pole. 3. Slide pole mounts at top and bottom with the closed side to the threaded bolts.
-
Page 22: Mounting The Sunny Central String-Monitor To A Pole (Round)
Mounting SMA Solar Technology AG 4.2.2 Mounting the Sunny Central String-Monitor to a pole (round) The Sunny Central String-Monitor can be mounted to a square or round pole. An installation kit for pole mounting is included in the Sunny Central String-Monitor accessories kit. This section describes mounting to a round pole. - Page 23 SMA Solar Technology AG Mounting 3. Slide pole mounts top and bottom with the V opening on the threaded bolts. 4. Slide washers onto the threaded bolts. 5. Screw the nuts onto the threaded bolts. 6. Tighten the nuts in a clockwise direction with a torque of 89 in-lb.
-
Page 24: Mounting To A Wall
Mounting SMA Solar Technology AG 4.3 Mounting to a Wall Make sure that the wall you choose to mount the Sunny Central String-Monitor on is sturdy enough to support its weight (143 lbs. (65 kg), 146 lbs. (66 kg) or 194 lbs. (88 kg)) over a long period of time and that the wall is plump. - Page 25 SMA Solar Technology AG Mounting Distance of the holes 32.28 in. (820 mm) 32.28 in. (820 mm) Used mounting material Attaching to the Sunny Central String-Monitor Screws: 1/4" stainless steel screws Attaching to the wall Screws 5/16" wood screw, length 2"...
-
Page 26: Mounting The Sunny Central String-Monitor To A Wall
Mounting SMA Solar Technology AG 4.3.1 Mounting the Sunny Central String-Monitor to a wall Mounting bracket Two mounting rails are attached to the rear side of the Sunny Central String-Monitor. The mounting rail is attached to the Sunny Central String-Monitor right and left with nuts. - Page 27 SMA Solar Technology AG Mounting 8. Insert wall anchors into the drill holes. 9. Attach the Sunny Central String-Monitor to the wall using screws and washers. 10. Tighten the screws clockwise using a torque of 133 in-lb (15 Nm). ☑ The Sunny Central String-Monitor is now mounted to the wall.
-
Page 28: Attaching The Cable Conduits
Attaching the Cable Conduits SMA Solar Technology AG 5 Attaching the Cable Conduits NOTICE Infiltration of water during the mounting and installation of the product. Damage to the product. • Do not open the Sunny Central String-Monitor when it is raining or when there is very high humidity (>95 %). -
Page 29: Communication Connector
2 x 2 x AWG 24. Flexible PVC insulation Shielding (copper shielding braid) Twisted Pair 1 (2 x AWG 24) Twisted Pair 2 (2 x AWG 24) Recommendation data cable SMA also provides communication cables. Please contact your installer or wholesaler. Technical Description SSMUS-TUS094511... -
Page 30: Preparing The Data Cable
Communication connector SMA Solar Technology AG 6.1 Preparing the Data Cable Three wires of the data cable, GND (2), Data+ (3), and Data– (4), are required for the connection. Data+ and Data– must be a twisted pair. 1. Remove the insulation of the data cable by approx. - Page 31 SMA Solar Technology AG Communication connector 6. Tighten the screw terminal using a screwdriver. The required torque is 2.2 in-lb (0.25 Nm). 7. Pull the wires to check that it is securely in place. 8. Note down the wire color: Data+ Data–...
-
Page 32: Communication Connector Sunny Central String-Monitor
Communication connector SMA Solar Technology AG 6.2 Communication Connector Sunny Central String-Monitor The data cable of the communication bus is attached with a plug at the top of the Sunny Central String-Monitor. Two sockets are present in the Sunny Central String-Monitor for this purpose. -
Page 33: Connecting The Data Cable In The Sunny Central String-Monitor
SMA Solar Technology AG Communication connector 6.2.1 Connecting the Data Cable in the Sunny Central String- Monitor 1. Open the Sunny Central String-Monitor 2. Prepare the data cable as described in section 6.1 "Preparing the Data Cable" (page 30). 3. Draw the data cable into the Sunny Central String- Monitor (see section 5 "Attaching the Cable... -
Page 34: Grounding The Shield Of The Data Cable
Communication connector SMA Solar Technology AG 6.2.2 Grounding the Shield of the Data Cable The shield of the data cable is placed on the shield rail (F) in the Sunny Central String-Monitor. 1. Put the cable shield onto the shield rail. -
Page 35: Communication Connector Sunny Central
SMA Solar Technology AG Communication connector 6.3 Communication Connector Sunny Central NOTICE Disregarding the proper order when connecting the communication bus. Damage to the communication bus. • Only connect the data cable in the Sunny Central after all Sunny Central String- Monitors are connected to the communication bus (see section 6.2 "Communication... -
Page 36: Grounding The Shield Of The Data Cable
Communication connector SMA Solar Technology AG 6.3.2 Grounding the Shield of the Data Cable The data cable shielding is fitted into the shielding clamp (A) of the 485 RJ45 clamp in the Sunny Central. SUNNY WEBBOX SUNNY CENTRAL 485HUB SUNNY CENTRAL... -
Page 37: Electrical Connection
SMA Solar Technology AG Electrical Connection 7 Electrical Connection NOTICE Electrostatic discharges possible when components are touched. Damage to components. • Follow ESD protective provisions. • Remove existing electrostatic charges by touching a grounded metal surface (e.g. housing). 7.1 Connection area Position... -
Page 38: Connecting Ground
Electrical Connection SMA Solar Technology AG Position Description Negative grounding: Screw terminals for DC+ of the PV generator Positive grounding: Screw terminals for DC– of the PV generator Use 90 °C (194 °F) copper wire for all DC wiring connections to the fuse holders. -
Page 39: Pv Modules: Connecting Ground
SMA Solar Technology AG Electrical Connection 7.2.1 PV modules: Connecting ground The PV modules are grounded at the lower screw terminals (A) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 0.3 in. (8 mm). 0.3 in. 2. Open the screw terminal with a screwdriver counterclockwise. -
Page 40: Sunny Central: Connecting Ground
Electrical Connection SMA Solar Technology AG 7.2.2 Sunny Central: Connecting ground The grounding cable of the Sunny Central is connected to the terminals (A) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 1.1 in. (28 mm). 1.1 in. -
Page 41: Connecting Pv Modules - Negative Grounding
SMA Solar Technology AG Electrical Connection 7.3 Connecting PV modules - negative grounding The PV modules may not be connected until the communication cables have been connected (see section 6 "Communication connector" (page 29)). The Photovoltaic System Grounding shall be installed per the requirements of sections 690.41 through 690.47 of the National Electrical Code, ANSI/NFPA 70 and is the responsibility of the... -
Page 42: Pv Modules: Connecting Dc
Electrical Connection SMA Solar Technology AG 7.3.1 PV modules: Connecting DC– The DC– cables of the PV modules are connected at the medium screw terminals (A) in the Sunny Central String- Monitor. 1. Strip the cable by approx. 0.3 in. (8 mm). -
Page 43: Pv Modules: Connecting Dc
SMA Solar Technology AG Electrical Connection 7.3.2 PV modules: Connecting DC+ The DC+ cables of the PV modules are connected at the fuse holders (A) in the Sunny Central String-Monitor. Use 90 °C (194 °F) copper wire for all DC wiring connections to the fuse holders. -
Page 44: Connecting The Pv Modules - Positive Grounding
Electrical Connection SMA Solar Technology AG 7.4 Connecting the PV modules - positive grounding The PV modules may not be connected until the communication cables have been connected (see section 6 "Communication connector" (page 29)). The Photovoltaic System Grounding shall be installed per the requirements of sections 690.41 through 690.47 of the National Electrical Code, ANSI/NFPA 70 and is the responsibility of the... -
Page 45: Pv Modules: Connecting Dc
SMA Solar Technology AG Electrical Connection 7.4.1 PV modules: Connecting DC+ The DC+ cables of the PV modules are connected at the medium screw terminals (A) in the Sunny Central String- Monitor. 1. Strip the cable by approx. 0.3 in. (8 mm). -
Page 46: Pv Modules: Connecting Dc
Electrical Connection SMA Solar Technology AG 7.4.2 PV modules: Connecting DC– The DC– cables of the PV modules are connected at the fuse holders (A) in the Sunny Central String-Monitor. Use 90 °C (194 °F) copper wire for all DC wiring connections to the fuse holders. -
Page 47: Connecting Sunny Central - Negative Grounding
SMA Solar Technology AG Electrical Connection 7.5 Connecting Sunny Central - negative grounding The Sunny Central may not be connected until the communication and the PV modules have been connected (see section 6 "Communication connector" (page 29), section 7.2 "Connecting ground" (page 38) and 7.4 "Connecting the PV modules - positive grounding" (page 44)). -
Page 48: Sunny Central: Connecting Dc
Electrical Connection SMA Solar Technology AG 7.5.1 Sunny Central: Connecting DC– The DC– cable of the Sunny Central is connected to the terminals (A) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 1.1 in. (28 mm). 1.1 in. -
Page 49: Sunny Central: Connecting Dc
SMA Solar Technology AG Electrical Connection 7.5.2 Sunny Central: Connecting DC+ The DC+ cable of the Sunny Central is connected to the terminals (A) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 1.1 in. (28 mm). 1.1 in. -
Page 50: Connecting Sunny Central - Positive Grounding
Electrical Connection SMA Solar Technology AG 7.6 Connecting Sunny Central - positive grounding The Sunny Central may not be connected until the communication and the PV modules have been connected (see section 6 "Communication connector" (page 29), section 7.2 "Connecting ground" (page 38)and section 7.4 "Connecting the PV modules - positive grounding" (page 44)). -
Page 51: Sunny Central: Connecting Dc
SMA Solar Technology AG Electrical Connection 7.6.1 Sunny Central: Connecting DC+ The DC+ cable of the Sunny Central is connected to the terminals (A) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 1.1 in. (28 mm). 1.1 in. -
Page 52: Sunny Central: Connecting Dc
Electrical Connection SMA Solar Technology AG 7.6.2 Sunny Central: Connecting DC– The DC– cable of the Sunny Central is connected to the terminals (C) in the Sunny Central String-Monitor. 1. Strip the cable by approx. 1.1 in. (28 mm). 1.1 in. -
Page 53: Commissioning
SMA Solar Technology AG Commissioning 8 Commissioning DANGER Risk of electric shock when closing the fuses under load. Death or serious injuries. • Cover the PV modules with an opaque (dark) material. • Follow all safety precautions of the module manufacturer. -
Page 54: Maintenance And Cleaning
Maintenance and Cleaning SMA Solar Technology AG 9 Maintenance and Cleaning The Sunny Central String-Monitor must be maintained at regular intervals. Maintenance includes: • Inspection of wearing parts, and replacement thereof if necessary • Functionality test of components • Inspection of contact joints •... -
Page 55: Replace Fuses
SMA Solar Technology AG Maintenance and Cleaning 9.1 Replace fuses 9.1.1 Replace string fuses NOTICE Risk of fire due to incorrectly dimensioned fuse. Injuries due to fire. • For continuous protection, only replace with a fuse of the same type and size. - Page 56 Maintenance and Cleaning SMA Solar Technology AG 3. Pull the fuse out of the fuse holder. 4. Insert the new fuse into the fuse holder. 5. Close the fuse holder. 6. Close the Sunny Central String-Monitor as described in section 10.2 "Closing the Sunny Central String-Monitor"...
-
Page 57: Replace Fuse From Electronic Board
SMA Solar Technology AG Maintenance and Cleaning 9.1.2 Replace Fuse from Electronic Board NOTICE Risk of fire due to incorrectly dimensioned fuse. Injuries due to fire. • For continuous protection, only replace with a fuse of the same type and size. -
Page 58: Opening And Closing
Opening and Closing SMA Solar Technology AG 10 Opening and Closing 10.1 Opening Sunny Central String-Monitor DANGER Risk of electric shock when opening the Sunny Central String-Monitor under load. Death or serious injuries. • Cover the PV modules with an opaque (dark) material. -
Page 59: Closing The Sunny Central String-Monitor
SMA Solar Technology AG Opening and Closing 10.2 Closing the Sunny Central String-Monitor 1. Reinsert the fuses into the fuse holders. 1. Close the fuse holders. 2. Close the Sunny Central String-Monitor. 3. Commission the Sunny Central as described in the Sunny Central Installation Guide. -
Page 60: Operation Of The Sunny Central String-Monitor
Operation of the Sunny Central String-Monitor SMA Solar Technology AG 11 Operation of the Sunny Central String-Monitor The Sunny Central String-Monitor cannot be operated unless there is a Sunny WebBox connected to the Sunny Central. You will find operating instructions for the Sunny WebBox in the technical description of the Sunny WebBox. -
Page 61: Communication Overview
SMA Solar Technology AG Operation of the Sunny Central String-Monitor 11.2 Communication Overview Position Description Sunny Display Sunny Central Control Unit Sunny WebBox Sunny Central String-Monitor Controller (SCSMC) Sunny Central 485Hub Sunny Central String-Monitor (SSM-US) Technical Description SSMUS-TUS094511... -
Page 62: Status Display Sunny Central String-Monitor
"Activity" Data" permanently on Sunny Central String-Monitor is in operation. flashing flashing Internal error Please contact the SMA Serviceline (see Section 14 "Contact" (page 80)). permanently on Internal error Please contact the SMA Serviceline (see Section 14 "Contact" (page 80)). flashing Sunny Central String-Monitor is communicating with the Sunny Central String-Monitor Controller. -
Page 63: Status Display Sunny Central String-Monitor Controller
SMA Solar Technology AG Operation of the Sunny Central String-Monitor 11.2.2 Status Display Sunny Central String-Monitor Controller LED Overview R D Y R D Y Position Description Green LED "RDY" Orange LED "ACT" Explanation of the LEDs Green LED Orange LED Description "RDY"... -
Page 64: Spot Values
Operation of the Sunny Central String-Monitor SMA Solar Technology AG 11.3 Spot Values Recalling spot values 1. Log into the Sunny WebBox as an installer. 2. Go to "System > Devices" on the web interface. 3. Select Sunny Central String-Monitor Controller "SCSMC" or Sunny Central String-Monitor "SSM-US"... -
Page 65: Spot Values Sunny Central String-Monitor
SMA Solar Technology AG Operation of the Sunny Central String-Monitor Name Description SSMUWrnTxt Error message in text format. Display format SMU (SSMUId) Chan (x) (SSMUId): identification number of the Sunny Central String-Monitor. (x): number of the faulty string current channel 1 to 8. -
Page 66: Parameters For Sunny Central String-Monitor Controller
Operation of the Sunny Central String-Monitor SMA Solar Technology AG 11.4.1 Parameters for Sunny Central String-Monitor Controller The following table lists the parameters displayed in the user and installer modes. The parameters with a grey background are only visible in the installer mode. - Page 67 SMA Solar Technology AG Operation of the Sunny Central String-Monitor Name Adjustment range Default setting Description ErrLevGr1 – Sensitive, Regular, Regular Adjusting the string current ErrLevGr6 Insensitive, Customer monitoring system. Here you can set the monitoring parameters for each individual group.
- Page 68 Operation of the Sunny Central String-Monitor SMA Solar Technology AG Name Adjustment range Default setting Description MoniTmGr1On – 7.00 – 19.00 10.00 Start of monitoring for the Sunny MoniTmGr6On Central String-Monitor groups 1 to These parameters will enable you to set the monitoring start times for each separate group.
-
Page 69: Parameters For Sunny Central String-Monitor
SMA Solar Technology AG Operation of the Sunny Central String-Monitor Name Adjustment range Default setting Description hhmmss Current time of the Sunny Central String-Monitor Controller. The time is displayed in 24-hour format. hh: hours, mm: minutes, ss: seconds E.g. for 4:30:22 p.m. enter "163022". -
Page 70: Setting The Pv Plant Monitoring System
Operation of the Sunny Central String-Monitor SMA Solar Technology AG 11.5 Setting the PV Plant Monitoring System To set the PV plant monitoring system, all actions described here must be carried out in the given order. Setting the Communication Type of the PV System... - Page 71 SMA Solar Technology AG Operation of the Sunny Central String-Monitor ☑ Adjustment of the parameters of the Sunny Central String-Monitor Controller is now complete. Detecting the Sunny Central String-Monitors via the Sunny Central String-Monitor Controller 13. Set parameter "DevFunc" to "AutoDetect_SSMU".
-
Page 72: Optional Settings For The Pv Plant Monitoring System
Operation of the Sunny Central String-Monitor SMA Solar Technology AG 22. Via the parameter "SSMId" allocate a unique identification number to each Sunny Central String-Monitor. Each Sunny Central String-Monitor must have its own individual identification number. 23. Make a note of the identification numbers allocated to the serial numbers of the Sunny Central String-Monitors. -
Page 73: Allocation Of Pv Strings To Groups
SMA Solar Technology AG Operation of the Sunny Central String-Monitor Setting the monitoring period for individual groups of Sunny Central String- Monitors 1. Set parameter "MoniTmGr1On" thru "MoniTmGr6On" to the monitoring start time. 2. Set parameter "MoniTmGr1Off" thru "MoniTmGr6Off" to the monitoring end time. -
Page 74: Troubleshooting
Troubleshooting SMA Solar Technology AG 12 Troubleshooting 12.1 Detection and Elimination of Faults By means of the Sunny WebBox you can look at the spot value "Error" for the Sunny Central String- Monitor Controller or the Sunny Central String-Monitor. These spot values indicate that errors have occurred. -
Page 75: Detecting Errors With The Sunny Central String-Monitor
Meaning EvtEe Error The Sunny Central String-Monitor does not display the measured values correctly. Please contact the SMA Serviceline (see Section 14 "Contact" (page 80)). 12.2 Confirm warning Confirm the warning message via the Sunny WebBox. You will find detailed operating instructions for the Sunny WebBox in the technical description of the Sunny WebBox. -
Page 76: Technical Data
Technical Data SMA Solar Technology AG 13 Technical Data PV generator connection data Version 24 Version 32 Version 64 Input voltage range 0 ... 600 V DC 0 ... 600 V DC 0 ... 600 V DC Maximum array system 600 V DC... - Page 77 SMA Solar Technology AG Technical Data Supply voltage assembly Operational voltage 250 ... 600 V DC Maximum fuse size 1/10 A , 600 V DC Mechanical Data Version 24 Version 32 Version 64 Dimensions (W x H x D) inch 31.5 x 31.5 x 9.84...
-
Page 78: Torques And Cable Sizes
Technical Data SMA Solar Technology AG 13.1 Torques and Cable sizes Use 90 °C (194 °F), copper wire for all DC wiring connections to the screw terminals between • PV-modules and Sunny Central String Monitor • Sunny Central String-Monitor and Sunny Central Use 90 °C (194 °F) copper wire for all DC wiring connections to the fuse holders. - Page 79 SMA Solar Technology AG Technical Data Connection - Sunny Central Cables to the Sunny Central Cable Size Torque 350 kcmil 325 in-lb DC– 350 kcmil 325 in-lb Ground 350 kcmil 325 in-lb Technical Description SSMUS-TUS094511...
-
Page 80: Contact
Contact SMA Solar Technology AG 14 Contact If you have technical problems concerning our products, contact the SMA Service Line. We require the following information in order to provide you with the necessary assistance: • Inverter type • Type and number of modules connected •... - Page 81 SMA Solar Technology AG Contact Technical Description SSMUS-TUS094511...
- Page 82 Contact SMA Solar Technology AG SSMUS-TUS094511 Technical Description...
- Page 84 SMA America, Incorporated...
