4.2 Mounting to a Pole
4.2.1 Mounting the Sunny Central String-Monitor to a pole
(square)
The Sunny Central String-Monitor can be mounted to a square or round pole. An installation kit for
pole mounting is included in the Sunny Central String-Monitor accessories kit. This section describes
mounting to a square pole.

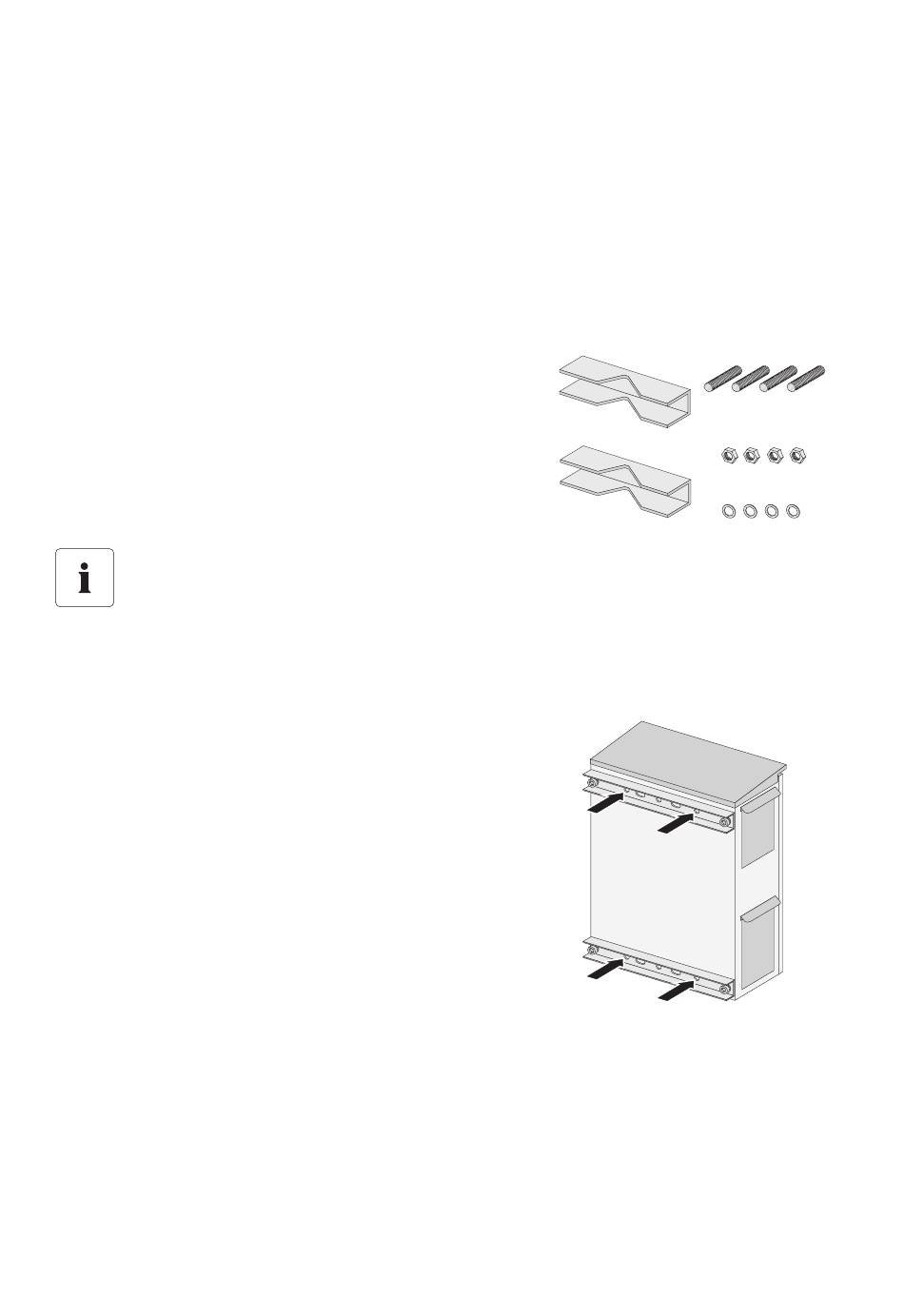

A Pole mount
B Threaded bolt
C Nuts
D Washers
Dimensions of the square pole
The Sunny Central String-Monitor can be mounted on square poles with the following
dimensions:
• minimum: 3.94 in. (100 mm)
• maximum: 7.48 in. (190 mm)
Two mounting rails are attached to the rear side of the
Sunny Central String-Monitor. In the middle of the
mounting rails there are 2 internal threads for attaching
the pole mount.
