Mounting

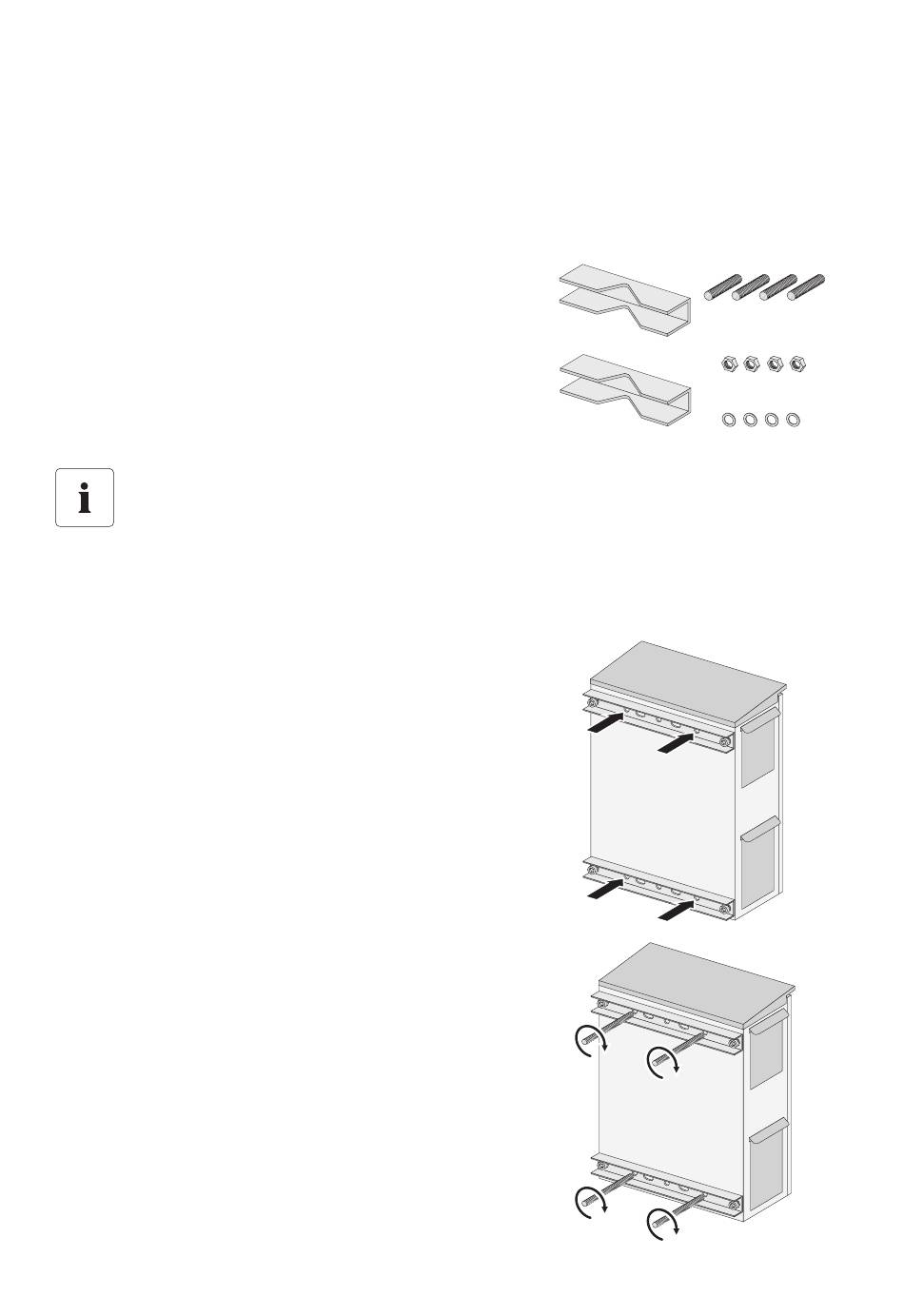

4.2.2 Mounting the Sunny Central String-Monitor to a pole (round)
The Sunny Central String-Monitor can be mounted to a square or round pole. An installation kit for
pole mounting is included in the Sunny Central String-Monitor accessories kit. This section describes
mounting to a round pole.
A Pole mount
B Threaded bolt
C Nuts
D Washers
Dimensions of the round pole
The Sunny Central String-Monitor can be mounted on round poles with the following
dimensions:
• minimum: 3.94 in. (100 mm)
• maximum: 7.48 in. (190 mm)
Two mounting rails are attached to the rear side of the
Sunny Central String-Monitor. In the middle of the
mounting rails there are 2 internal threads for attaching
the pole mount.
1. Securely screw the 4 threaded bolts into the
internal threads of the mounting rail in a clockwise
direction.
2. Lift the Sunny Central String-Monitor to the
mounting position on the pole.
22 SSMUS-TUS094511
SMA Solar Technology AG
A B
C
D
