Communication connector
6.3.2 Grounding the Shield of the Data Cable

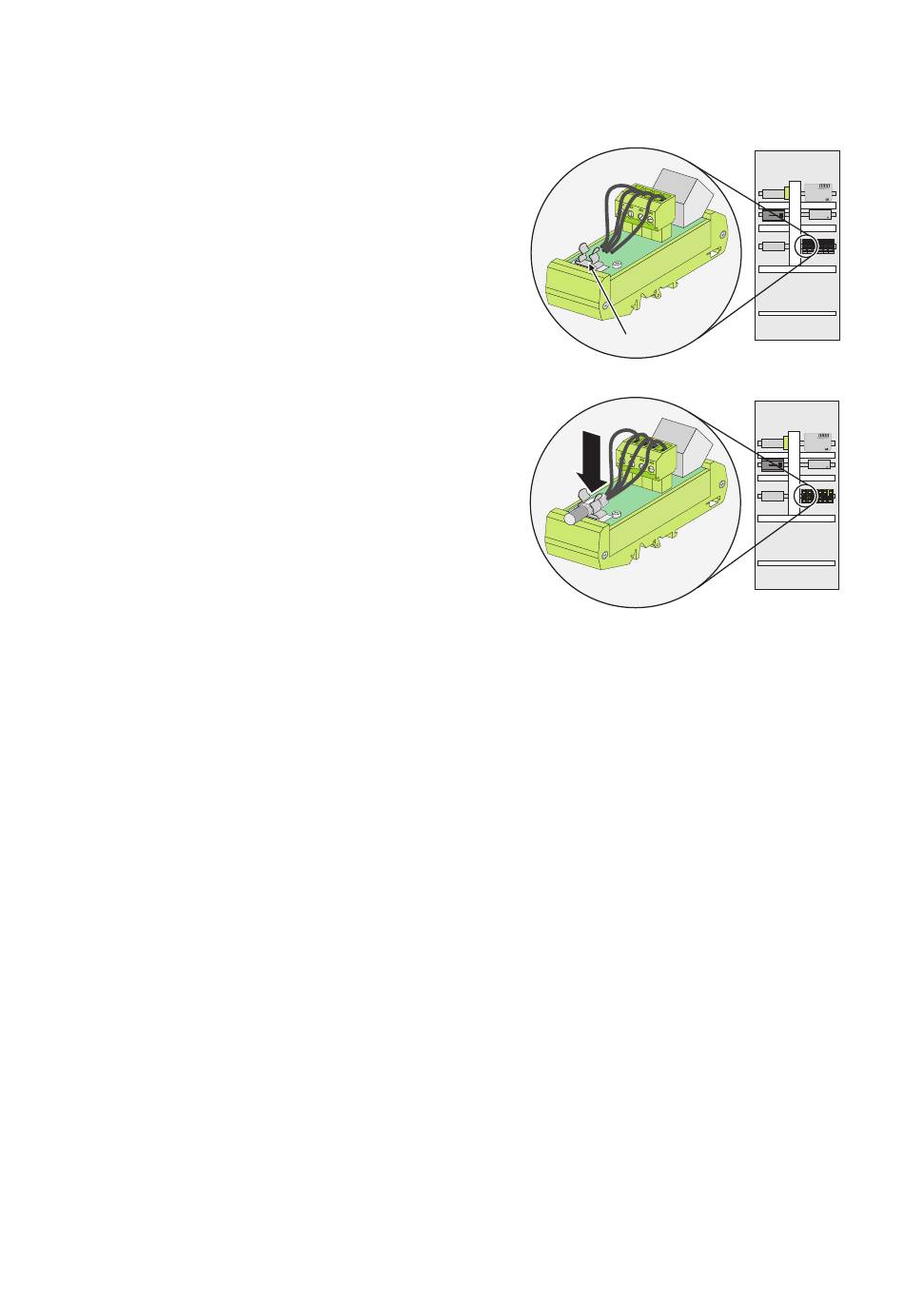

The data cable shielding is fitted into the shielding clamp
(A) of the 485 RJ45 clamp in the Sunny Central.
1. Shorten the shielding to 0.6 in., fold it back, and
attach it with conductive adhesive foil.
2. Push the two cables' portions of shielding
reattached in this way into the shielding clamp.
☑ The shielding of the data cable is grounded.
