Communication connector
6.1 Preparing the Data Cable
Three wires of the data cable, GND (2), Data+ (3), and
Data– (4), are required for the connection. Data+ and
Data– must be a twisted pair.

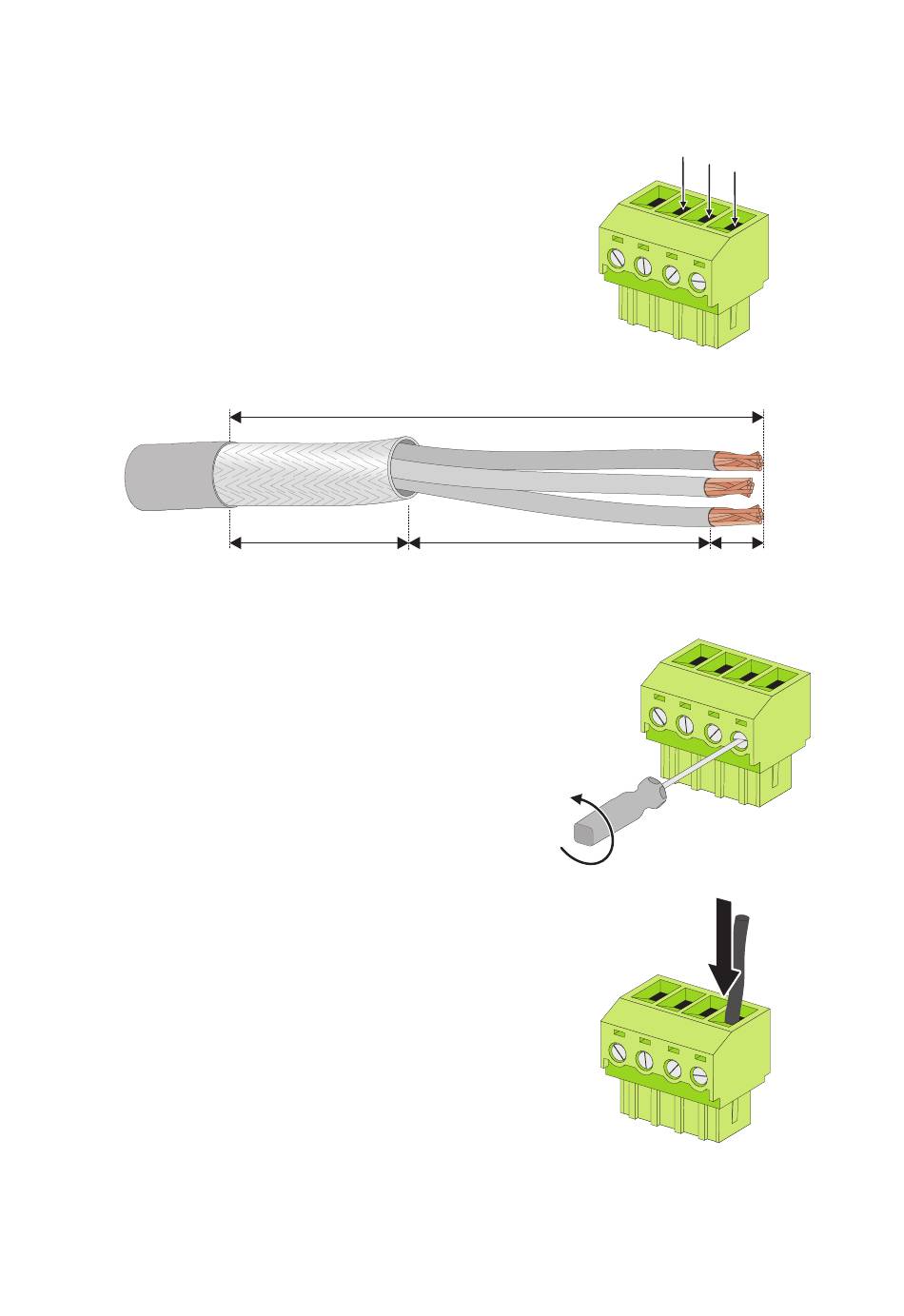

1. Remove the insulation of the data cable by approx.
2.4 in. (60 mm) and uncover the shield.
2. Uncover the wires by approx. 1.8 in. (45 mm).
3. Strip the wires by approx. 0.2 in. (1.8 mm).
4. Open the screw terminal completely.
5. Insert wires into the terminal.
30 SSMUS-TUS094511
0.6 in. (15 mm)
2.4 in. (60 mm)
3.6 in. (39.5 mm)
