Dimensions And Weight; Minimum Clearance - SMA SUNNY CENTRAL STRING-MONITOR US Technical Description

Mounting

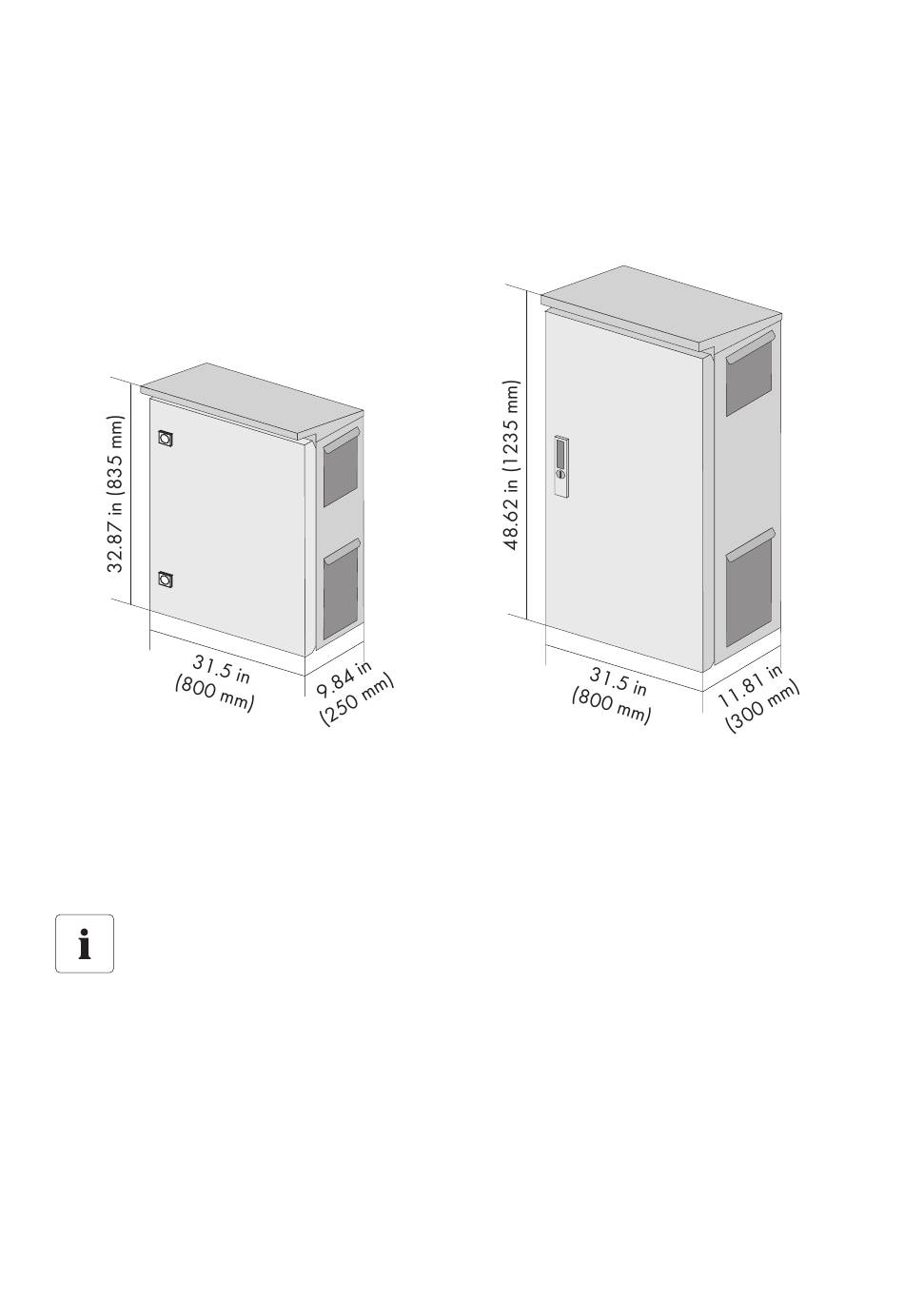

4.1.2 Dimensions and Weight
The Sunny Central String-Monitor version 24 weighs 143 lbs. (65 kg) version 32 weighs 146 lbs. (66
kg), version 64 weighs 194 lbs. (88 kg). The mounting location must be suitable for the weight of the
Sunny Central String-Monitor. The Sunny Central String-Monitor may not be mounted to plasterboard
walls or similar.
4.1.3 Minimum Clearance
Keep a clearance of at least 60 in. (1,500 mm) to walls, other devices or similar. This clearance is
necessary in order to allow to insert the cables to the Sunny Central String-Monitor and open the
Sunny Central String-Monitor.
Clearances
The National Electrical Code may require significantly larger working clearances (see
NEC Section 110.26).
18 SSMUS-TUS094511
SMA Solar Technology AG
Technical Description
