Atmel AT88CK109STK3 Getting Started Manual
Cryptoauthentication starter kit
Hide thumbs
Also See for AT88CK109STK3:
- Hardware user's manual (38 pages) ,
- Quick start manual (7 pages) ,
- Hardware user's manual (38 pages)
Advertisement
Quick Links
Features
• Installing Atmel CryptoAuthentication Utilities
• Configuring the board
• Powering the board
• Reading the HOST (Atmel AT88SA10HS) and
CLIENT (Atmel AT88SA102S) devices
Introduction
®
Atmel
AT88CK109STK3 is an Atmel CryptoAuthentication Starter Kit, which can be used as a reference design
and development system for the Atmel AT88SA100S, Atmel AT88SA102S and Atmel AT88SA10HS products.

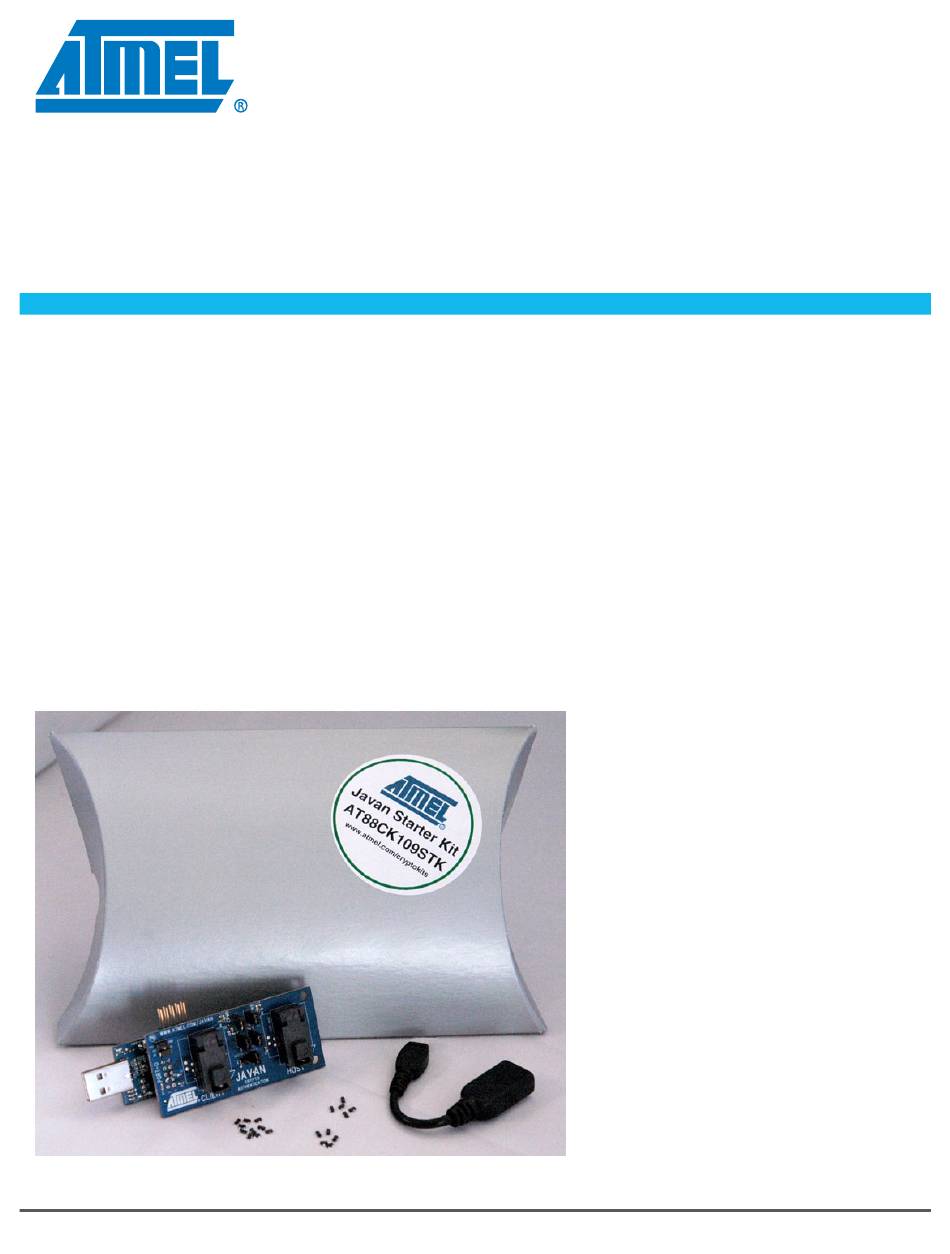

Figure 0-1.
Atmel AT88CK109STK3 Starter Kit
Atmel CryptoAuthentication Starter Kit
Contents
• Atmel AT88CK109BK3 modular Atmel
CryptoAuthentication daughter board
• Atmel AT88Microbase for demos and development
• Common 10-PIN header for the Atmel STK and
EVK platforms
• Atmel CryptoAuthentication Development Library
• JTAG, LED, and buzzer for debug and feedback
• Atmel CryptoAuthentication device assortment
and USB cable
Atmel AT88CK109STK3
Getting Started Guide
8731A–SMEM–9/10
Advertisement
Related Manuals for Atmel AT88CK109STK3
Summary of Contents for Atmel AT88CK109STK3
- Page 1 USB cable Introduction ® Atmel AT88CK109STK3 is an Atmel CryptoAuthentication Starter Kit, which can be used as a reference design and development system for the Atmel AT88SA100S, Atmel AT88SA102S and Atmel AT88SA10HS products. Figure 0-1. Atmel AT88CK109STK3 Starter Kit...
-
Page 2: Configuring The Board
Figure 2-1. HOST and CLIENT sockets The kit is shipped with an Atmel AT88SA102S device in the CLIENT socket and an Atmel AT88SA10HS device in the HOST socket. To use this kit with the CryptoAuthentication Utilities software, the host and client devices must be in their respective sockets according to the texts (silkscreen) on the PCB. -
Page 3: Powering Up The Board
Powering up the board ® The Atmel AT88CK109STK3 is a USB powered device. The Atmel AT88Microbase can be directly inserted into the USB port or be used with the six-inch USB cable provided. Figure 3-1. Atmel AT88CK109STK3 USB Device Power LEDs Upon receiving power, the blue power LED “LEDP”... - Page 4 2. The devices are not in their respective sockets, HOST / CLIENT 3. The device is not seated properly 4. The firmware is outdated − See Section 8, “Firmware Upgrade” Figure 4-3. No SA102S Device Detected Notification Atmel AT88CK109STK3 Quick Start Guide 8731A–SMEM–9/10...
- Page 5 • Click the Read button in the AT88SA102S Configuration Information section − The section will populate Figure 4-4. Atmel AT88SA102S Configuration Information populated Atmel AT88CK440RED Quick Start Guide 8731A–SMEM–9/10...
- Page 6 5. Click OK on the popup box 6. Select the Host Socket radio button 7. Repeat steps two through five − The CLIENT and the HOST devices must have the same Secret Fuse Value Figure 5-1. Hardware Setup tab Atmel AT88CK109STK3 Quick Start Guide 8731A–SMEM–9/10...
- Page 7 • Click the Hardware Operation tab 1. Select Mode 20 2. Enter KeyID FFFF 3. Enter a Challenge (up to 32-bytes) 4. Click the Send button to obtain the MAC (Atmel AT88SA102S response) Figure 6-1. Hardware Operations tab Atmel AT88CK440RED Quick Start Guide...
- Page 8 Firmware Upgrade To upgrade the firmware, click the Help tab and complete steps one through six. The following steps enable the DFU mode: 1. Load the Atmel FLIP (FLexible In-System) Programming utility http://www.atmel.com/dyn/products/tools_card_v2.asp?tool_id=3886 3. Click the Firmware upgrade mode Enable button 4.
