Features
Installing Atmel CryptoAuthentication Evaluation
Studio (ACES)
Powering the board
Reading the device configuration information
Atmel ATSHA204 device
Introduction
®
Atmel
AT88CK109STK8 is an Atmel CryptoAuthentication starter kit, which can be used as a reference design
for an USB application requiring the Atmel CryptoAuthentication product family.

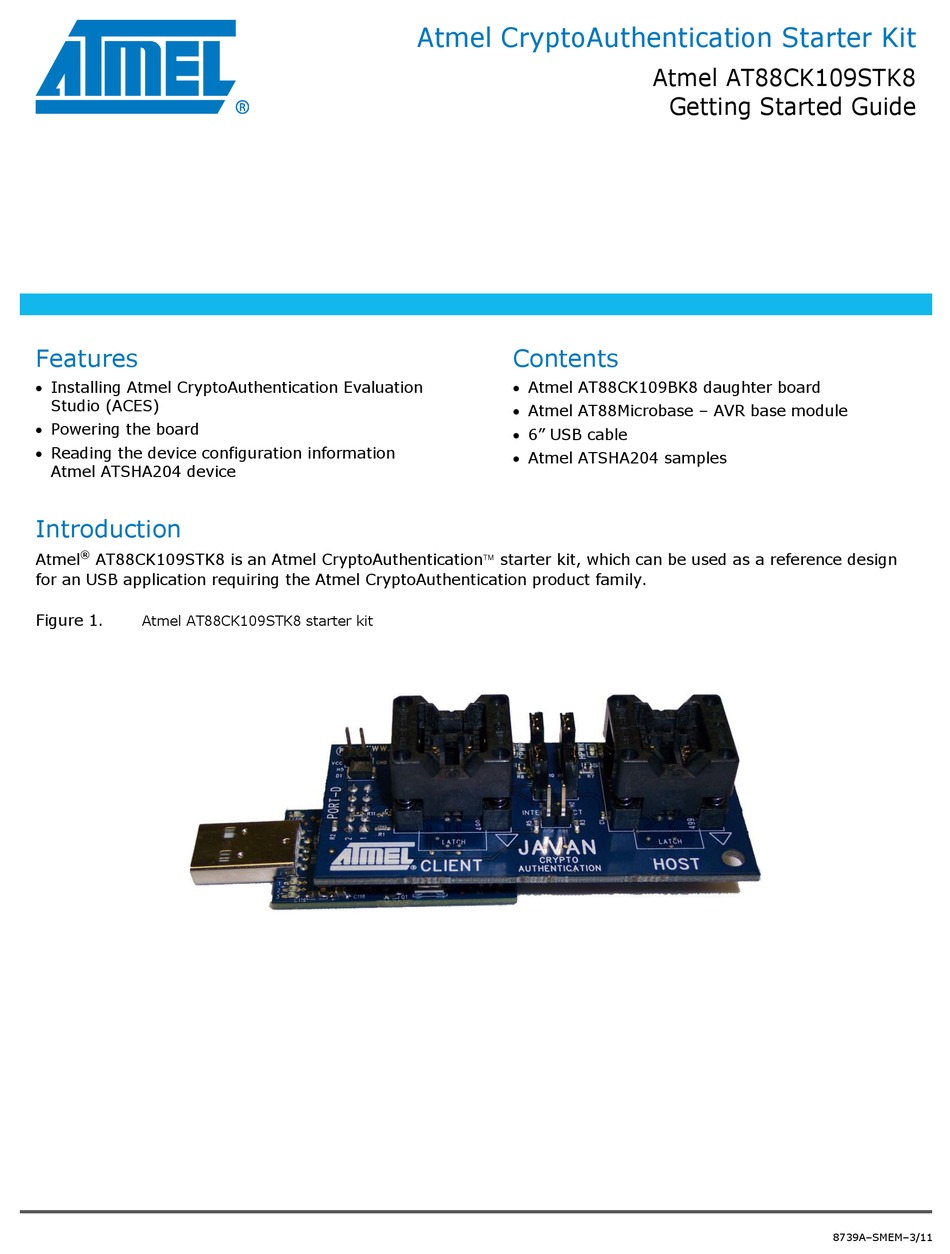

Figure 1.
Atmel AT88CK109STK8 starter kit
Atmel CryptoAuthentication Starter Kit
Contents
Atmel AT88CK109BK8 daughter board
Atmel AT88Microbase – AVR base module
6" USB cable
Atmel ATSHA204 samples
Atmel AT88CK109STK8
Getting Started Guide
8739A–SMEM–3/11
Advertisement
Related Manuals for Atmel AT88CK109STK8
Summary of Contents for Atmel AT88CK109STK8
- Page 1 Atmel ATSHA204 samples Atmel ATSHA204 device Introduction ® Atmel AT88CK109STK8 is an Atmel CryptoAuthentication starter kit, which can be used as a reference design for an USB application requiring the Atmel CryptoAuthentication product family. Figure 1. Atmel AT88CK109STK8 starter kit 8739A–SMEM–3/11...
- Page 2 Ensure the Atmel ATSHA204 device in place in the socket with the correct Pin1 orientation The K1 switch on the Atmel AT88CK109BK8 board should always be in the “uBase” position when mounted to the Atmel AT88Microbase The 8ld SOIC package supports both SWI (Single Wire Interface) and I C communication protocol.
- Page 3 (K1 switch setting) uBase TWI (I Kit shipped with this setup uBase Powering up the board The Atmel AT88CK109STK8 is a USB powered device. Simply insert the board into an open USB port Figure 3-1. Atmel AT88CK109STK8 USB powered Power LEDs...
- Page 4 Insert the Atmel AT88CK109STK8 into a USB port Launch ACES CE for the desktop shortcut icon or from Start / All Programs / Atmel Crypto Solutions / ACES / ACES CE Figure 4-1. ACES Figure 4-2 will appear indicating the board (CK109), device (SHA204), firmware version (0.0.6), and the communication interface (TWI) Figure 4-2.
- Page 5 Figure 4-3. ACES configuration environment – Atmel ATSHA204 All three System Status fields should be green and populated, which indicates the proper communication with the development kit and the Atmel ATSHA204 device Kit Name: CK101 0.0.5 SWI8 Device: ATSHA204...
- Page 6 Validate MAC tools menu Figure 5-2 will appear Click the Execute Nonce button Click the MAC button Click the CheckMac button The CheckMac Result: should indicate Matched Figure 5-2. Validate MAC pane Atmel AT88CK109STK8 Getting Started Guide 8739A–SMEM–3/11...
- Page 7 See application note, doc8746, “Upgrading Crypto Kits Firmware.” References and further information A complete reference design including schematics, Gerber files, bill of materials (BOM), hardware user guide and development and demonstration software is conveniently downloadable from the Atmel website at www.atmel.com/cryptokits. Atmel AT88CK109STK8 Getting Started Guide...
- Page 8 LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. No license is granted under any patent right or other intellectual property right of Atmel covering or relating to any machine, process, or combination in which such Atmel product or services might be or are used.
- Page 9 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this doc ument or in connection with the sale of Atmel products.
