Summary of Contents for Atmel CryptoAuthentication AT88CK490

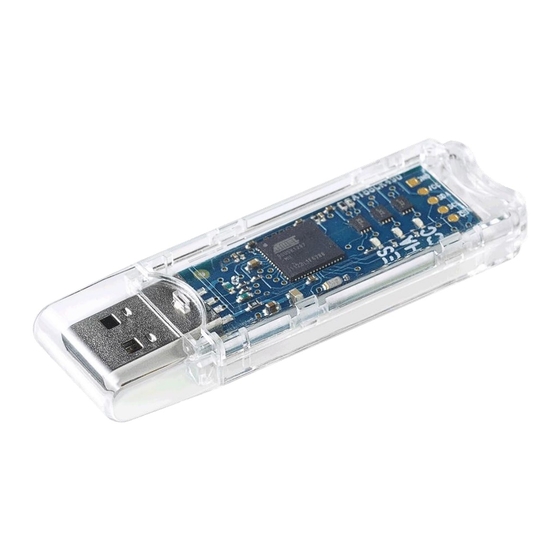

- Page 1 AT88CK490 and AT88CK590 ® Atmel CryptoAuthentication™ USB Dongle Demo-Evaluation Kits For ATSHA204A, ATAES132A, ATECC108A, and ATECC508A HARDWARE USER GUIDE Atmel CryptoAuthentication USB Dongle Demo-Evaluation Kits Atmel-8945A-CryptoAuth-USB-Dongle-Demo-Eval-Kits-Hardware-UserGuide_052015...
- Page 2 Developers can use the provided 5-pin interface at the end of the board and can be used to monitor the I C protocol. Atmel also offers a socketed board called the Atmel AT88CK101 for the purpose of firmware development, which allows the user to try differently configured devices on a target system.
-
Page 3: Table Of Contents
Download ACES Software at www.atmel.com ................6 Step 2 Power-Up the USB Dongle Kit ....................... 7 Step 3 Select the Atmel CryptoAuthentication Device to Evaluate ............7 Step 4 Use ACES to Evaluate the Device ....................8 Step 5 Optional: USB Dongle Kits Communication Protocol ..............9 ACES Evaluation Example –... -
Page 4: Board Overview
Top Side Placement of Components (AT88CK590 Shown) CryptoAuthentication Device Family Overview Atmel offers the industry's widest portfolio of crypto elements with ultra-secure hardware-based key storage to provide confidentiality, integrity, and authentication. The Atmel crypto element devices included in each kit are noted below: Table 1. -
Page 5: Ataes132A
The ATSHA204A includes client and host security capabilities that offloads key storage and the execution algorithms from the microcontroller, which significantly reduces system cost and complexity. For additional information please go to: www.atmel.com/devices/atsha204a.aspx. ATECC108A The ATECC108A supports full 256-bit Elliptic Curve Cryptography (ECC) and has no need for secure storage in the host. -
Page 6: Atecc508A
Start the ACES CE Software Program. Either open the program via the desktop icon or via the Start menu > All Programs > Atmel Crypto Solutions > ACES > ACES CE. When the kit is plugged into the USB port, ACES will automatically detect that the kit is attached and launch the Kit Detection dialogue box. -
Page 7: Step 2 Power-Up The Usb Dongle Kit
Kit Powered Through USB Port Step 3 Select the Atmel CryptoAuthentication Device to Evaluate Choose which device to evaluate by using the Kit Detection dialogue box that will appear as shown below. Once the device is selected, the blue LED corresponding to that device will flash and the other device status LEDs will be disabled. -
Page 8: Step 4 Use Aces To Evaluate The Device
Step 4 Use ACES to Evaluate the Device Please refer to www.atmel.com/tools/ATMELCRYPTOEVALUATIONSTUDIO_ACES.aspx for detailed information about ACES. An example of the ACES configuration screen is shown below: ACES – Software Environment for Demo, Evaluation, and Design Figure 4. Device Navigator Generates, Stores, and Reloads Configuration Files. -
Page 9: Step 5 Optional: Usb Dongle Kits Communication Protocol
It is possible to obtain access to the communication protocol of the CryptoAuthentication USB Dongle kits which are designed to interface with either a Microsoft HID driver or the Atmel AVR CDC driver. Both interfaces use the same Atmel CryptoAuthentication Kit Protocol, which is an ASCII-based interface to the AT90USB1287 AVR microcontroller located on the kit. -
Page 10: Step 3 Execute The Validate Mac
The CheckMac Result line should indicate Matched. See Figure Figure 6. Validate MAC Pane Congratulations, the Atmel USB Dongle Demonstration-Evaluation Kit is up and running. See ACES online help for additional information. Additional samples can be found at: http://www.atmel.com/forms/Samples.asp?family_id=699 CryptoAuthentication USB Dongle Demo-Evaluation Kits [HARDWARE USER GUIDE]... -
Page 11: Schematics
Schematics Figure 7. Microcontroller and Status Circuitry Schematics CryptoAuthentication USB Dongle Demo-Evaluation Kits [HARDWARE USER GUIDE] Atmel-8945A-CryptoAuth-USB-Dongle-Demo-Eval-Kits-Hardware-UserGuide_052015... - Page 12 Figure 8. Crypto Device Circuitry Schematics CryptoAuthentication USB Dongle Demo-Evaluation Kits [HARDWARE USER GUIDE] Atmel-8945A-CryptoAuth-USB-Dongle-Demo-Eval-Kits-Hardware-UserGuide_052015...
-
Page 13: Firmware Upgrade
Atmel website at www.atmel.com/cryptokits. Additional Evaluation Kits Atmel offers a range of kits to support the Atmel CryptoAuthentication device development all the way to small-run production. The Atmel kits run ACES software to configure the CryptoAuthentication devices. -
Page 14: Revision History
(WEE), FCC, CE or UL. Atmel is providing this evaluation board/kit “AS IS” without any warranties or indemnities. The user assumes all responsibility and liability for handling and use of the evaluation board/kit including, without limitation, the responsibility to take any and all appropriate precautions with regard to electrostatic discharge and other technical issues. - Page 15 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, b y estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND COND ITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY W HATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON -INFRINGEMENT.
