Features
• Installing Atmel CryptoAuthentication Utilities
• Powering the board
• Reading the Device Configuration Information
Atmel AT88SA102S device
Introduction
®
Atmel
AT88CK440RED is an Atmel CryptoAuthentication Evaluation Kit, which can be used as a reference
design for an USB application requiring the Atmel CryptoAuthentication product family.
Figure 0-1.

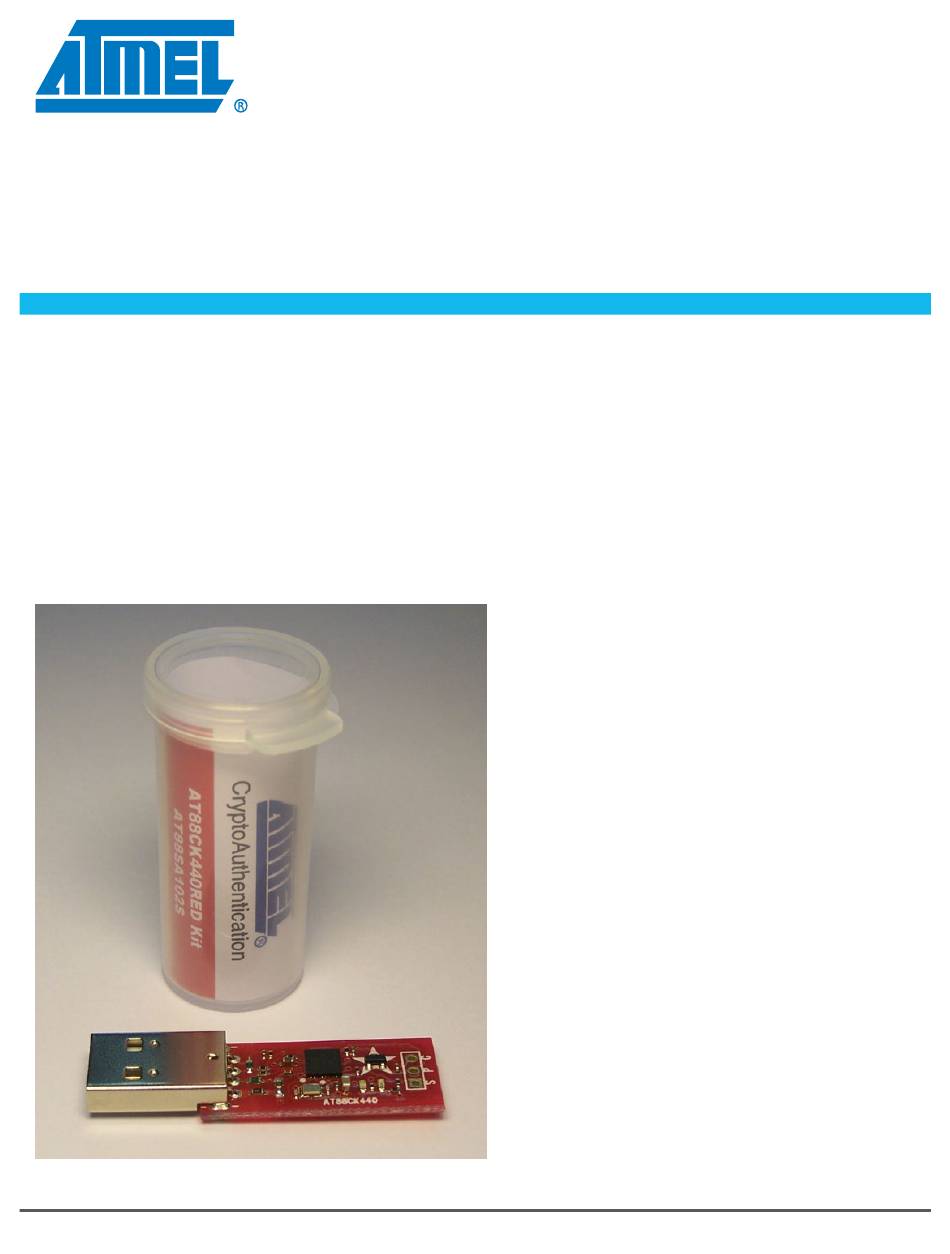

Atmel AT88CK440RED Evaluation Kit
Atmel CryptoAuthentication Evaluation Kit
Contents
• Atmel AT88CK440RED USB Dongle
• Quick Start Guide
Atmel AT88CK440RED
Getting Started Guide
8725A–SMEM–09/10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atmel AT88CK440RED
Summary of Contents for Atmel AT88CK440RED
- Page 1 • Reading the Device Configuration Information Atmel AT88SA102S device Introduction ® Atmel AT88CK440RED is an Atmel CryptoAuthentication Evaluation Kit, which can be used as a reference design for an USB application requiring the Atmel CryptoAuthentication product family. Figure 0-1. Atmel AT88CK440RED Evaluation Kit 8725A–SMEM–09/10...
-
Page 2: Powering Up The Board
Figure 2-1. Atmel AT88CK440RED USB device Power LED Reading the Device Configuration Information • Insert the Atmel AT88CK440RED into a USB port • Launch the Atmel CryptoAuthentication Utilities • Click Start, All Programs, Atmel Crypto Solutions, CryptoAuthentication Utilities Figure 3-1. - Page 3 Hardware Operations Tab If the following screen appears, then one of two problems exists. 1. Atmel AT88CK440RED has not been inserted into a USB port − The enumeration process must be completed prior to launching the utility 2. The firmware is outdated −...
- Page 4 Click the Read button in the AT88SA102S Configuration Information section The section will populate Figure 3-4. Atmel AT88SA102S Configuration Information populated Congratulations, your Atmel AT88CK440RED is up and running. See the CryptoAuthentication Help shortcut on your desktop for additional information. For additional samples, go to: http://www.atmel.com/forms/Samples.asp?family_id=699 Atmel AT88CK440RED Quick Start Guide 8725A–SMEM–09/10...
-
Page 5: Firmware Upgrade
Firmware Upgrade To upgrade the firmware, click the Help tab and complete steps one through six. The following steps enable the DFU mode: 1. Load the Atmel FLIP (FLexible In-System) Programming utility http://www.atmel.com/dyn/products/tools_card_v2.asp?tool_id=3886 3. Click the Firmware upgrade mode Enable button 4. -
Page 6: Evaluation Board/Kit Important Notice
LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. No license is granted under any patent right or other intellectual property right of Atmel covering or relating to any machine, process, or combination in which such Atmel product or services might be or are used. - Page 7 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
