Atmel AT88CK9000
Atmel Secure Personalization Kit for CryptoAuthentication
USER GUIDE
Atmel AT88CK9000 Kit
8821A–CRYPTO–6/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT88CK9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atmel AT88CK9000

Summary of Contents for Atmel AT88CK9000

  • Page 1 Atmel AT88CK9000 Atmel Secure Personalization Kit for CryptoAuthentication USER GUIDE Atmel AT88CK9000 Kit 8821A–CRYPTO–6/12...
  • Page 2 10 devices at a time. Safety and security has been added to ensure secure high-reliability programming. The AT88CK9000 kit interfaces to the Atmel Crypto Evaluation Studio (ACES) software suite to provide communication to a PC via a USB interface. This allows trusted users to program the board outside of the manufacturing environment.

  • Page 3: Table Of Contents

    Troubleshooting the Atmel AT88CK9000 Kit ........

  • Page 4: Becoming Familiar With Atmel At88Ck9000

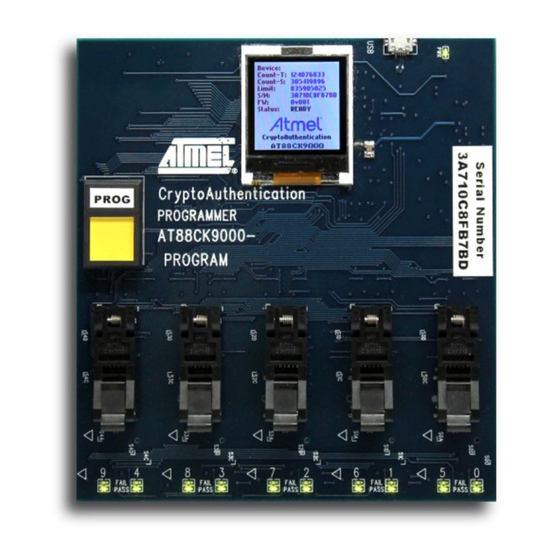

    Becoming Familiar with Atmel AT88CK9000 The AT88CK9000 has been designed to make secure personalization of the CryptoAuthentication ATSHA204 devices as easy as possible. Program Button Display USB Power Pass/Fail Indicators Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide] 8821A–CRYPTO–6/12...
  • Page 5 Configuration FW Erase Reset Mode Pads Button Button Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide] 8821A–CRYPTO–6/12...

  • Page 6: Install Atmel Crypto Evaluation Studio (Aces)

    To download Atmel Crypto Evaluation Studio (ACES), visit: http://www.atmel.com/tools/ATMELCRYPTOEVALUATIONSTUDIO_ACES_.aspx. Note: The AT88CK9000 kit is compatible with Version 3.2.0 or later. Launch the installer by executing the downloaded file (e.g. ACES_Setup.exe). Follow the installation instructions in the setup wizard. Once installed, three ACES icons should be located on your desktop. These icons include: The ACES Programmer icon will launch the ACES Programmer.

  • Page 7: Configuring The Atmel At88Ck9000 Board

    Now that ACES has been installed, begin configuring the ATSHA204 to work in your system. The recommended method is to define and test your device configuration using the ACES Configuration Environment (CE). ACES CE can create a personalization file that is compatible with the AT88CK9000 kit. Save the personalization file in ACES CE:...

  • Page 8: Powering Up The Board

    Powering Up the Board The AT88CK9000 board can be powered via the multi-voltage power supply which is supplied with the kit or via a USB port on a PC. Once powered, the green LED will illuminate next to the USB connector, and the green LEDs will illuminate below each socket.

  • Page 9: Putting The Board In The Program Mode

    Notes: 1. The board is attached. The file is not selected. Select the button and select a personalization file.  (Select the file that you have created using ACES CE) Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide] 8821A–CRYPTO–6/12...
  • Page 10 The Programmer User Interface should resemble the below dialog box. Select Download. If download is successful, the download confirmation dialog box will be displayed.  If download is not successful, the unsuccessful download dialog box will be displayed.  Atmel AT88CK9000 Secure Personalization Kit for CryptoAuthentication [User Guide] 8821A–CRYPTO–6/12...
  • Page 11 Unplug the USB cable from the board or  Press the reset button located on the back of the board.  The AT88CK9000 display should display the communication panel screen as shown below. Device = Device Type and Protocol Count–T = Lifetime Count of Programmed Devices Count–S...

  • Page 12: Firmware Upgrade

    To be determined. Maintenance of the Atmel AT88CK9000 Kit The sockets used in the AT88CK9000 kit are rated for 50,000 insertions per socket. Care must be taken to not bend or deform the leads of the socket. If the sockets become damaged or worn, the following part numbers and suppliers should be used for replacement purchases.

  • Page 13: Revision History

    CONSEQUENTIAL DAMAGES. No license is granted under any patent right or other intellectual property right of Atmel covering or relating to any machine, process, or combination in which such Atmel product or services might be or are used. Mailing address:...
  • Page 14 Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
