NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2008
9531-009-041-03

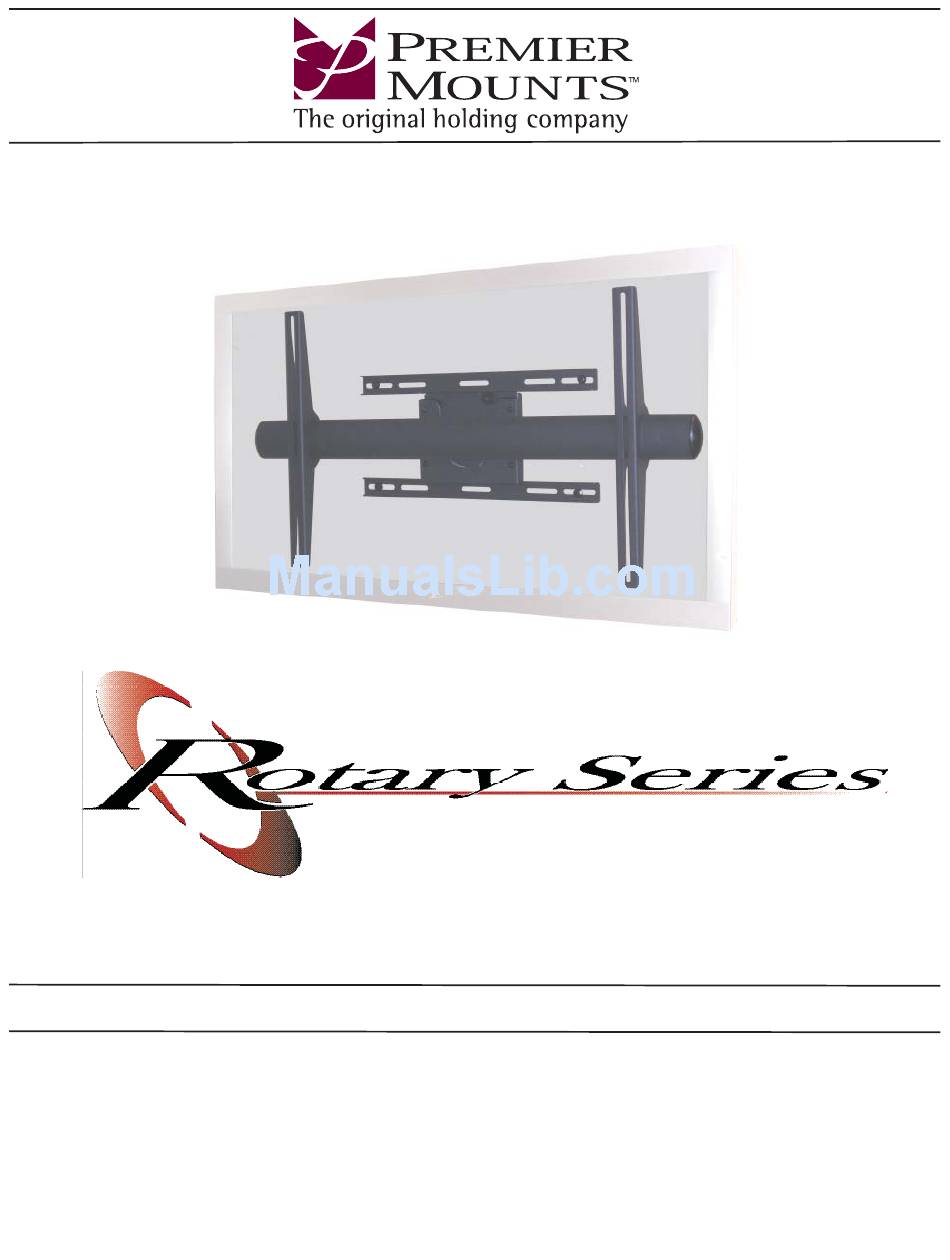

INSTALLATION INSTRUCTIONS
Rotary Flat Mount
Model: RFM
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND, OCEANIA
(DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 039586 6330
www.premiermounts.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts RFM
Summary of Contents for Premier Mounts RFM
-
Page 1: Installation Instructions
NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9531-009-041-03 INSTALLATION INSTRUCTIONS Rotary Flat Mount Model: RFM EUROPE Swallow House, Shilton Industrial Estate,... -
Page 2: Table Of Contents
INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Parts List
This mount is shipped with all installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop and contact Premier Mounts (800) 368-9700. Universal Mounting Brackets (Qty 2) 5/16”... - Page 4 (Qty 8) M4 x 16 (Qty 8) M4 x 25 (Qty 8) M5 x 12 (Qty 8) M5 x 16 (Qty 8) M5 x 20 (Qty 8) M5 x 25 M5 x 50 (Qty 8) M6 x 16 Page 4 (Qty 8) M6 x 20 M6 x 30...
- Page 5 The nylon spacers may be stacked to achieve proper spacing. Installation Instructions 1/4" Nylon spacers (large) (Qty 8) 1/2" Nylon spacers (large) (Qty 12) 5/16" Flat washers (metal) (Qty 8) 1" Nylon Spacers (Qty 8) 1/4" Nylon spacers (small) (Qty 8) 9/16"...
-
Page 6: Thread Depth Indicator
Thread Depth Indicator 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the fl at panel to make sure the inserts measure the same full depth and mark it (Figure 1). 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied). 3. -
Page 7: Mount Installation
Mount Installation Step 1 Determine where the mount lo- cation will be. Use a stud finder to locate the nearest wall stud. For ease of installation, it is recommended that two people perform the installation. One person should hold the mount while the other person installs the lag bolt and washer. -
Page 8: Concrete Mounting
Concrete Mounting Concrete anchors must be used for concrete installation. They can be purchased at your local hardware store. The mounting surface must be a minimum 6” thick. Begin by placing the mount into position against the wall, keeping it level. Mark off four holes to be used for securing the mount. - Page 9 Installation Instructions Lower the universal bracket bar with attached display into the cradle (as shown to the left). Nylon Sleeve After loosening the tension bolts, be sure that the nose piece is held together tightly before rotating. Knurl Knob Mounting Point/M6 x 12mm Security Head and M6 Lock Washer Mounting Point.
-
Page 10: Display Orientation
The RFM will allow the user to adjust the display a full 360°. BEFORE ROTATING THE RFM, MAKE SURE THAT THE M6 KNURL KNOB IS SECURELY FASTENED TO THE RFM. ALSO, PLEASE MAKE SURE YOU ALLOW ENOUGH CABLE AND WIRE CLEARANCE FOR FULL ROTATION. -
Page 11: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
