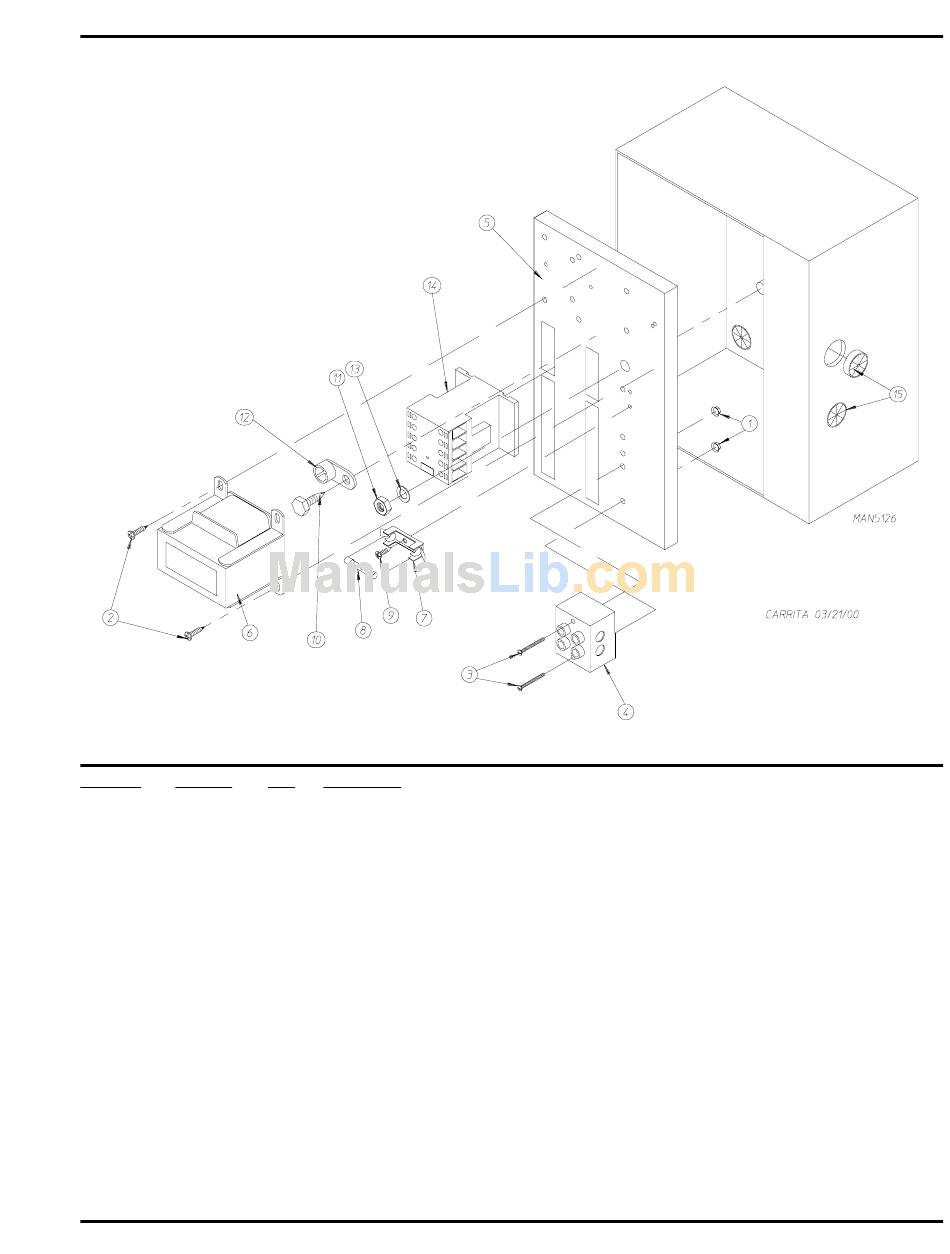

Rear Electric Relay Panel Assembly - ADC AD-24 Parts Manual

Illus. No. Part No.
1 151000
2 150300
3 150008
4 120716
5 322812
822796
822798
6 822794
822799
7 136008
8 136057
9 150301
10 150297
11 152004
12 121010
13 153002
14 132514
15 121300
450216 - 3
Qty. Description
2 #6-32 Pal Nut
2 #10-16 x 1/2" Hex Washer TEK Screw
2 #6-32 x 1-1/4" Phillips Pan Head Machine Screw
1 2-Position Terminal Block
1 Rear Electric Mounting Plate ONLY
1 Rear Electric Panel Assembly Complete – 115 Volt
(includes illus. nos. 1 through 14)
1 Rear Electric Panel Assembly Complete – 208-240 Volt
(includes illus. nos. 1 through 14)
1 Transformer Assembly – 115 Volt
1 Transformer Assembly – 208-240 Volt
2 Fuse Holder ONLY
2 1/2-Amp (Slo-Blo) Fuse ONLY
4 #8-18 x 7/16" Phillips Pan Head TEK Screw
1 #10 x 1/2" Green Hex Washer TEK Screw
1 5/16-18 Hex Nut
1 L-70 Ground Lug
1 5/16" Lock Washer
1 3-Pole Contactor
3 Open / Closed Bushing

Rear Electric Relay Panel Assembly
