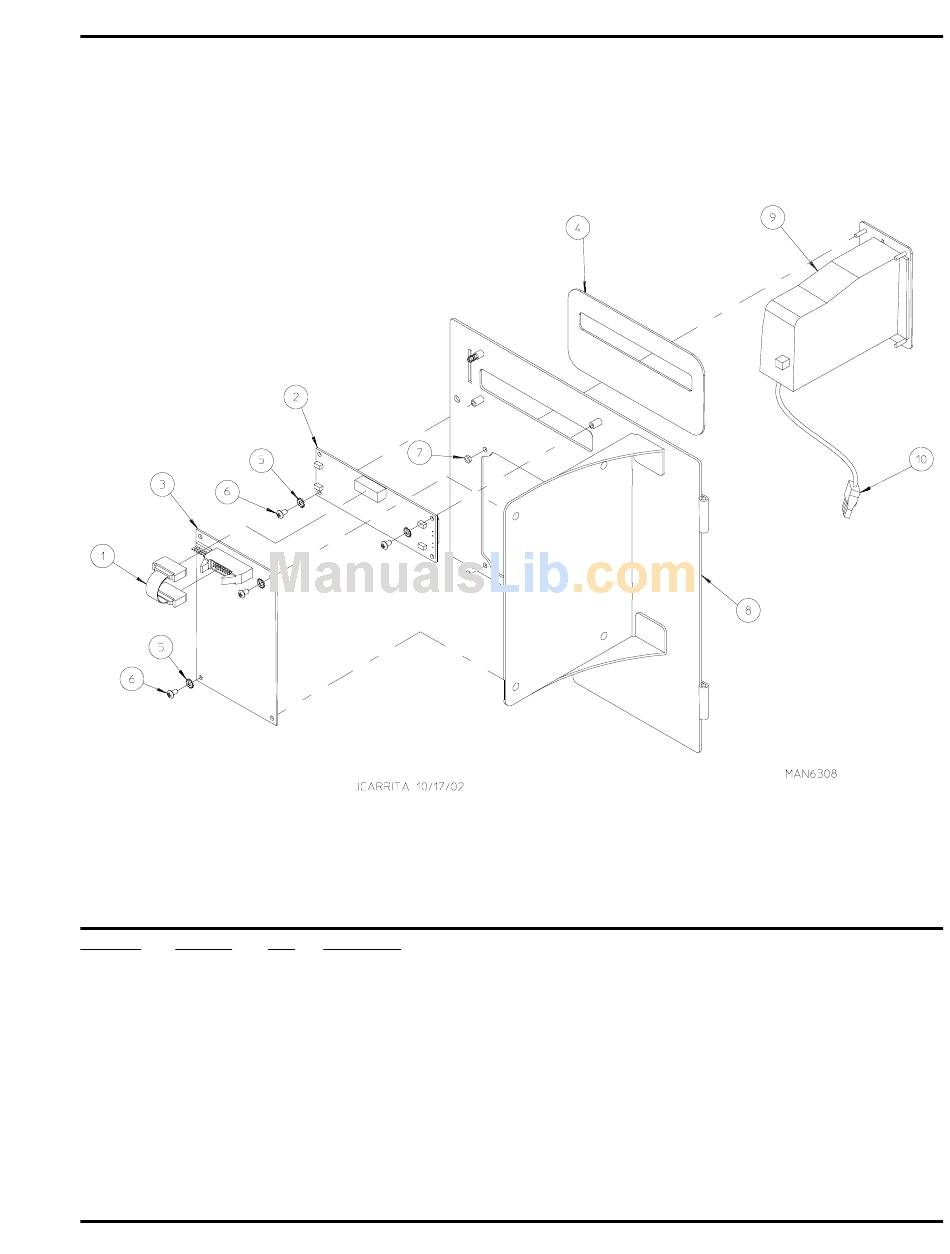

Phase 7 Coin Microprocessor Control Panel Assembly - ADC AD-24 Parts Manual

Illus. No. Part No.
1 137250
2 137270
3 883435
4 112575
5 153010
6 150005
7 152102
8 802536
802537
9 803612
10 122633
450216 - 3

Phase 7 Coin Microprocessor Control Panel Assembly

Qty. Description
1 Phase 7 Coin Ribbon Cable
1 16" x 1" Large Character Display
1 Phase 7 Coin Board
1 Phase 7 Keyboard
4 #6 Internal and External Star Washers
4 #6-32 x 1/4" Phillips Round Head Machine Screw
4 M3 Metric Hex Nut
1 Phase 7 Coin Control Panel ONLY
1 Phase 7 Coin Control Panel Assembly
(includes illus. nos. 1 through 8)
1 Phase 7 25¢ Coin Acceptor Assembly
1 3-Pin Connector
