Motor Mount Assembly - ADC AD-24 Parts Manual

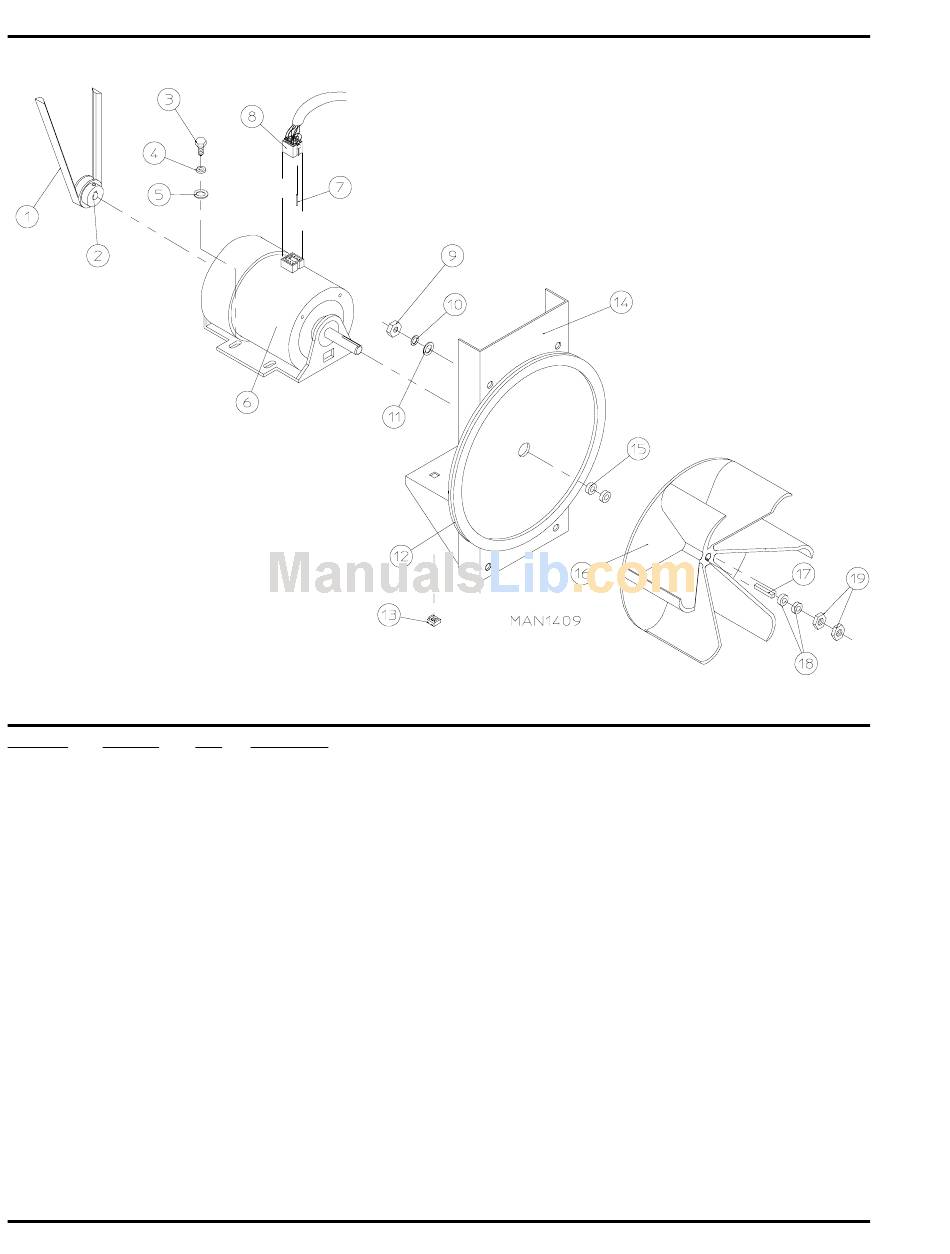

Motor Mount Assembly

Illus. No. Part No.
1 100105
2 101131
3 150501
4 153002
5 153001
6 181049
7 122701
8 137030
122801
9 152004
10 153002
11 153001
12 117600
13 154000
14 850016
803871
15 153050
16 100604
17 100702
18 153050
19 152006
18
Qty. Description
1 4L-520 V-Belt (to idler bearing assembly)
1 1/2" x 2-1/4" Motor Pulley (for use on 1Ø 60 Hz models Only)
4 5/16-18 x 3/4" Tap Bolt
4 5/16" Lock Washer
4 5/16" Flat Washer
1 1/2 HP 115-230v 1Ø 60 Hz Motor with Plug
8 Socket Terminal ONLY
1 8-Pin Housing Connector ONLY
1 Pin / Socket Extraction Tool
4 5/16-18 Hex Nut
4 5/16" Lock Washer
4 5/16" Flat Washer
4 Noise Suppressor Tape (sold by the foot)
4 5/16-18 Tinnerman Nut
1 1/2 HP Motor Mount ONLY (56Z frame)
1 1/2 HP 115-230v 1Ø 60 Hz Motor Mount Assembly with Plug Motor
(includes illus. nos. 2 through 6 and 12 through 19)
2 1/2" S.A.E. Flat Washer
1 12-1/2" Impellor (fan) with 1/2" Bore
1 1/8" x 1/8" x 1-1/2" Key
2 1/2" S.A.E. Flat Washer
2 1/2-20 Left Hand Jam Nut
American Dryer Corporation 450216 - 3
