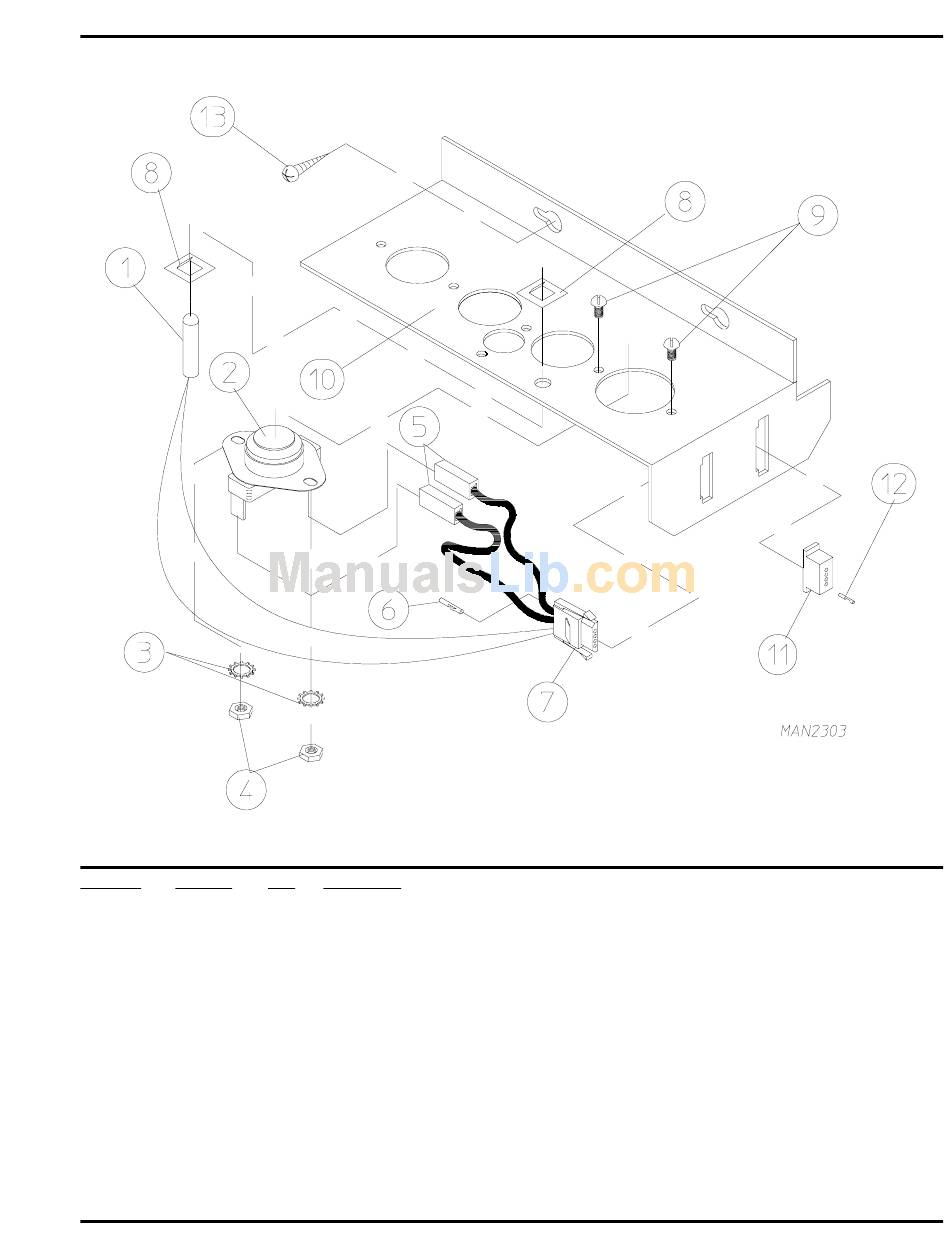

Microprocessor Sensor Bracket Assembly - ADC AD-24 Parts Manual

Illus. No. Part No.
1 880251
2 130103
3 153010
4 152000
5 121028
6 122701
7 122605
8 154007
9 150005
10 801425
11 122604
12 122700
13 150301
450216 - 3
Qty. Description
1 1/4" Temperature Sensor Probe Assembly
(includes illus. nos. 1 and 5 through 8)
1 225º Large Automatic Reset Thermostat ONLY
2 #6 Star Washer
2 #6-32 Hex Nut
2 Insulated Terminal ONLY
4 Socket Terminal ONLY
1 4-Pin Socket Connector ONLY
2 1/4" Tinnerman Push On Fastener
2 #6-32 x 1/4" Phillips Round Head Machine Screw
1 Microprocessor Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 10)
1 4-Pin Connector ONLY
4 Pin Terminal ONLY
2 #8-18 x 7/16" Phillips Pan Head TEK Screw

Microprocessor Sensor Bracket Assembly
