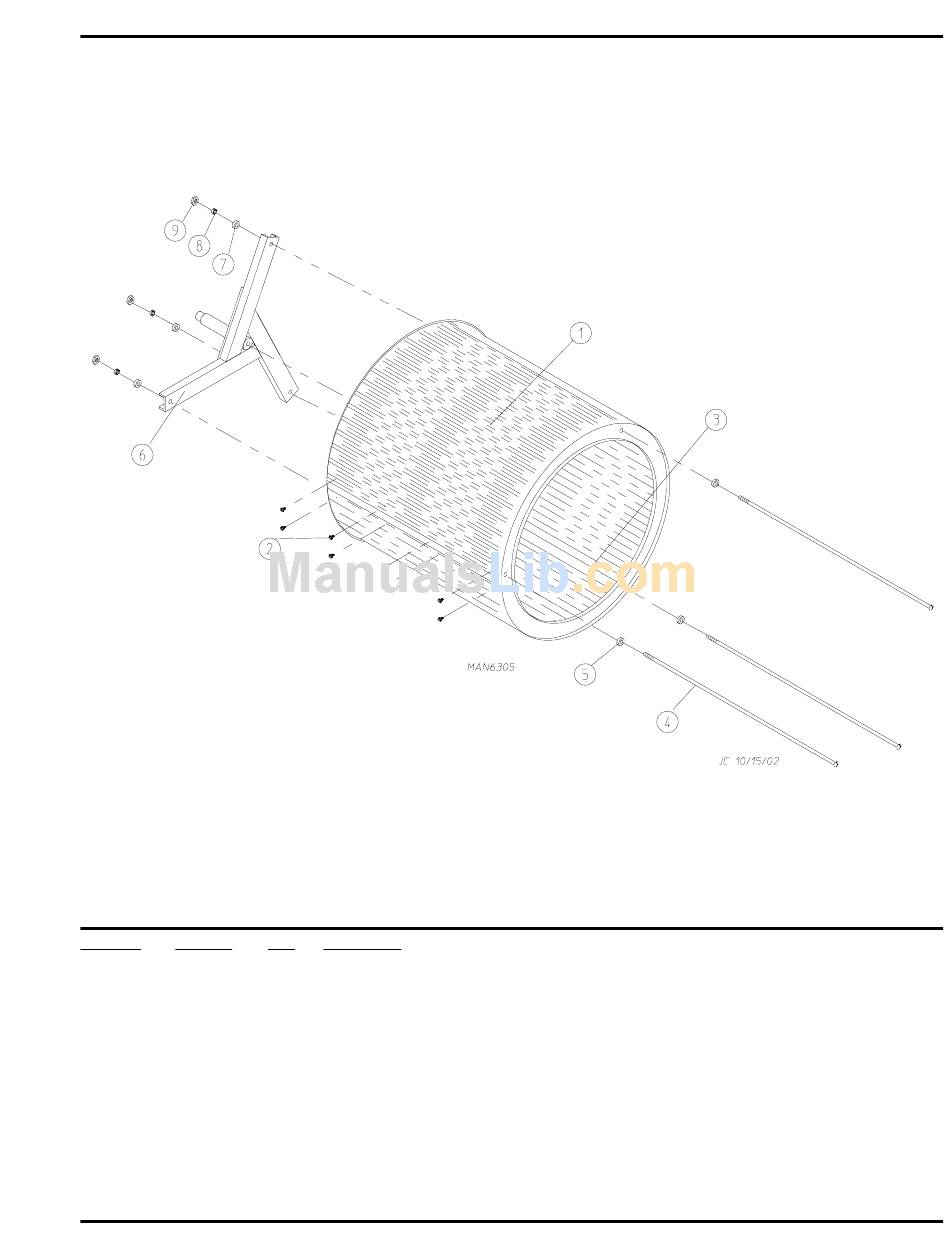

Tumbler / Support Assemblies - ADC AD-24 Parts Manual

Illus. No. Part No.
1 800843
800717
2 154210
3 301318
301317
4 100916
5 153004
6 800612
7 153004
8 153005
9 152005
450216 - 3
Qty. Description
1 Tumbler and Support Assembly Complete
(includes illus. nos. 1 through 9)
1 Tumbler ONLY
30 5/32" x 3/16" Large Flange Rivet
2 Tapered Rib ONLY (low rib)
1 Tapered Rib ONLY (high rib)
3 5/16-18 x 25" Tie Rod
3 3/8" x 1" Flat Washer
1 Tumbler Support ONLY
3 3/8" x 1" Flat Washer
3 3/8" Split Lock Washer
3 3/8-16 Hex Nut

Tumbler / Support Assemblies
