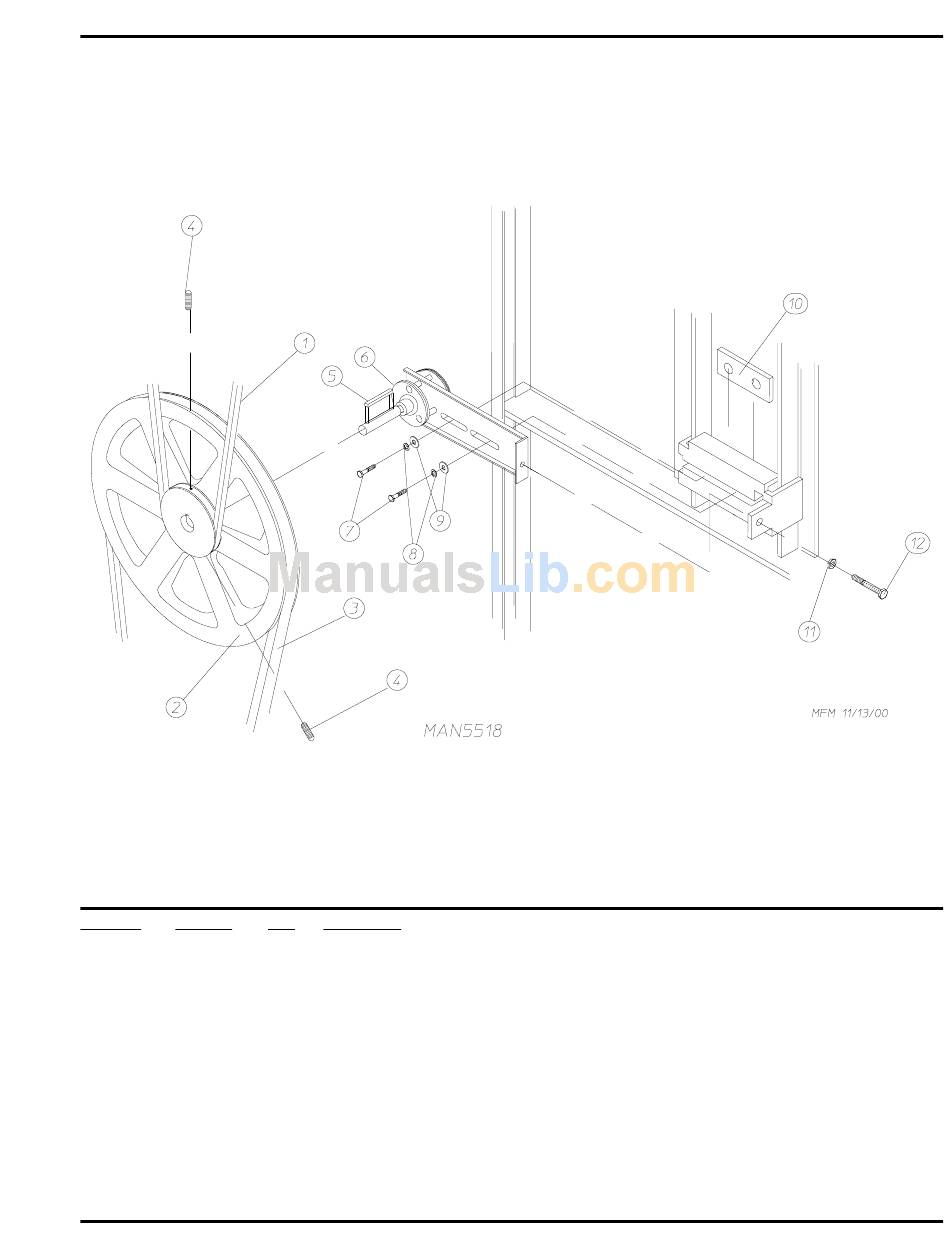

Idler Bearing Assembly - ADC AD-24 Parts Manual

Illus. No. Part No.
1 100111
2 101129
3 100105
4 154301
5 100705
6 882576
7 150617
8 153005
9 153004
10 801009
11 152004
12 150509
450216 - 3
Qty. Description
1 5L-650 V-Belt
1 9" x 2-1/2" Compound Pulley
1 4L-520 V-Belt (idler to motor)
2 5/16-18 x 1" Allen Setscrew
1 3/16" x 3/16" x 1-3/8" Key
1 Idler Bearing Assembly Complete
(includes illus. nos. 5 through 12)
2 3/8-16 x 1" Hex Head Machine Bolt
2 3/8" Lock Washer
2 3/8" Flat Washer
1 Idler Square Washer
1 5/16-18 Hex Nut
1 5/16-18 x 3" Hex Head Machine Bolt
www.amdry.com

Idler Bearing Assembly

17
