INSTALLATION INSTRUCTIONS
Equility
™
(Formerly LYNDON
Pressure Balance

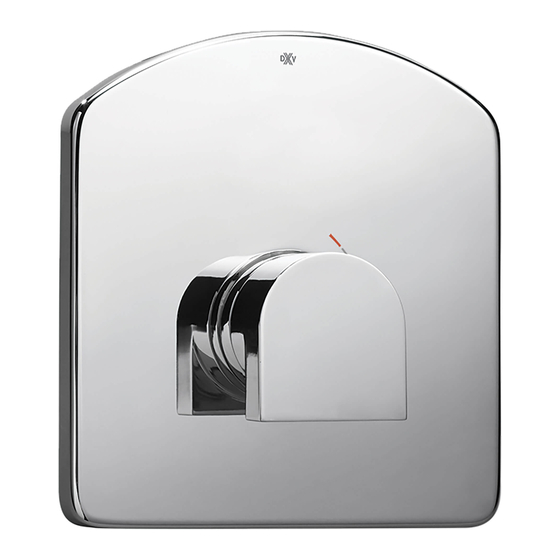

Shower Valve Trim Kit
Models D35109500, D35109500RB
To be used with D35000500.191
Pressure Balanced Shower Valve
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.

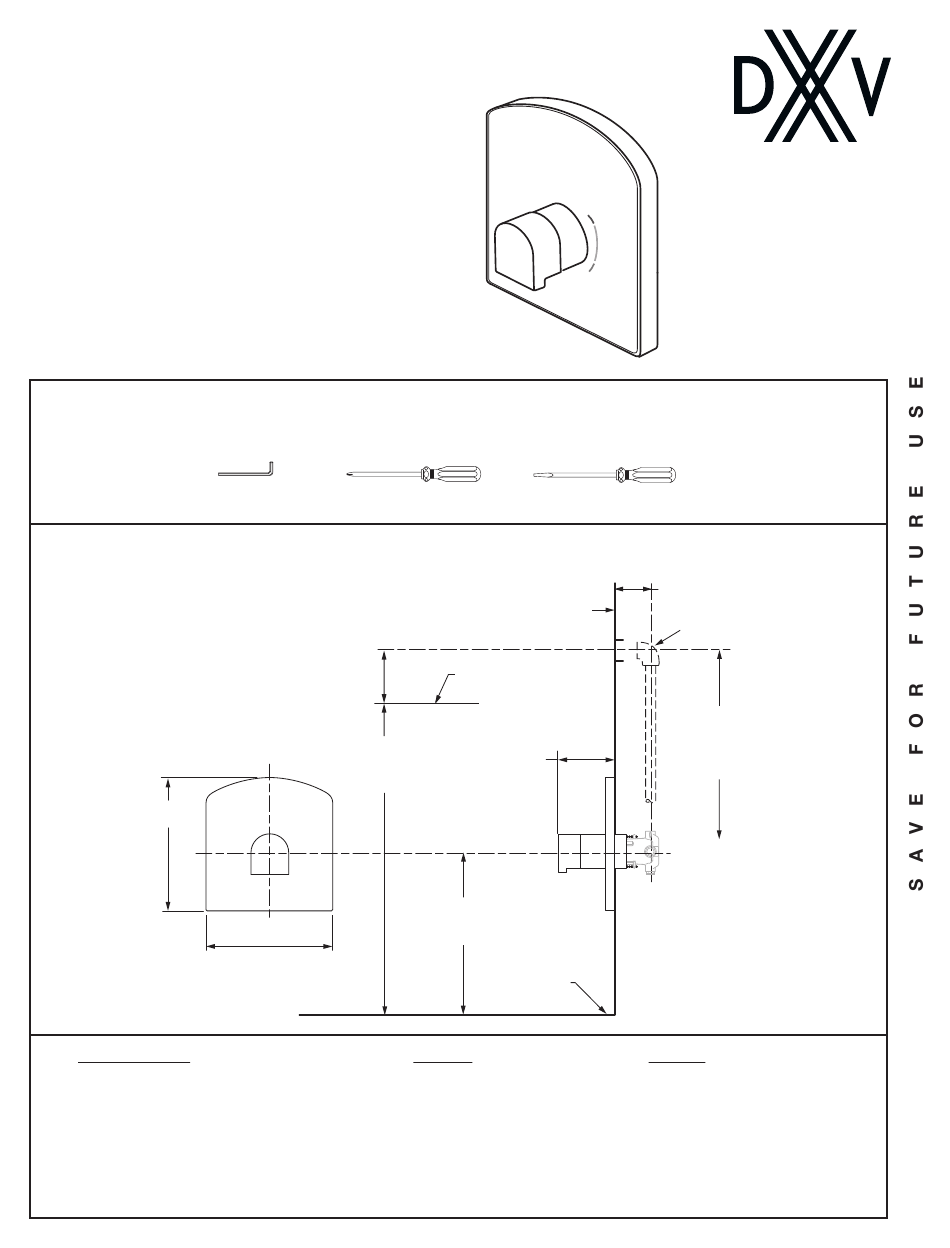

ROUGHING-IN DIMENSIONS:
• For reference
8-3/8"
(185 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
)
®
Hex Wrench
Phillips Screwdriver
(Supplied)
74" FOR HEAD
CLEARANCE
(OPTIONAL)
(1880 mm)
6-11/16"
(169 mm)
Flat Blade Screwdriver
FINISHED WALL
BOTTOM OF
SHOWER HEAD
3" TO 4"
(76 TO 102 mm)
48" TO 54"
(1219 TO 1372 mm)
OPTIONAL
BOTTOM OF TUB
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
1-5/8" TO 3-1/4"
(41 TO 83 mm)
1/2" (13 mm) I.P.S.
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
80'' & 86''
(2032 & 2184 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965571 REV. 1.8 (5/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Equility D35109500
Summary of Contents for DXV Equility D35109500
- Page 1 Shower Valve Trim Kit Models D35109500, D35109500RB To be used with D35000500.191 Pressure Balanced Shower Valve Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 REMOVE PLASTER GUARD Turn off hot and cold water CAUTION supplies before beginning. • Figure 1. When finished tiling the wall, remove PLASTER GUARD (1). Figure 1. ADJUST HOT LIMIT STOP (MUST BE DONE PRIOR TO TRIM INSTALLATION) By restricting HANDLE rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1) reduces risk of accidental scalding.
- Page 3 INSTALL HANDLE NOTE: Turn off valve prior to installation of handle. (Turn fully clockwise) • Install HANDLE ADAPTER (1) onto VALVE STEM (3) and secure with SCREW (4). • Align LEVER HANDLE (5) so lever is facing down and tighten SET SCREW (6) with hex wrench to secure LEVER HANDLE (5).
