INSTALLATION INSTRUCTIONS
Equility
™
(Formerly LYNDON

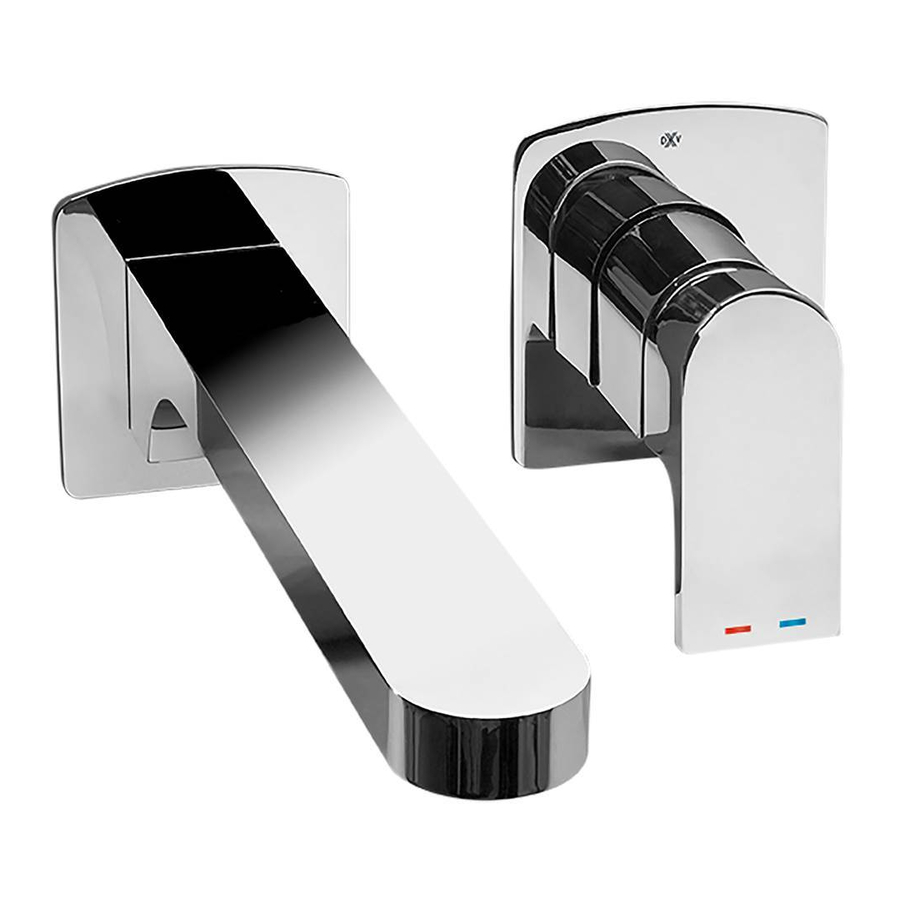

Single Lever
Wall-Mount Faucet
Models D35109400
D35109400RB
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
Tubing Cutter

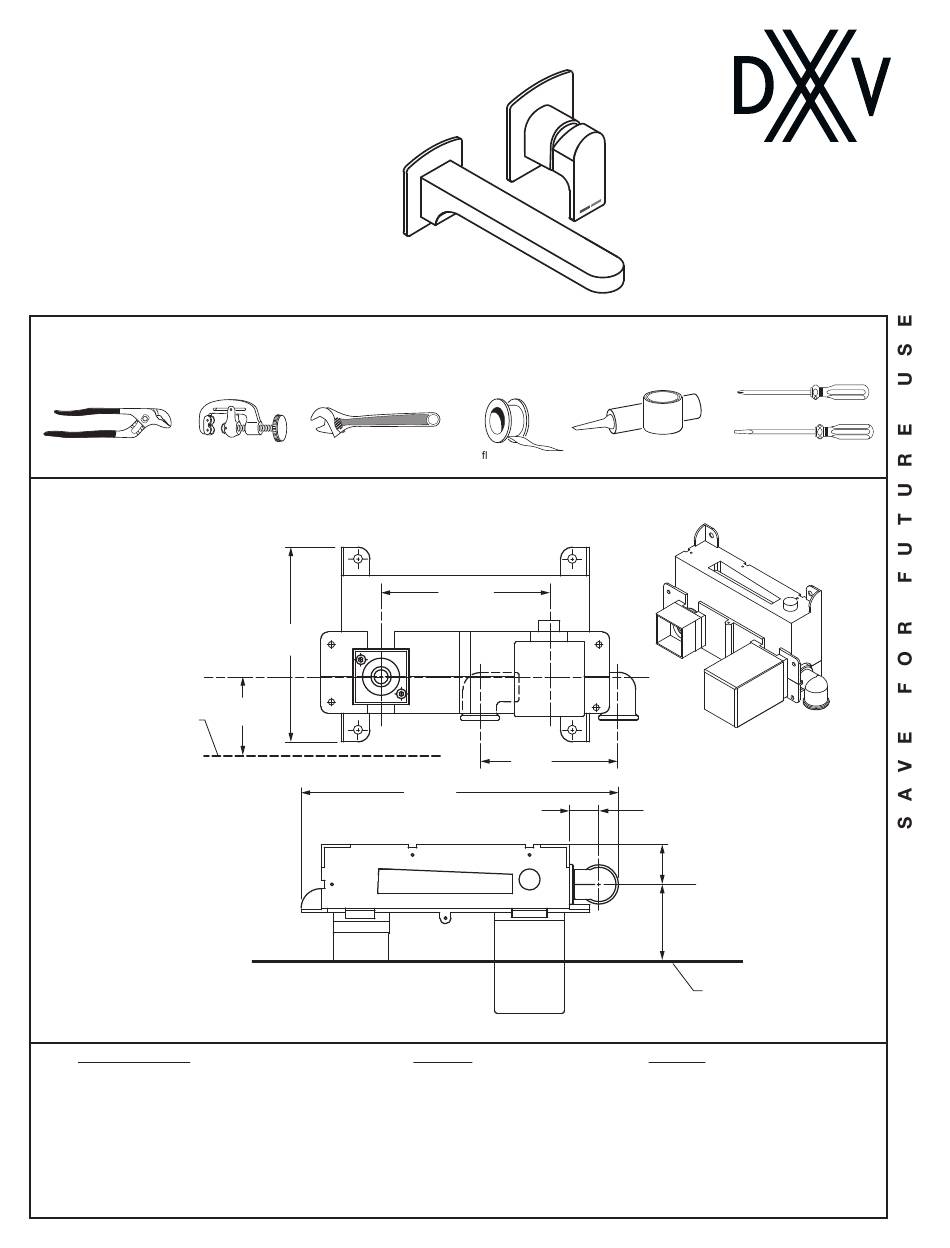

ROUGHING-IN DIMENSIONS:
• To assure proper positioning in
relation to wall, note roughing-in
dimensions.
FRONT
VIEW
RIM OF
LAVATORY
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
)
®
Adjustable Wrench
5-1/2"
(139 mm)
4" MIN.
(102 mm)
TOP
VIEW
Te on Tape
Plumbers' Putty or Caulking
4-1/2"
(120mm)
3-15/16"
(99 mm)
8-15/16"
(227 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
7/8"
(21 mm)
1-1/8"
(29 mm)
2-1/8" MAX. (55 mm)
1-3/8" MIN. (35 mm)
FINISHED WALL
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965582 REV. 1.8 (5/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Equility D35109400
Summary of Contents for DXV Equility D35109400
- Page 1 Single Lever Wall-Mount Faucet Models D35109400 D35109400RB Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
-
Page 2: Roughing-In Dimensions
ROUGHING-IN DIMENSIONS: • For reference 3-3/8" (85 mm) 3-1/16" (40 mm) 3-3/4" (95 mm) 3-5/8" (92 mm) 3" 9-7/8" (75 mm) (250mm) 3-3/8" (85 mm) 1-13/16" (46 mm) 3/4" (18 mm) 9-1/16" 1-5/8" (230 mm) (40 mm) INSTALL VALVE BODY Turn off hot and cold water CAUTION supplies before beginning. -
Page 3: Install Handle
INSTALL WALL SPOUT • Remove the two PLASTER GUARDS (1, 2) if not alreadey removed. Remove BACKING (3) from GASKET SEAL (4) and apply GASKET SEAL (4) to the back of the SPOUT ESCUTCHEON (5). Fig. A • Align MOUNTING SCREWS (6) and SPOUT ADAPTER (7) and install into SPOUT ESCUTCHEON (8). Fig. B •... - Page 4 TEST INSTALLED FAUCET • Turn HANDLE (1) to “off” position. • Remove AERATOR (2) using the KEY (3). • Turn hot and cold water supplies on. Operate COLD HANDLE (1) to flush water lines thoroughly. Check spout connections for leaks. •...
- Page 5 Equility ™ (Formerly LYNDON ® Single Lever Wall-Mount Faucet MODELS NUMBER D35109400 D35109400RB Replace the “YYY” with appropriate finish code POLISHED CHROME M964778-YYY0A BRUSHED NICKEL SPOUT ESCUTCHEON MATTE BLACK M964840-0070A SPOUT ADAPTER WITH SCREWS M964846-YYY0A SPOUT ASSEMBLY (INCLUDES-SPOUT, AERATOR AND KEY) M964844-YYY0A HANDLE ESCUTCHEON KIT M964836-0070A...
