Summary of Contents for TOORX SRX40S

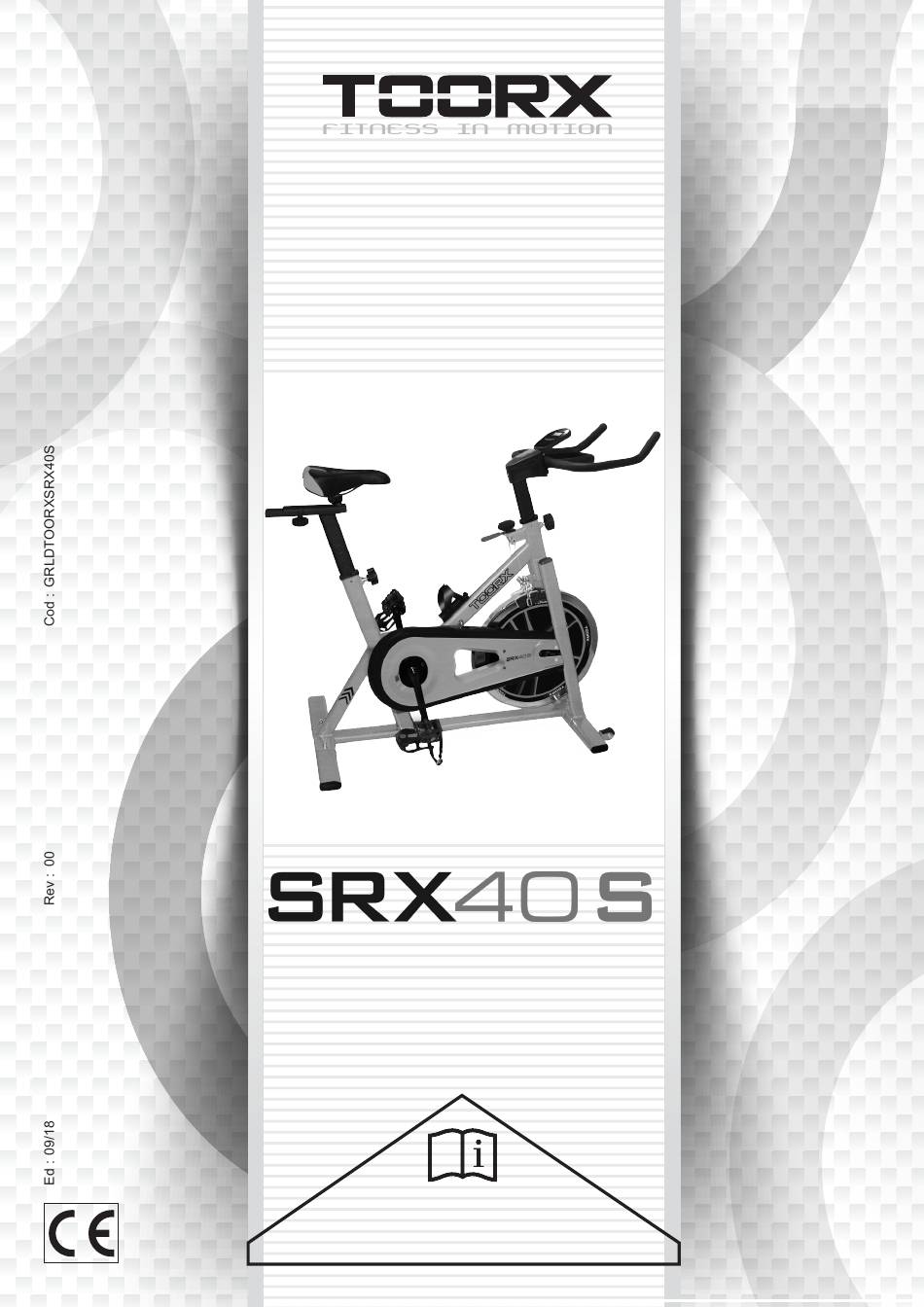

  • Page 1 INSTRUCTION...
  • Page 2: Exploded View And Parts List

    EXPLODED-VIEW & PARTS LIST:...
  • Page 3 NAME QUANTITY SPEC PEDAL L JD-301(9/16") L PEDAL R JD-301(9/16") R END CAP1 70*30*1.5 CARRIAGE BOLT GB/T 12-1988 M8*42 REAR STABILIZER WELDING FLAT WASHER GB/T 95-2002 GB/T 802-1988 M8 DOMED NUT (H=16mm) SPRING ADJUSTMENT KNOB φ57*62 (M16*1.5) PLASTIC SLEEVE 60*30*1.5 FLAT WASHER GB/T95-2002 12 VERTICAL SEAT POST...
  • Page 4 NAME QUANTITY SPEC LEFT CRANK 170*27 SENSOR SR-202 GB/T 802-1988 M12X1.25 FIXING NUT 2 (H=16mm) FIXING BOLT M6*58 GB/T 889.1-2000 M6 SCREW 1 GB/T 845-1985 ST4.2*19 SCREW 2 GB/T 15856.1-2002 ST4.2X19 SCREW 3 GB/845-85 ST4.8X13 OUTER CHAIN COVER 654*263*49 (507g) LITTLE CHAIN COVER 108*37*3 (7g) AXIS...
  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTION: 1.PREPARATION: A. Before assembling make sure that you will have enough space around the item. B. Use the present tooling for assembling. C. Before assembling please check whether all needed parts are available (at the above of this instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which this item consists of.
  • Page 6 FIG.3: Slide the Handlebar Post (pt.17) into the handlebar post housing on the main frame. You will have to slacken the knurled section of the Spring Adjustment Knob (pt.7) and pull the knob back and then select and align holes for the desired height.
  • Page 7 ADJUSTMENT *To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and pull back the knob. Position the vertical seat post for the desired height so that holes are aligned, then release the knob and retighten it.
  • Page 8 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
