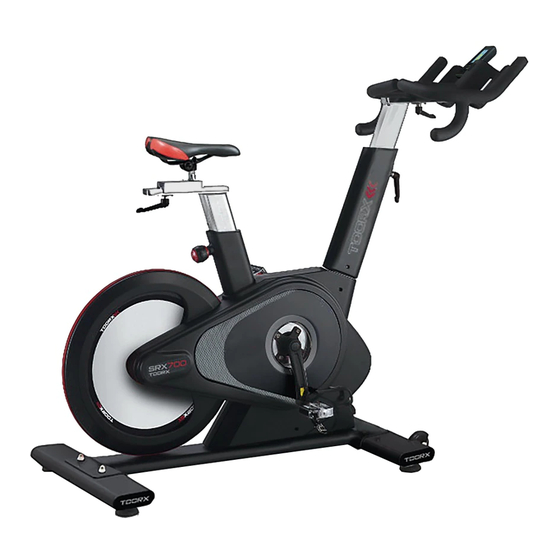

TOORX SRX700 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION
iConsole App Manual
www.toorx.it/iconsole

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRX700 and is the answer not in the manual?

Questions and answers

Related Manuals for TOORX SRX700

Summary of Contents for TOORX SRX700

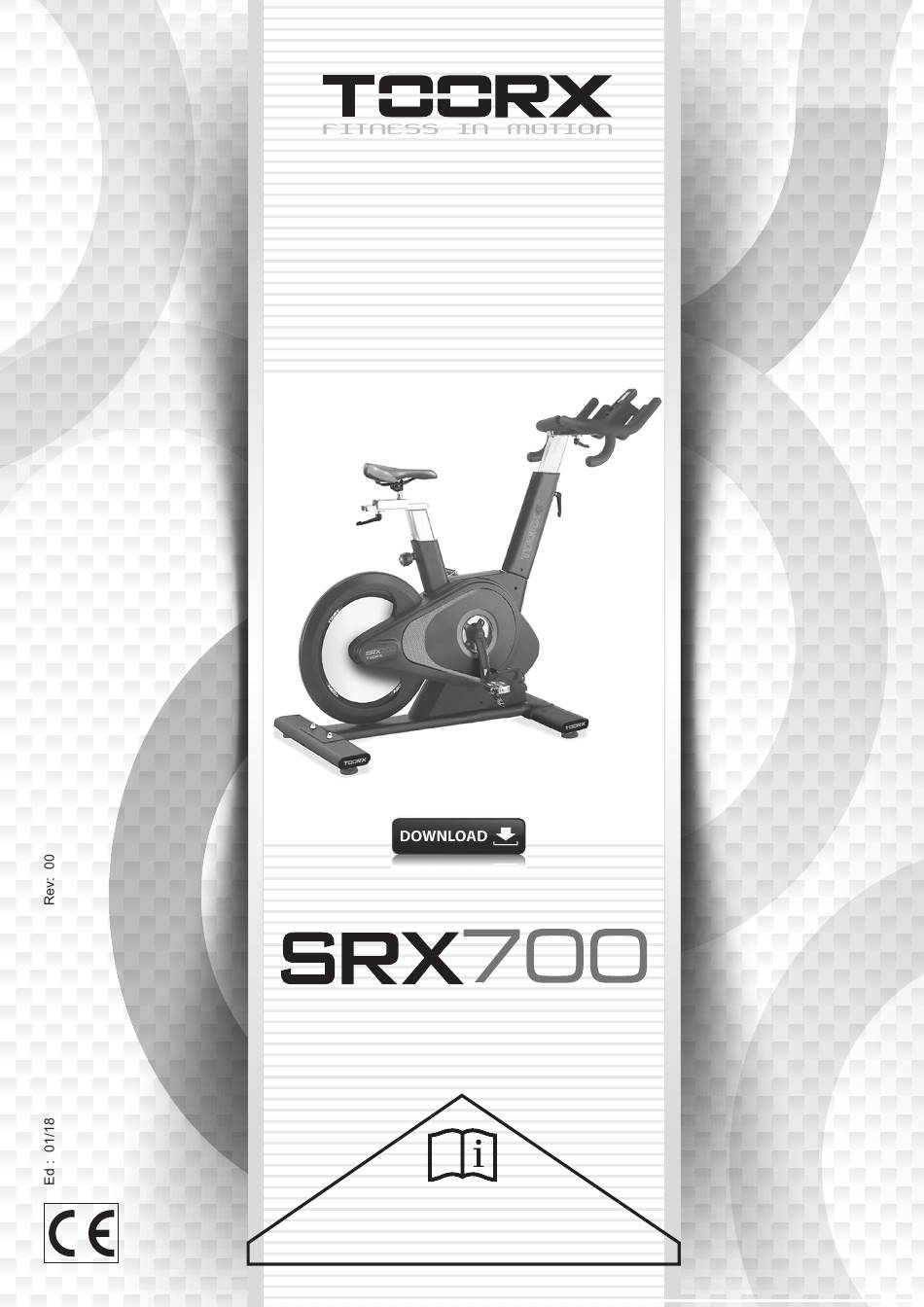

  • Page 1 INSTRUCTION iConsole App Manual www.toorx.it/iconsole...

  • Page 2: Exploded View And Parts List

    EXPLODED-VIEW & PARTS LIST：...

  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTION: 1.PREPARATION: A. Before assembling make sure that you will have enough space around the item. B. Use the present tooling for assembling. C. Before assembling please check whether all needed parts are available (at the above of this instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which this item consists of.
  • Page 6 FIG.3: The L type elastic pin (24) to relax and pull down, then, an adjusting tube assembly (17) inserted into main frame assembly (16) of the pipe between the liner, make it to the appropriate location, open L type elastic pin (24) and lock it. Then the handrail assembly (18) is inserted into the adjusting tube assembly arm (17), the use of 3# within the six...
  • Page 7 After power is energized, the resistance is adjusted by the electronic watch.
  • Page 8 COMPUTER INSTRUCTION MANUAL DISPLAY FUNCTIONS ITEM DESCRIPTION TIME Workout time displayed during exercise. Range 0:00 ~ 99:59 SPEED Workout speed displayed during exercise. Range 0.0 ~ 99.9 DISTANCE Workout distance displayed during exercise. Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise.

  • Page 9: Key Function

    KEY FUNCTION ITEM DESCRIPTION Increase resistance level; Adjust function value up and setting selection. Decrease resistance level; Down Adjust function value down and setting selection. Mode Confirm/Enter setting or selection. Total Reset: Hold on pressing for 2 seconds, computer will reboot and start from user setting. Reset Reset: Reverse to main menu during presetting workout value or stop mode.
  • Page 10 Picture3 Picture4 Picture5 Picture6 4. Beginner Mode Press UP or DOWN to select Beginner mode and press MODE to confirm. Press UP or DOWN to select Beginner 1~4 (Picture 7) and press MODE to confirm. Press UP or DOWN to set TIME and press START/STOP key to start workout. Then press UP or DOWN to adjust resistance level.
  • Page 11 Picture 9 Picture 10 7. Cardio Mode Press UP or DOWN to select Cardio mode and press MODE to get into (Picture 10). Press UP or Down to set AGE, then select 55%.75%.90% or TAG (TARGET H.R) and press MODE to confirm. Press UP or DOWN to preset workout TIME and press MODE to confirm.
  • Page 12 10. i-Console+ APP The console has been built-in Bluetooth 4.0 module for APP function. First, download i-Console+ APP to tablet or mobile device from App Store or Google play firs; Then, turn on Bluetooth on tablet, search for console device and press connect. (password:0000) Pair tablet and console thru BT.
  • Page 13 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
