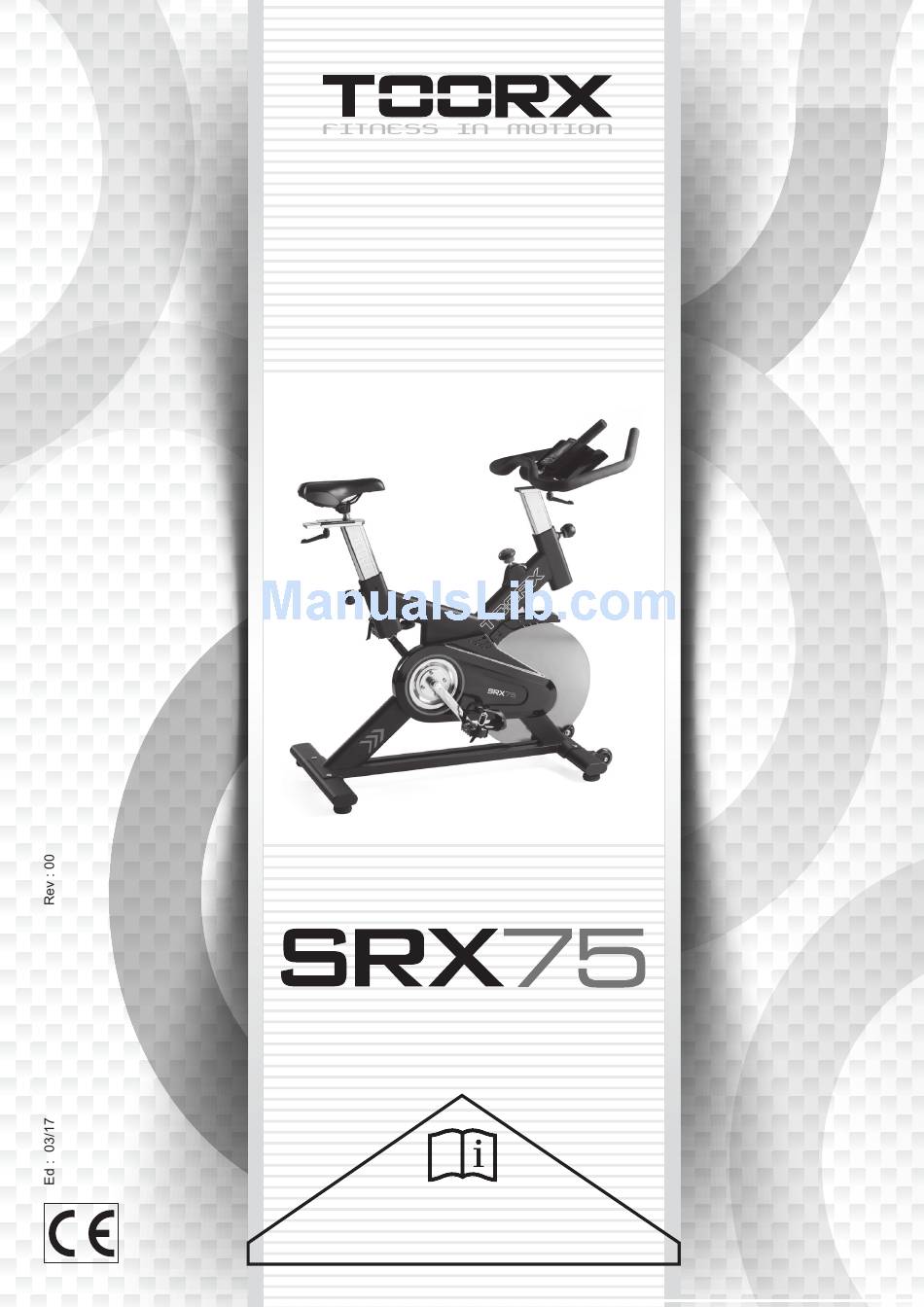

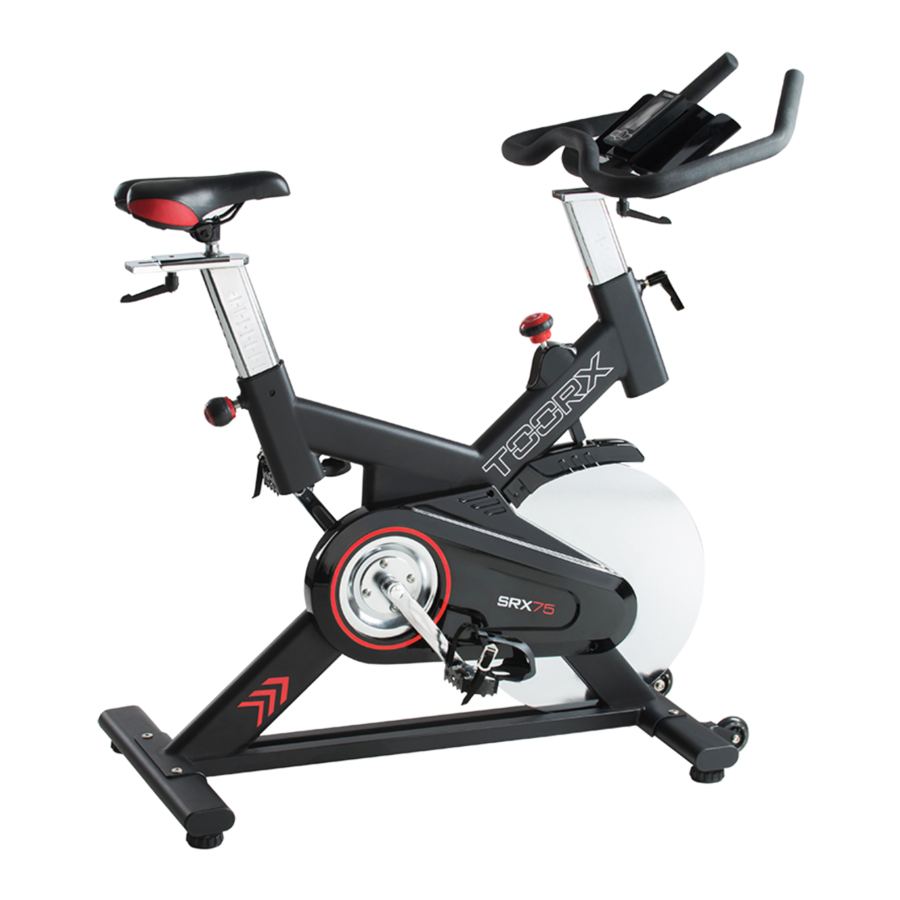

- Page 1 INSTRUCTION...
-
Page 2: Explosive View
EXPLOSIVE VIEW... -
Page 3: Parts List
PARTS LIST PART NO. DESCRIPTION Computer 1 PC Bottle cage 1 PC Screw M5x20 2 PCS Handlebar 1 PC Handlebar post 1 PC Brake knob 1 PC Brake cover 1 PC Hexagon Nut M8 2 PCS Brake bar 1 PC Spring 1 PC Square nut... - Page 4 Alex bushing 1 PC Hexagon Nut M20 2 PCS Bearing 6004 2 PCS Pipe φ25xφ20x44.1L 1 PC Foot pad 4 PCS Rear tube 1 PC Chain cover(inner) 1 PC Screw M4x20 6 PCS Washer φ20xφ25x2T 1 PC Nylon nut M8 4 PCS Washer 4 PCS...
- Page 5 Nylon nut M6 2 PCS Board 2 PCS Adjuster φ12 2 PCS Flywheel axle φ12 1 PC Flywheel 18kg 1 PC Bearing 6001 2 PCS Hexagon nut M12 1 PC Washer φ12xφ18x2t 1 PC Flange nut M12 1 PC Screw M4x10 4 PCS Flywheel trim cover 1 PC...
-
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 Attach the rear tube (32) to the main frame using two step screws(50). Attach the front tube (45) to the main frame same as the rear tube. - Page 7 STEP 2 Put seat post (17) insert main frame(49) with lock pin and then adjust height. Fix seat(15) on the slider.
- Page 8 STEP 3 The pedals (23L and 23R) are marked “L” and “R”-left and right. Connect them to their appropriate crank set. The right crank set is on the right hand side of the cycle as you sit on it. Note that the Right pedal should be threaded on clockwise and the left pedal on anti-clockwise.
- Page 9 STEP 4 Put handlebar post(5) insert main frame with lock pin and then adjust height. Fix handlebar(4) on handlebar post(5) using washer and knob. And fix the computer holder(2) on the handlebar(4),put computer(1) into computer holder(2),then insert the sensor plug (14) into the sensor joint of computer.
-
Page 10: Front View
EXERCISE MONITOR INSTRUCTION MANUAL FRONT VIEW HOW TO REMOVE BATTERY: 1. Pull off the battery cover and place one of CR2032 3V battery into battery housing on back of monitor, please refer to below illustrations. 2. Insure batteries are correctly positioned and battery springs are in proper contact with batteries. -
Page 11: Key Guide
KEY GUIDE ENTER: 1. Press this button to enter setting mode. Normal→Time→DIST→CAL→T.H.R 2. Press this button to confirm the setting values 3. Hold 3 seconds to reset all of the values to zero. Increase the setting value of the following functions. Time→DIST→CAL→T.H.R DOWN: Decrease the setting value of the following functions. - Page 12 CALORIE: press the button of ENTER to CAL function and press the UP or DOWN button to enter the value you want. Count up: Without setting the distance value, the monitor will count up the distance from 0.1~999.0. Count down: Setting the exercise calorie from 1.0~999, the monitor will count down from your setting values.
- Page 13 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
