 Prepare the parts and the tools
Prepare the components to be installed or replaced.
When you hold or transport the components, use the special antistatic package.
Prepare the cross screwdriver, screws, plastic supports, cooling gel, and ESD-
preventive wrist strap.
 Confirm installation or changing position
Confirm the position where COMX-P2020 Module will be installed.
 If a serious problem occurs and cannot be solved when you install or replace the
component, contact SMART Embedded Computing for technical support.
2.5

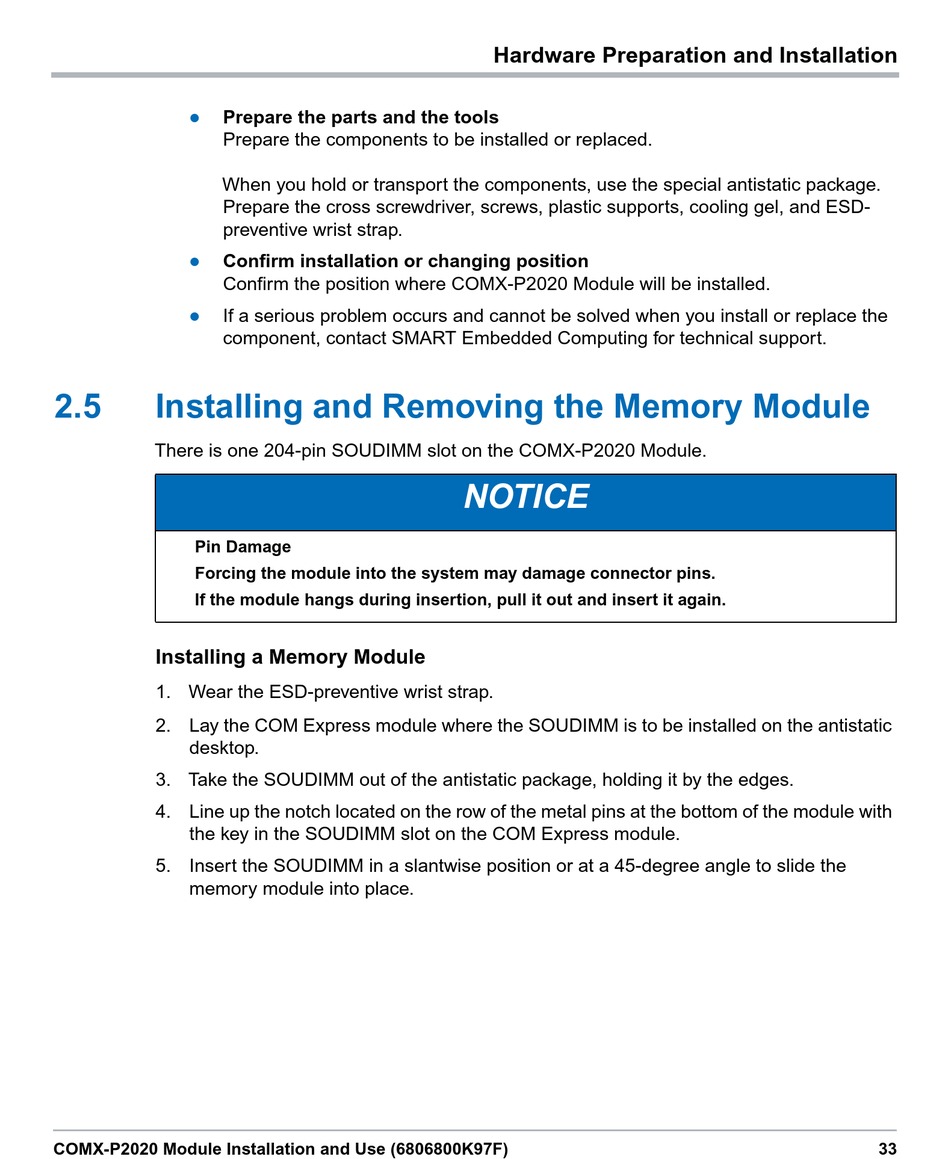

Installing and Removing the Memory Module

There is one 204-pin SOUDIMM slot on the COMX-P2020 Module.
Pin Damage
Forcing the module into the system may damage connector pins.
If the module hangs during insertion, pull it out and insert it again.
Installing a Memory Module
1. Wear the ESD-preventive wrist strap.
2. Lay the COM Express module where the SOUDIMM is to be installed on the antistatic
desktop.
3. Take the SOUDIMM out of the antistatic package, holding it by the edges.
4. Line up the notch located on the row of the metal pins at the bottom of the module with
the key in the SOUDIMM slot on the COM Express module.
5. Insert the SOUDIMM in a slantwise position or at a 45-degree angle to slide the
memory module into place.
