Default Settings; Unpacking And Inspecting The Module; Table 2-4 Default Settings - SMART Embedded Computing COMX-P2020 Installation And Use Manual

2.2

Default Settings

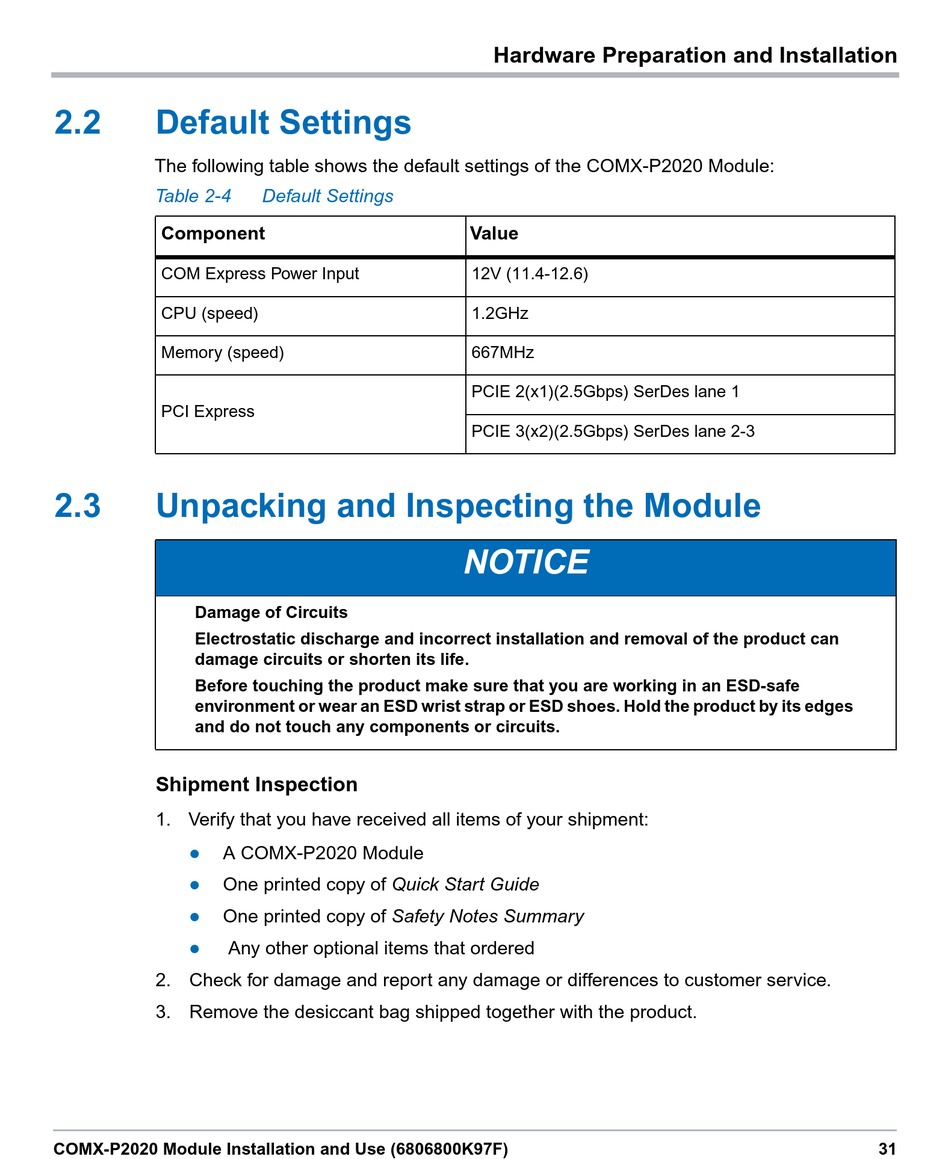

The following table shows the default settings of the COMX-P2020 Module:
Table 2-4
Component
COM Express Power Input
CPU (speed)
Memory (speed)
PCI Express
2.3

Unpacking and Inspecting the Module

Damage of Circuits
Electrostatic discharge and incorrect installation and removal of the product can
damage circuits or shorten its life.
Before touching the product make sure that you are working in an ESD-safe
environment or wear an ESD wrist strap or ESD shoes. Hold the product by its edges
and do not touch any components or circuits.
Shipment Inspection
1. Verify that you have received all items of your shipment:
 A COMX-P2020 Module
 One printed copy of Quick Start Guide
 One printed copy of Safety Notes Summary
 Any other optional items that ordered
2. Check for damage and report any damage or differences to customer service.
3. Remove the desiccant bag shipped together with the product.
COMX-P2020 Module Installation and Use (6806800K97F)
Default Settings
Hardware Preparation and Installation
Value
12V (11.4-12.6)
1.2GHz
667MHz
PCIE 2(x1)(2.5Gbps) SerDes lane 1
PCIE 3(x2)(2.5Gbps) SerDes lane 2-3
NOTICE
31
