Summary of Contents for Anviz T50

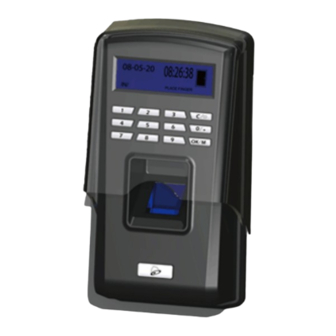

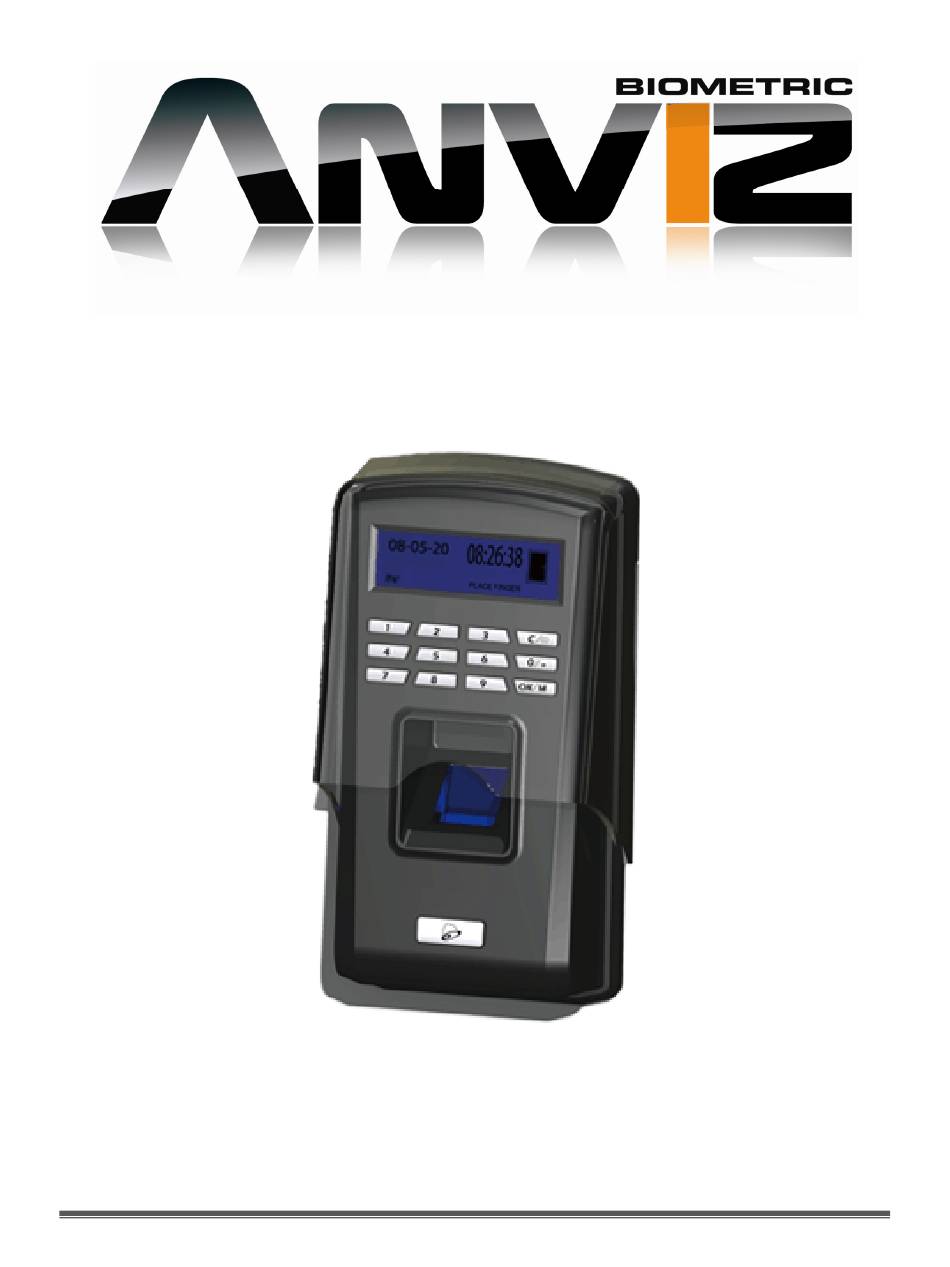

- Page 1 Page 1 Anviz USA...
- Page 2 The T50 device operates on 12V only. The T50 device can work stand alone and also it can be connected to a network thru its TCP/IP network adpater, the network feature allows conectivity to the T50 device from any computer...
-
Page 3: Chapter 1 - Wiring And Cable Connections
Chapter 1 – Wiring and cable connections. 1.1 - Dry contact connection diagram. 1.2 - Access control wiegand connection. ( using Anviz SC-021 access control panel ) 1.3 - Network connection settings and configuration. 1.1 Dry contact connection diagram. Page 3... - Page 4 1.2 Access control wiegand connection diagram. Page 4 Anviz USA...
- Page 5 • T50 device sub net : 255.255.255.000 • T50 device gateway : 192.168.000.001 If you need to change these settings to be able to connect the T50 device to your network, the configuration can be done thru the T50 Access control management software and a “crossover”...
- Page 6 Device # : The software will automatically generate this number in sequence, leave it as 1 or type the number you wish to assign the connection. Device serial # : Type here the T50 serial number or you may leave it same as the device number.
- Page 7 Connection type : Select TC/IP and here enter IP address 192.168.0.218 which is the IP configured on the T50 network settings. This is the IP address that needs to modified to the one within the network settings where the T50 device will be installed.
- Page 8 ) and click on Device IP settings, check marks the ip settings and here you may enter the new T50 device IP address, subnet mask and gateway, then press ok to save the new IP addresses. The T50 device can now be connected to the network with the new IP settings.
-
Page 9: Chapter 2 - T50 Use And Operation
2.4 – How to change the T50 admin password. 2.1 How to enroll fingerprints The T50 device is password protected and it will go on power saving mode after a couple minutes of inactivity meaning that the blue light will turn off. -
Page 10: How To Set The Date And Time
• Using the keypad enter 2 digits for month then 2 digits for day the 2 digits for year, then press ok. • Then type the correct date and press OK. • Done. Exit by pressing on C key a couple times to go back to the main screen. Page 10 Anviz USA...
