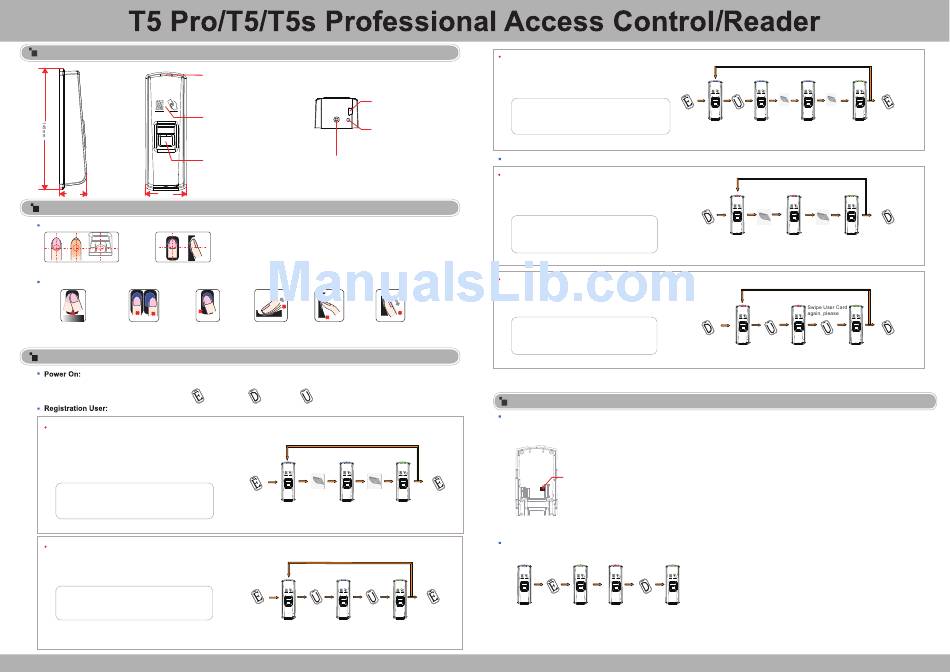

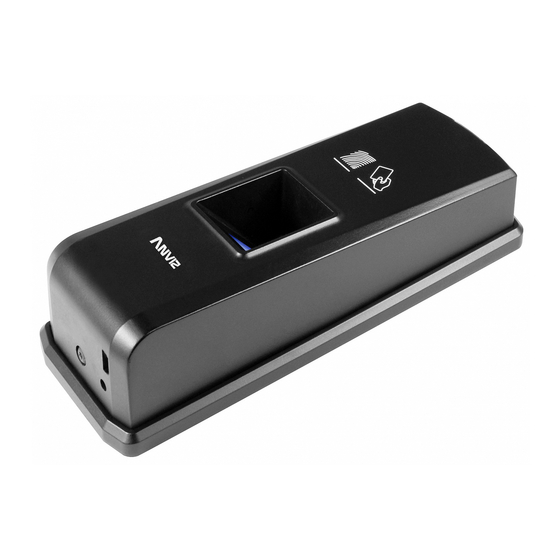

Anviz T5 Pro User Manual

Reader Appearance
LED
There are three colours
for device status: Red,
Blue and Green.
Card Reader Area
Swipe the card here.
Fingerprint Sensor
Place the finger here.
37mm 55mm
Illustration for placing finger
Correct method
( Straighten your finger and then place it on the sensor ensuring the finger is down flat and covers the entire sensor window)
:
Always place finger in Make sure you cover the entire sensor surface
the center of the sensor. with as much of your finger as possible.
Incorrect method :
DO NOT move your finger DO NOT place finger DO NOT place finger
before the backlights of away from the center at an angle.
sensor turns off. of the sensor window.
Operation Guide
DC 12V supply the power for device. Blue LED flashes fast and Fingerprint Sensor lights with beeps.
There are 4 cards in the packing: Enroll Card Delete Card
Add Fingerprint Only: (Operation Steps show as figure 1.1)
After registed you can continue register another user or swipe
Enroll Card save and exit.
Notice: , Red LED flashes
When place finger
with two long beeps means the finger
have been registered.
Add Card Only: ( Operation Steps show as figure 1.2)
After registed you can continue register another user or swipe
Enroll Card save and exit.
Notice:When swipe card, Red LED flashes
twice with two long beeps means the User
Card have been registered.
Underneath:
Mini USB Port
Reset Button
Screw Hole
:
DO NOT take off finger DO NOT use just DO NOT slide your finger
during the fingerprint your fingertip. during the fingerpint
verification process. verification process.
User Card * 2
Continue to register
Swipe Enroll Place finger Place finger
again, please
Card, begin
Blue LED Blue LED flashes fast Green LED lights up
flashes and FingerPrint Four short beeps
Registration Successed
sensor lights up
Figure 1.1
Continue to register
Swipe Enroll Swipe Swipe User Card Swipe Enroll
Card, begin User Card again, please Card, end
Blue LED Blue LED flashes fast Green LED lights up
flashes and FingerPrint Four short beeps
sensor lights up Registration Successed
Figure 1.2
Add Card+Fingerprint: (Operation Steps show as figure 1.3)
After delete you can continue delete another user or swipe
Delete Card save and exit.
Notice:When swipe card, Red LED flashes
twice with two long beeps means the User
Card have been registered.
Delete User:
Delete fingerprint only: (Operation Steps show as figure 1.4)
After delete you can continue delete another user or swipe
Delete Card save and exit.
Notice: When place finger, Red LED
flashes with long beep means the
fingerprint does not exist in the device.
Delete Card / Card+Fingerprint: (Operation Steps show as figure 1.5)
After delete you can continue delete another user or swipe
Delete Card save and exit.
Notice: When swipe card, Red LED
flashes with long beep means the
fingerprint does not exist in the device.
Function button
Function Button
Press the button until heard beeps, that eliminate Enroll Card and Delete Card information in the device. After that
MUST register management cards (Enroll Card and Delete Card) to run the machine.
Swipe Enroll
Card, end
Function Button
Notice: The operation will not delete any user data stored in the device.
Register Management Cards (Enroll Card and Delete Card)
Swipe Enroll
Card
In orginal state Green LED lights Red LED lights
Blue LED flashes Four short beeps
Figure 1.6
Continue to register
Swipe Enroll Swipe Place finger
Card, begin User Card
Blue LED Blue LED flashes Blue LED flashes
flashes fast and FingerPrint fast and FingerPrint
sensor lights up sensor lights up
Figure 1.3
Continue to delete
Swipe Delete Place finger Place finger
again, please
Card, begin
Red LED flashes Red LED flashes
fast and FingerPrint fast and FingerPrint
sensor lights up sensor lights up
Figure 1.4
Continue to delete
Swipe Delete Swipe
Card, begin User Card
Red LED flashes Red LED flashes fast
Figure 1.5
Swipe Delete
Card
Green LED lights
Four short beeps
V1.3
Place finger Swipe Enroll
again, please Card,end
Green LED lights up
Four short beeps
Registration Successed
Swipe Delete
Card, end
Green LED lights up
Four short beeps
Delete Successed
Swipe Delete
Card, end
Green LED lights up
Four short beeps
Delete Successed
