Color Frame Retaining Clip

The color frame holder is equipped with a spring-loaded retaining clip. This prevents color frames and
accessories from falling out (Fig. 06).
Make sure that all color frame accessories are locked in position with the retaining clip
01) Release the retaining clip by pushing it sideways, until it opens.
02) Insert the color frame(s).
03) Lock the retaining clip by pushing it to the initial position, until it is secured.

Shaping the Beam

You may shape the beam with the shutters, a gobo holder or by rotating the barrel.

Rotating the Barrel

01) Loosen the barrel rotation control. It can be found directly behind the shutters on the bottom side of
the reflector housing (Fig. 07). Do not remove the barrel rotation control.
02) Rotate the barrel to the desired position.
03) Tighten the barrel's rotation control to lock it in position.
Ordercode: 33090
before hanging the Performer.
10

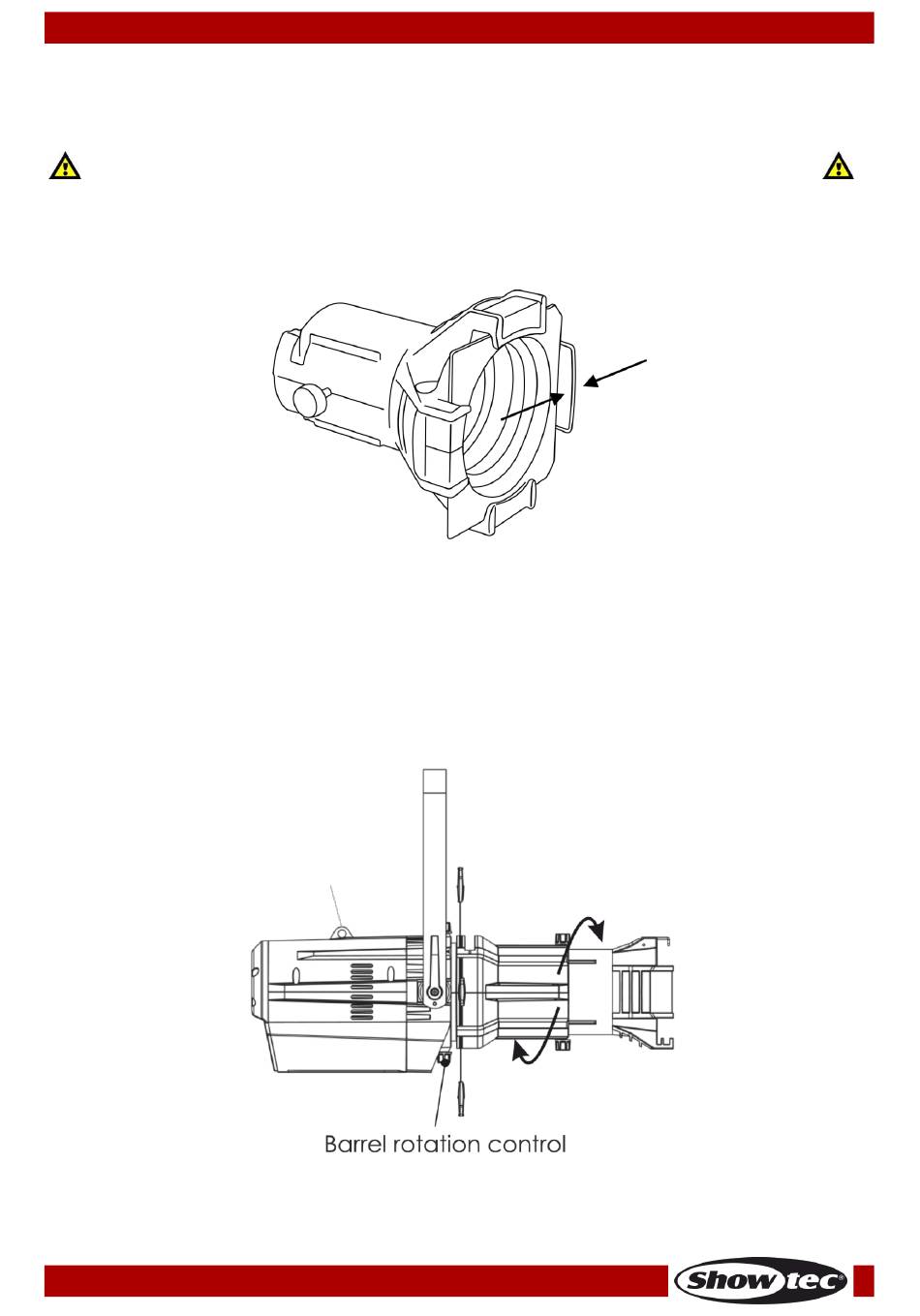

Fig. 06
