Open the front panel and request service engineer to replace
batteries. Steps:

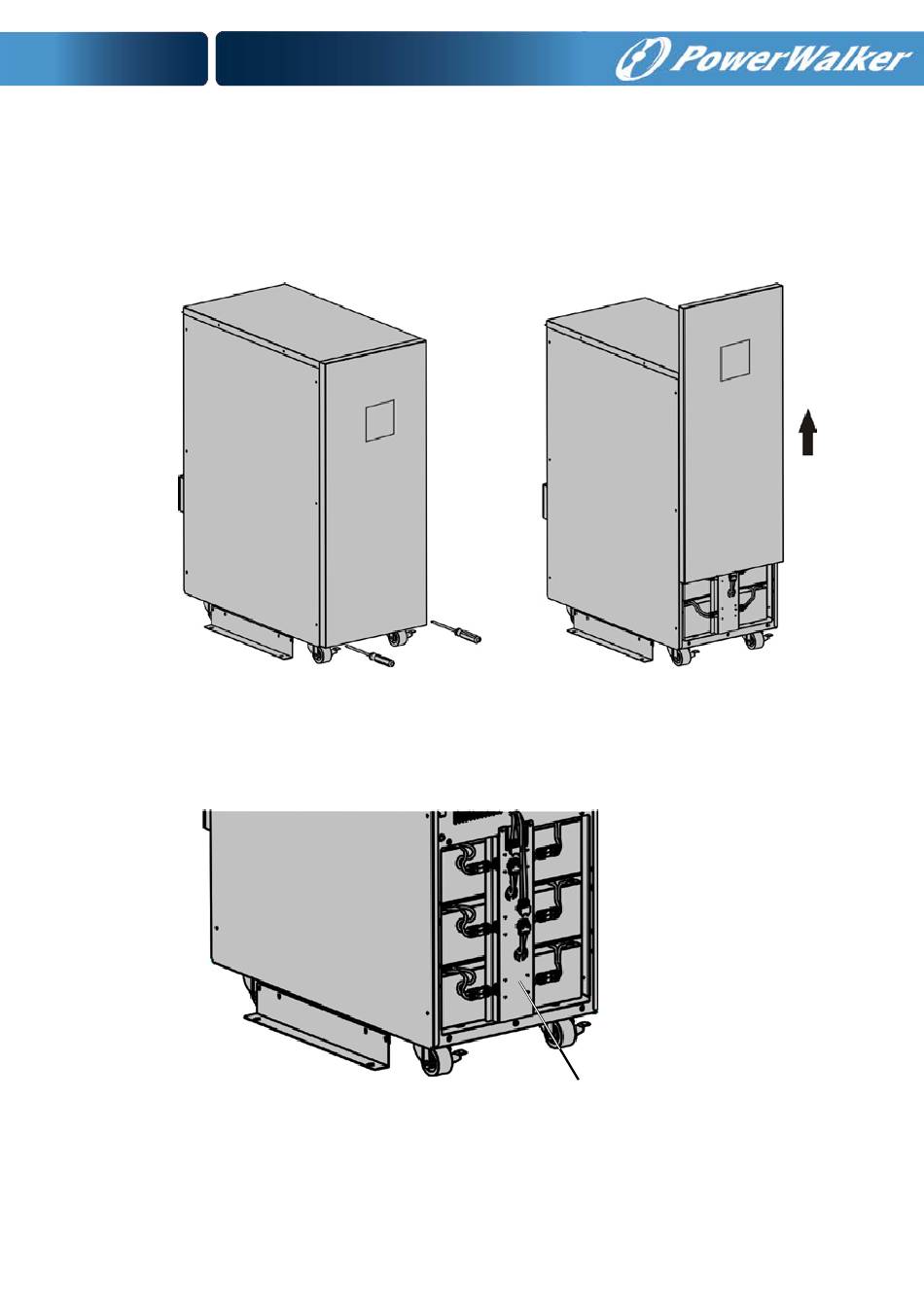

1) Remove the front panel and disconnect the connector on the LCD
display board. See Fig. 8-1.
Fig. 8-1 Easy for Battery Replacement -Step 1
2) Disconnect the battery pack DC connectors and remove the
battery fixed plate. See Fig. 8-2.
Fig. 8-2 Easy for Battery Replacement -Step 2
battery fixed plate
58
