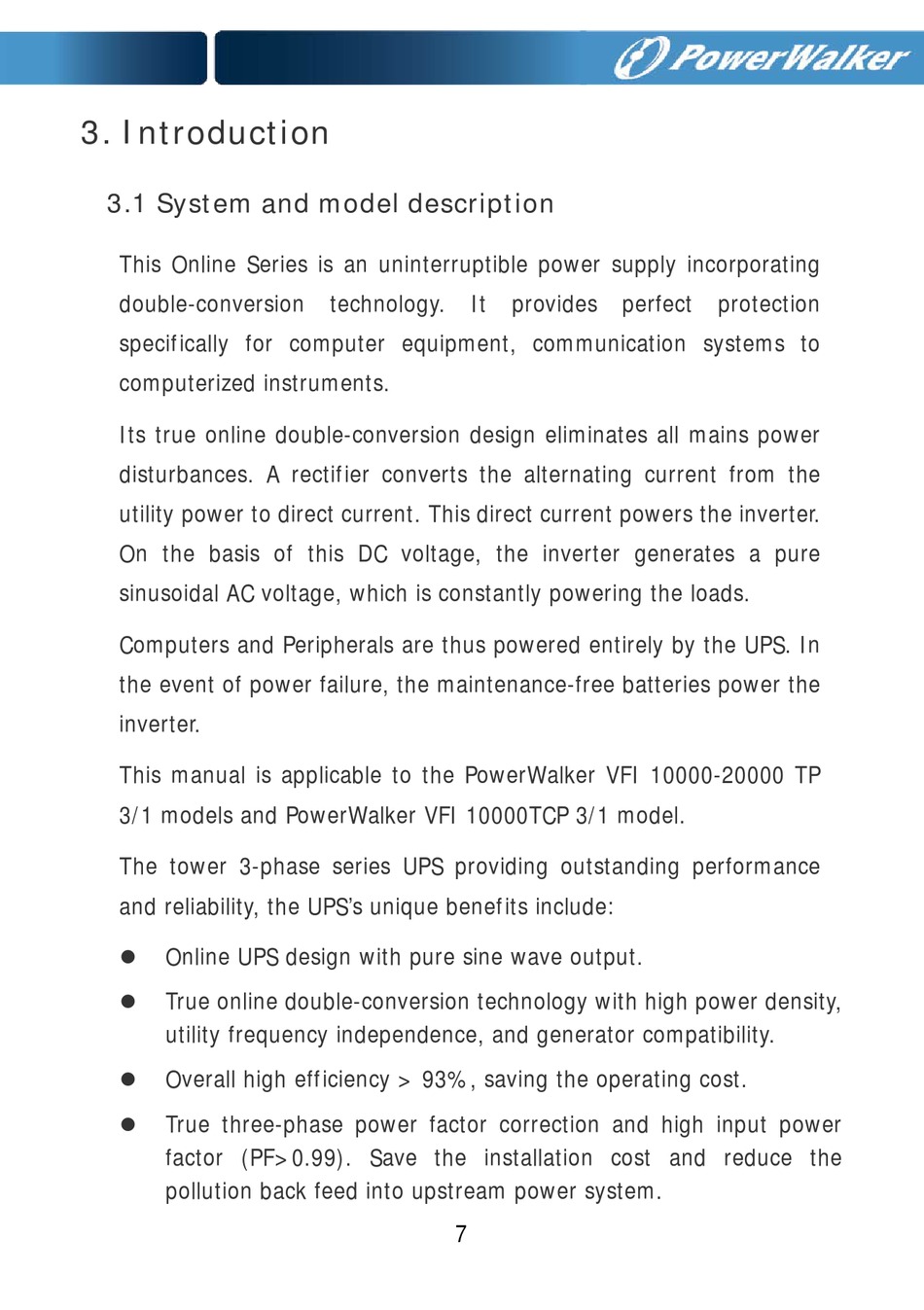

3. Introduction

3.1 System and model description

This Online Series is an uninterruptible power supply incorporating
double-conversion
specifically for computer equipment, communication systems to
computerized instruments.
Its true online double-conversion design eliminates all mains power
disturbances. A rectifier converts the alternating current from the
utility power to direct current. This direct current powers the inverter.
On the basis of this DC voltage, the inverter generates a pure
sinusoidal AC voltage, which is constantly powering the loads.
Computers and Peripherals are thus powered entirely by the UPS. In
the event of power failure, the maintenance-free batteries power the
inverter.
This manual is applicable to the PowerWalker VFI 10000-20000 TP
3/1 models and PowerWalker VFI 10000TCP 3/1 model.
The tower 3-phase series UPS providing outstanding performance
and reliability, the UPS's unique benefits include:
Online UPS design with pure sine wave output.

True online double-conversion technology with high power density,

utility frequency independence, and generator compatibility.
Overall high efficiency > 93%, saving the operating cost.

True three-phase power factor correction and high input power

factor (PF>0.99). Save the installation cost and reduce the
pollution back feed into upstream power system.
technology. It
7
provides perfect protection
