ENGLISH

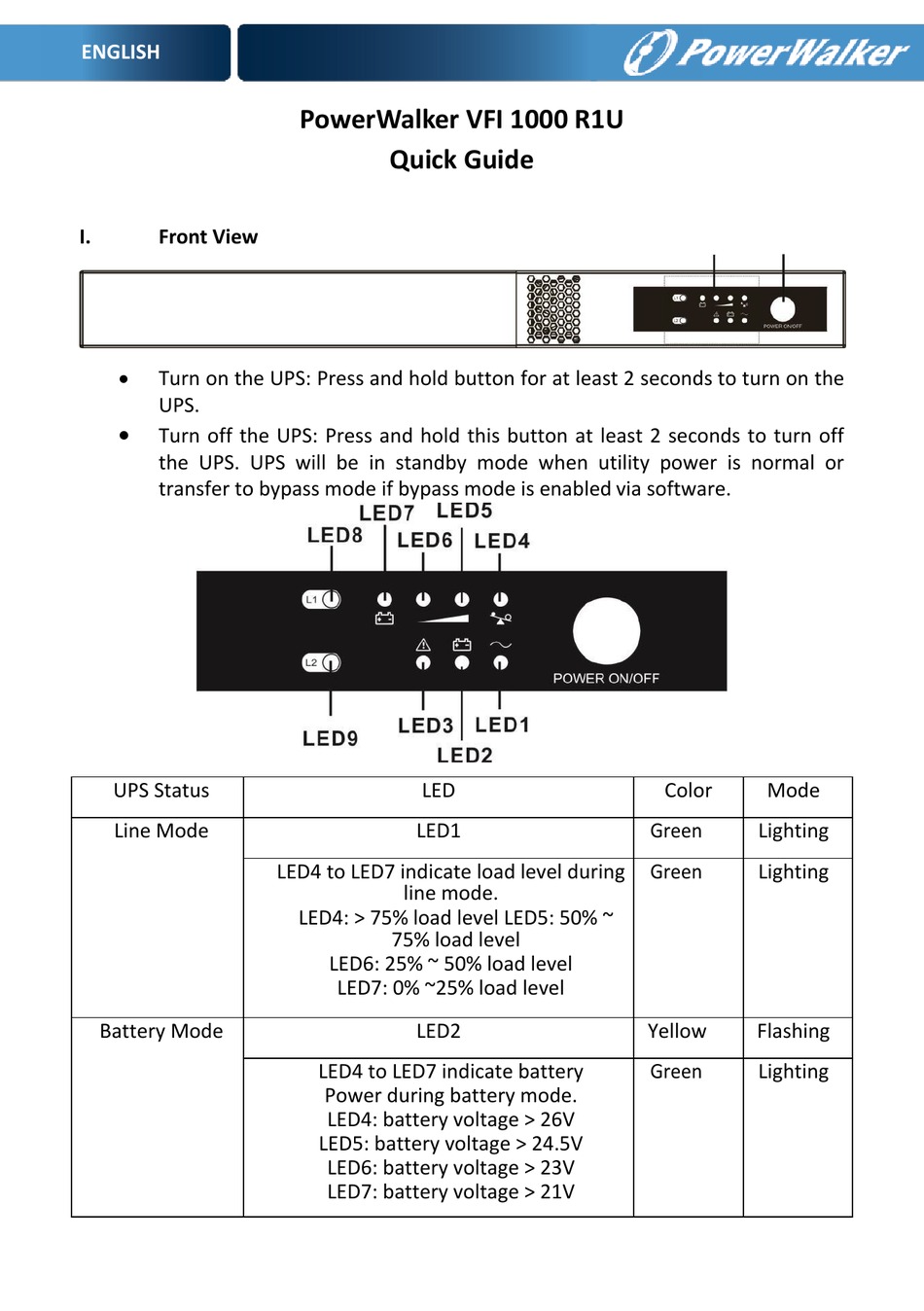

I.
Front View
Turn on the UPS: Press and hold button for at least 2 seconds to turn on the
UPS.
Turn off the UPS: Press and hold this button at least 2 seconds to turn off
the UPS. UPS will be in standby mode when utility power is normal or
transfer to bypass mode if bypass mode is enabled via software.
UPS Status
Line Mode
Battery Mode
PowerWalker VFI 1000 R1U
Quick Guide
LED
LED1
LED4 to LED7 indicate load level during
line mode.
LED4: > 75% load level LED5: 50% ~
75% load level
LED6: 25% ~ 50% load level
LED7: 0% ~25% load level
LED2
LED4 to LED7 indicate battery
Power during battery mode.
LED4: battery voltage > 26V
LED5: battery voltage > 24.5V
LED6: battery voltage > 23V
LED7: battery voltage > 21V
Color
Mode
Green
Lighting
Green
Lighting
Yellow
Flashing
Green
Lighting
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PowerWalker VFI 1000 R1U
Summary of Contents for PowerWalker VFI 1000 R1U
- Page 1 ENGLISH PowerWalker VFI 1000 R1U Quick Guide Front View Turn on the UPS: Press and hold button for at least 2 seconds to turn on the UPS. Turn off the UPS: Press and hold this button at least 2 seconds to turn off the UPS.
- Page 2 ENGLISH Low battery LED7 Green Flashing Battery LED3 Flashing replacement Fault LED3 Lighting Rear panel view AC input Output receptacle: connect to mission-critical loads. Programmable outlets: connect to non-critical loads USB/RS-232 serial communication port ROO/RPO function connector SNMP intelligent slot Dry contact External battery connector III.
- Page 3 ENGLISH Contact open: UPS shuts down and Fault LED (3) will be ON. To return to normal operation, de-activate external remote contact (Fault LED (3) will be OFF) and restart the UPS by pressing button. Audible Alarm Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload...
- Page 4 ENGLISH Technical Specification MODEL VFI 1000 R1U POWER 1000 VA / 800 W INPUT 160VAC/140VAC/120VAC/110VAC ± 5% Low Line Transfer ( based on load percentage) Voltage 170VAC/150VAC/130VAC/120VAC ± 5% Range Low Line Comeback ( based on load percentage) High Line Transfer 300 VAC ±...
