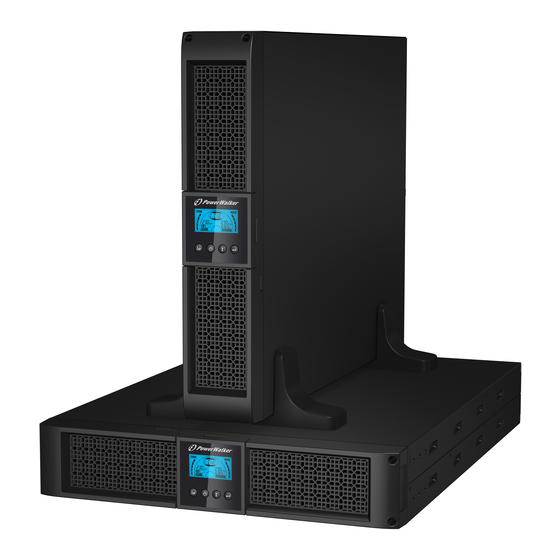

Summary of Contents for PowerWalker VI RT HID Series

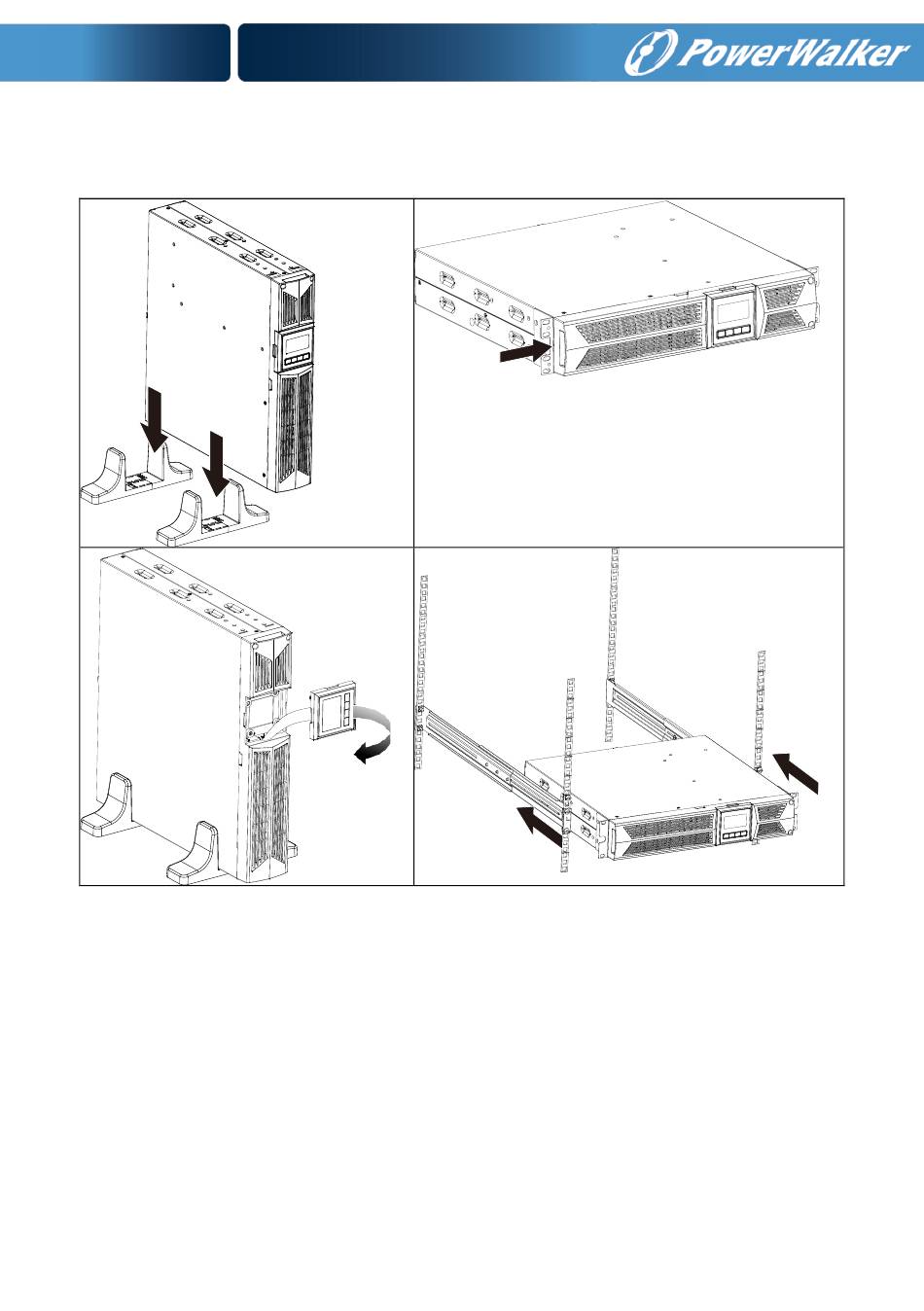

- Page 1 ENGLISH Assembly of VI/VFI RT HID Series Installing the UPS...
- Page 2 ENGLISH Connecting the EBM in Tower form: 1. Slide down the UPS and EBM vertically and place two UPS stands with the extend part at the end of the tower. 2. Tighten the screw on the metal 3. Connect the Earth line from UPS sheet for stabilization (port A ) to EBM (port B) 4.
- Page 3 ENGLISH III. Connecting the EBM in a rack form 1. Using the same method as assembling 2. Connect the earth line from UPS (port UPS in a rack form, assemble EBM into A ) to EBM (port B ) the rack-mounting on the top or bottom of the UPS.
- Page 4 ENGLISH make sure the load equipment is turned off before plugging all loads into the output receptacle. Connecting the Multiple EBMs 1000VA/1500VA/2000VA and 3000VA UPS include external battery port that allows users to connect multiple EBM in order to provide additional backup time. Follow the procedure to install multiple EBM as below.
- Page 5 ENGLISH Take off the front panel, and connect the battery terminal (A) from UPS to EBM terminal (B) shown as below. And then connect the battery terminal (D) from the first EBM to the battery terminal (E) from the second EBM. Users need to remove the small gate(C) on side of the front panel to allow the outlet wire of the EBM to pass through the gate and then reassemble front panel.
- Page 6 ENGLISH 3. Disconnect the cable from the UPS and 4. Remove the right inner battery bracket. battery pack. 5. Pull the battery pack out onto flat area. 7. Screw up the battery bracket and reconnect the battery cable A and B 6.
