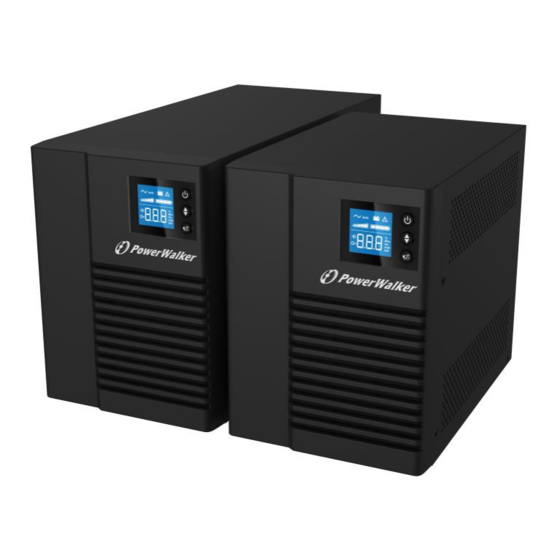

Line Interactive UPS
PowerWalker VI 500T/HID
PowerWalker VI 750T/HID
PowerWalker VI 1000T/HID
PowerWalker VI 1500T/HID
Quick Start Guide
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VI 500T/HID and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerWalker VI 500T/HID

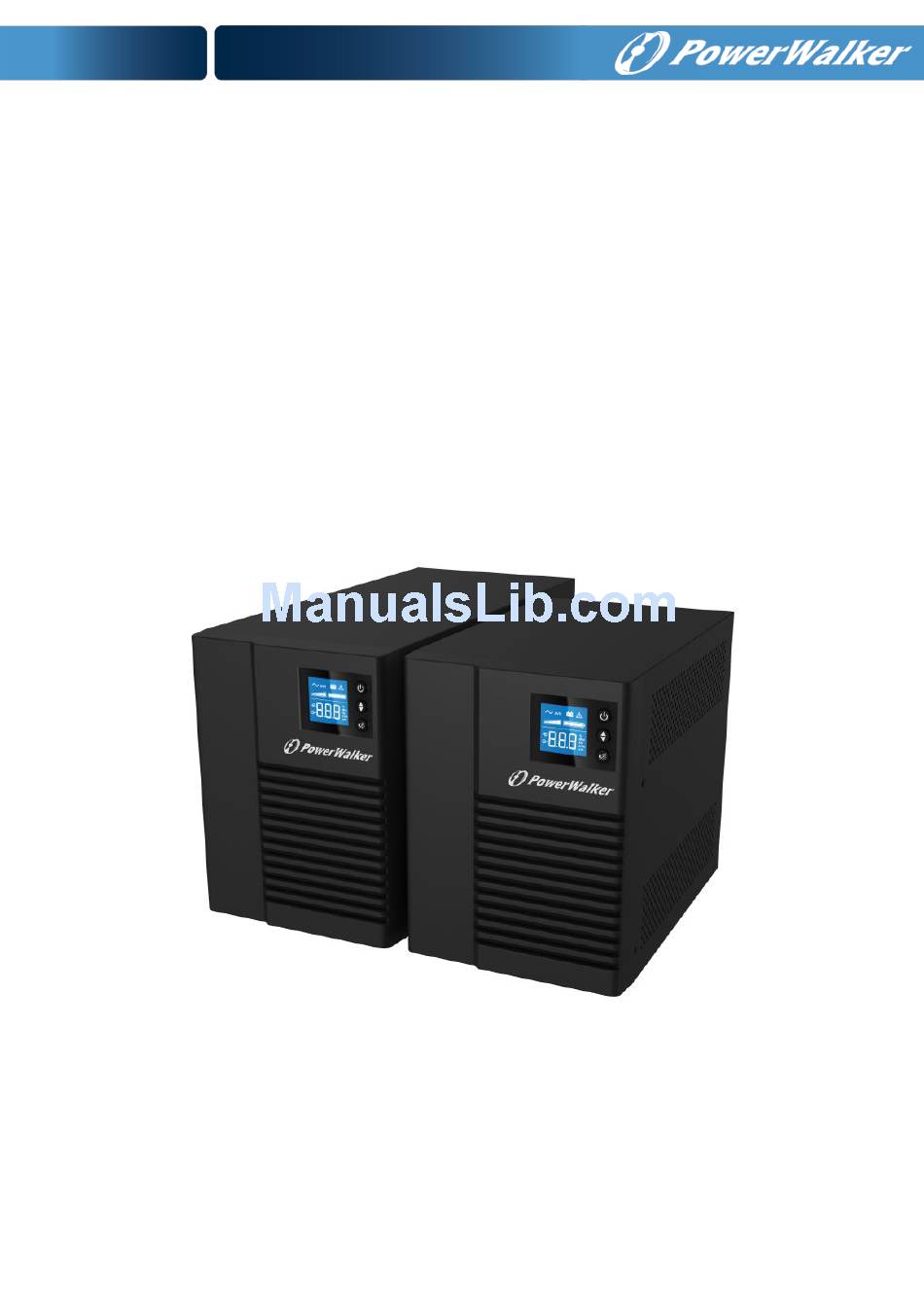

  • Page 1 Line Interactive UPS PowerWalker VI 500T/HID PowerWalker VI 750T/HID PowerWalker VI 1000T/HID PowerWalker VI 1500T/HID Quick Start Guide...
  • Page 3: Table Of Contents

    CONTENT IMPORTANT SAFETY INSTRUCTIONS ............1 1. Introduction ....................4 2. Description of Features ................4 3. Package Contents ..................4 4. Product Overview ..................5 5. Installation and Initial Startup ..............7 6. Functions & Operation ................10 7. Software Installation on your PC ............11 8.
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual contains important instructions for models PowerWalker VI 500T/HID, 750T/HID, 1000T/HID, 1500T/HID that should be followed during installation and maintenance of the UPS and batteries.  This product is specially designed for PCs and it is not recommended for use in any medical equipment, life-supporting system and other specific important equipment.
  • Page 6  The internal short circuiting of the UPS will lead to dangers such as electric shock or fire; therefore do not allow liquids or any foreign object to enter the UPS. No water containers (such as a water glass) or any other liquid-containing vessels shall be placed on the top of the UPS so as to avoid such dangers as electric shock.
  • Page 7  Do not dispose of battery or batteries in a fire. The battery may explode.  Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.  Icon Φ on the rating label stands for phase symbol. ...
  • Page 8: Introduction

    1. Introduction PowerWalker VI series is an intelligent and compact line interactive UPS (Uninterruptable Power Supply) which is designed to protect your personal computer or sensitive electronic equipments from all forms of power interference, including complete power failures. It is equipped with many features that allow any attached equipment to operate longer and more reliability.
  • Page 9: Product Overview

    4. Product Overview I: Front Panel:  ON/OFF button  Scroll down button  Mute button  LCD display II: Rear Panel: VI 500T/750T VI 1000T/1500T   AC input AC input   RJ11/RJ45 LAN/Modem/phone RJ11/RJ45 LAN/Modem/phone line protection line protection ...
  • Page 10 III: LCD description:  UPS ON  AVR mode  Battery mode  Internal fault  Output load level  Battery level  Input measurements  Output measurements  Measuring unit IV: UPS setting through the LCD: Release scroll down button to select menu Example of setting Save the new value ...
  • Page 11: Installation And Initial Startup

    5. Installation and Initial Startup Before installation, please inspect the unit. Be sure that nothing is damaged. I: Placement & Storage Conditions Install the UPS in a protected area that is free of excessive dust and has adequate air flow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants.
  • Page 12 III: Connect the Loads Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power switch of UPS unit, and devices connected to the UPS will be protected by UPS unit. Do not attach a power strip or surge suppressor to the UPS. IV: Connect LAN cable, Modem or Phone line for Surge Protection Connect for example a single modem or phone line into surge-protected “IN”...
  • Page 13 NEVER connect a laser printer or scanner to the UPS unit, because in-rush current generated by motor’s devices may cause the damage of the unit. VI: Turn On/Off the Unit Turn on the UPS unit by pressing the On/Off button. Turn off the UPS unit by pressing again the On/Off button.
  • Page 14: Functions & Operation

    6. Functions & Operation I: DC Start Function DC Start Function enables UPS to be started up when AC utility power is not available and battery is fully charged. Just simply press the power switch to turn on the UPS. II: Green Power Function These series are equipped with Green Power Function for saving power and protecting battery.
  • Page 15: Software Installation On Your Pc

    Double-click the icon to use the monitoring software (as above).  You can schedule UPS shutdown/start-up and monitor UPS status through PC.  Detail instructions please refer to the e-manual in the software. Check www.powerwalker.com/winpower.html from time to time to get the latest version of monitoring software.
  • Page 16: Maintenance

    8. Maintenance I. General The UPS is virtually maintenance free: take care of proper environmental conditions and keep air inlets-outlets free of dust. II. Fuses If the AC input fuse is defect, be sure it is replaced by a compatible fuse from the same make and type.
  • Page 17 C - Remove the metal protection cover in front of the battery (one screw). D - Pull the plastic tab to remove the battery block and replace it. Mounting the new battery module Carry out the above instructions in reverse order. ...
  • Page 18: Trouble Shooting

    9. Trouble Shooting Symptom Possible Cause Remedy 1. Battery isn’t connected. No LCD 1. Reconnect battery. display on the 2. Battery defect. 2. Replace with the same type of front panel. battery. 3. On/Off button is not 3. Press the On/Off button again. pressed.
  • Page 19: Specifications

    10. Specifications Complete Series Model 500T/HID 750T/HID 1000T/HID 1500T/HID INPUT Voltage 220/230/240 VAC Voltage Range 184~276 VAC OUTPUT Voltage 220/230/240 VAC Voltage Regulation -10%/+6% of nominal voltage range(Line mode) Frequency Range 50/60Hz Frequency Regulation ±1Hz (Battery mode) Transfer Time Typical 3-7ms,10ms max Waveform Pure Sine Wave PROTECTION...
  • Page 20 614-01858-00...
